707-99-56690 Blade Lift Cylinder Seal Kit D375A-5D Komatsu Hydraulic Service Kits
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 707-99-56690 KOMATSU D375A-5D |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
| Supply Ability | 3000 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | 707-99-56690 | Product Name | Komatsu Blade Lift Cylinder Seal Kit |
|---|---|---|---|
| Uses | Good Oil Resistance, Wear Resistance, And Corrosion Resistance | Condition | 100% New |
| Preservation Notice | Closed, Dry And Avoid The Sun | Warranty | Unavailable |
| High Light | KOMATSU Seal Kit,707-99-56690 Blade Lift Cylinder Seal Kit,D375A-5D Hydraulic Service Kits |
||
Product Description

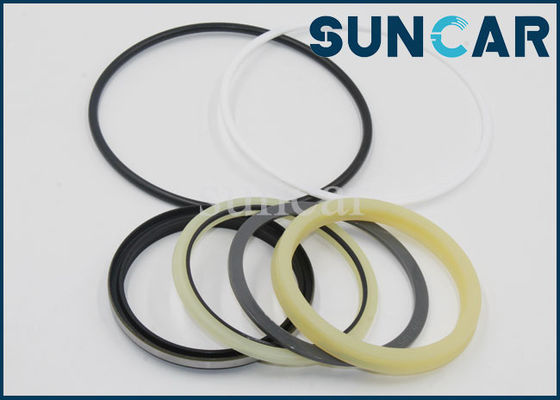

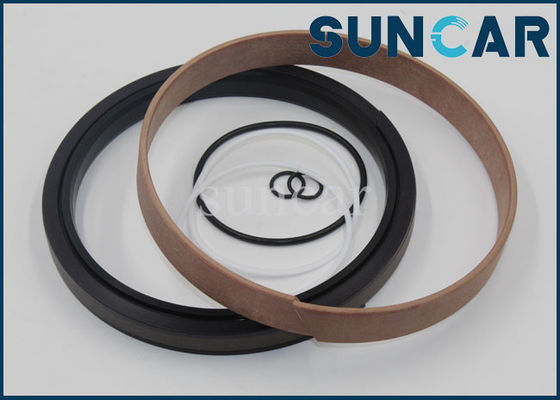

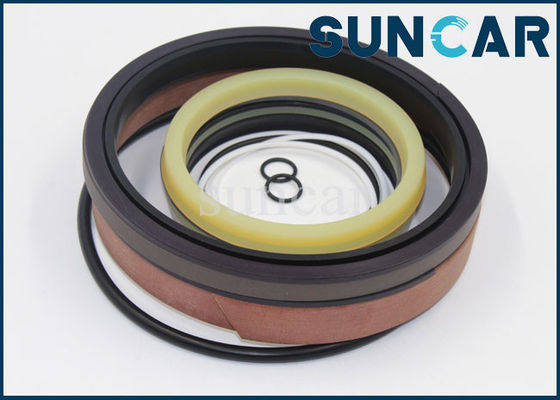

707-99-56690 Blade Lift Cylinder Seal Kit D375A-5D Komatsu Hydraulic Service Kits
| Product Name | Komatsu Blade Lift Cylinder Seal Kit |
| Model Number | KOMATSU D375A-5D |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-99-56690 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Uses | Good oil resistance, wear resistance, and corrosion resistance |
| High Light | Hydraulic seal kits, cylinder seal kit |
Basic Requirements for Sealing Materials:
The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Guarantee:
If you find any quality problems when the goods arrive, please contact us. If this is indeed our responsibility, we will resend the same parts for you free of charge in the next batch of orders. We hope to cooperate with you for a long time. With careful consideration, we can help you win a good reputation from consumers in terms of quality, delivery speed, packaging, etc.

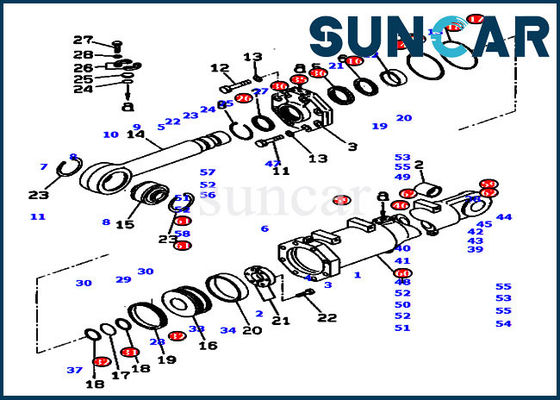

Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| G1 | 707-03-X7201 | CYLINDER G.,D375A-5D,L.H. (FINAL COATING) | 1 |
| G2 | 707-03-X7211 | CYLINDER G.,D375A-5D,R.H. (FINAL COATING) | 1 |
| 195-63-08212 | CYLINDER ASSEMBLY | 1 | |
| 1 | 707-12-15090 | • CYLINDER | 1 |
| 2 | 195-63-13491 | • HOOK | 1 |
| 3 | 01010-81670 | • BOLT | 1 |
| 4 | 01643-31645 | • WASHER | 1 |
| 5 | 707-60-90320 | • ROD,PISTON | 1 |
| 6 | 195-63-13390 | • BUSHING | 2 |
| 7 | 195-63-22171 | • CAP | 1 |
| 8 | 195-63-22272 | • SHIM, 1.0MM | 10 |
| 9 | 01011-82475 | • BOLT | 4 |
| 10 | 01643-32460 | • WASHER | 4 |
| 11 | 01580-12419 | • NUT | 4 |
| 12 | 707-27-15820 | • HEAD,CYLINDER | 1 |
| 13 | 707-52-90651 | • BUSHING | 1 |
| 14 | 707-51-90730 | • U-PACKING,ROD (KIT) | 1 |
| 15 | 707-51-90640 | • RING (KIT) | 1 |
| 16 | 707-56-90740 | • SEAL,DUST (KIT) | 1 |
| 17 | 07000-52145 | • O-RING (KIT) | 1 |
| 18 | 07146-02146 | • RING,BACK-UP (KIT) | 1 |
| 19 | 01010-82785 | • BOLT | 4 |
| 20 | 01643-32780 | • WASHER | 4 |
| 21 | 707-75-90110 | • RING,SNAP | 1 |
| 22 | 01010-80840 | • BOLT | 8 |
| 23 | 01643-50823 | • WASHER | 8 |
| 24 | 707-88-03912 | • PLATE | 1 |
| 25 | 707-88-03921 | • RING | 1 |
| 26 | 707-56-90820 | • SEAL,DUST (KIT) | 1 |
| 27 | 707-88-03932 | • COLLAR | 1 |
| 195-63-22480 | • PISTON ASSEMBLY | 1 | |
| 28 | •• PISTON | 1 | |
| 29 | •• VALVE,L=78.5MM | 2 | |
| 29 | •• VALVE,L=72.5MM | 2 | |
| 30 | •• SEAT | 8 | |
| 31 | 707-44-15180 | • RING,PISTON (KIT) | 1 |
| 32 | 707-39-15820 | • RING,WEAR (KIT) | 2 |
| 33 | 707-40-15060 | • SPACER | 2 |
| 34 | 01252-61035 | • BOLT | 6 |
| 35 | 07000-52055 | • O-RING (KIT) | 1 |
| 36 | 07001-02055 | • RING,BACK-UP (KIT) | 2 |
| 37 | 707-40-15050 | • RETAINER | 1 |
| 195-63-14300 | • VALVE ASSEMBLY,QUICK DROP | 1 | |
| 38 | •• BODY | 1 | |
| 39 | •• VALVE | 1 | |
| 40 | •• VALVE | 1 | |
| 41 | 195-63-14163 | •• COLLAR | 1 |
| 42 | 195-63-14180 | •• SPRING | 1 |
| 43 | 01642-21216 | •• WASHER | 1 |
| 44 | 01011-81615 | • BOLT | 2 |
| 45 | 01643-31645 | • WASHER | 2 |
| 46 | 07000-52055 | • O-RING (KIT) | 1 |
| 47 | 707-86-16340 | TUBE,L.H. | 1 |
| 47 | 707-86-16360 | TUBE,R.H. | 1 |
| 48 | 195-63-14130 | ELBOW | 1 |
| 49 | 707-86-16350 | TUBE,L.H. | 1 |
| 49 | 707-86-16370 | TUBE,R.H. | 1 |
| 50 | 01010-81065 | BOLT | 2 |
| 51 | 01010-81075 | BOLT | 6 |
| 52 | 01643-31032 | WASHER | 10 |
| 53 | 01010-81270 | BOLT | 7 |
| 54 | 01010-81280 | BOLT | 2 |
| 55 | 01643-31232 | WASHER | 9 |
| 56 | 07282-03411 | CLAMP | 1 |
| 57 | 01010-81020 | BOLT | 2 |
| 58 | 195-61-51410 | PLATE | 1 |
| 59 | 07000-53045 | O-RING (KIT) | 2 |
| 60 | 07000-53048 | O-RING (KIT) | 1 |
| 61 | 07000-53035 | O-RING (KIT) | 2 |
| 62 | 07000-53038 | O-RING (KIT) | 2 |
| 707-99-56690 | SERVICE KIT | 2 |
Welcome to contact us, we can provide the high quality and best price!
