707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement

  • 707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement
  • 707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement
  • 707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement
  • 707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement
Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number 707-99-44220 KOMATSU PC100 PC100L PC120 PC128US PC130 PC138US PC150LGP PC158US
CertifiC.A.Tion ISO9001
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability 3000 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number 707-99-44220 Warranty Unavailable
Condition 100% New Quality Original Quality, High Performance
Material Rubber,PTFE,NBR,PU After-sales Service Provided Online Support
High Light

KOMATSU Seal Kit

,

Arm Cylinder Sealing Kit

,

707-99-44220 Cylinder Service Kit
Leave a Message
Product Description



707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement



707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement
Model No. KOMATSU PC100 PC100L PC120 PC128US PC130 PC138US PC150LGP PC158US Packing PP bag,Carton,Wooden case or as Required
Material Rubber,PTFE,NBR,PU MOQ 1pcs
Size Standard size or custom size Brand SUNCAR
Hardness 70degree~95degree Temperature -35~220℃
Pressure 0~0.05Mpa Feature Oil-resistant, heat resistant,Durable
Color Black Brown Bule yellow and more Loading Port Huangpu port in China
AppliC.A.Tion Excavator seal kit Payment terms T/T, Western union, paypal,
trade assurance or as require
CertifiC.A.Tes ISO9001 Delivery time Within 3-5 days
Warranty Unavailable Shipment By sea, by air, by express or as required



Advantages:
1.Excellent performance of sliding ,no crawling effect
2.Good dynamic and static sealing
3.High abrasion,long service life
4.Wide using temperature range,high chemical stability(It depends on the material of O-ring)
5.Simple and convenient installation O-Rings: NBR



Related Parts:

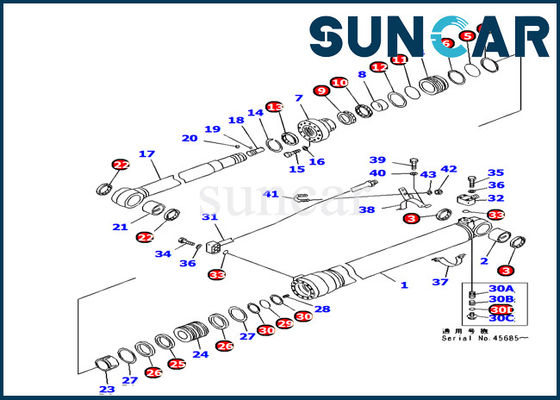

Pos. Part No Qty Parts name Comments
G1. 202-63-X9070 [1] CYLINDER GROUP
G1. 202-63-X7721 [1] CYLINDER GROUP,ARM
G1. 202-63-X7720 [1] CYLINDER GROUP,ARM
  202-63-07721 [1] CYLINDER ASSEMBLY,ARM
  202-63-07720 [1] CYLINDER ASSEMBLY,ARM
1. 202-63-65141 [1] CYLINDER,ARM
1. 202-63-65140 [1] CYLINDER,ARM
2. 203-70-66130 [1] BUSHING
3. 07145-00070 [2] SEAL,DUST (KIT) 0.034 kg.
4. 707-71-32530 [1] COLLAR
5. 07000-15105 [1] O-RING (KIT) 0.01 kg.
6. 707-35-91150 [2] RING,BACK-UP (KIT)
7. 707-27-11971 [1] HEAD,CYLINDER
8. 707-52-90500 [1] BUSHING 0.14 kg.
9. 707-51-75030 [1] PACKING,ROD (KIT) 0.035 kg.
10. 707-51-75630 [1] RING,BUFFER (KIT) 0.01 kg.
13. 144-63-94170 [1] SEAL,DUST (KIT) 0.05 kg.
14. 07179-13089 [1] RING,SNAP 0.019 kg.
15. 01010-81670 [12] BOLT 0.142 kg.
16. 01643-51645 [12] WASHER 0.021 kg.
17. 202-63-65120 [1] ROD
18. 707-71-60200 [1] PLUNGER 0.24 kg.
19. 04260-00635 [11] BALL 0.012 kg.
20. 707-71-91270 [1] CAP 0.001 kg.
23. 707-71-60870 [1] PLUNGER
24. 707-36-11661 [1] PISTON
25. 707-44-11280 [1] RING,PISTON (KIT) 0.045 kg.
26. 707-39-11510 [2] RING,WEAR (KIT) 0.028 kg.
27. 707-44-11920 [2] RING 0.051 kg.
28. 01310-01216 [1] SCREW 0.02 kg.
29. 07000-15070 [1] O-RING (KIT) 0.029 kg.
30. 707-35-90360 [2] RING,BACK-UP (KIT) 0.05 kg.
30A. 707-83-13010 [1] VALVE 0.021 kg.
30B. 07750-01628 [1] SPRING 0.002 kg.
30C. 707-87-14070 [1] PLUG 0.07 kg.
30D. 07002-12034 [1] O-RING (KIT) 0.94 kg.
31 202-63-65170 [1] TUBE
32 707-87-13570 [1] ELBOW
33 07000-13025 [2] O-RING (KIT) 0.001 kg.
34 01010-80850 [4] BOLT 0.025 kg.
35 01010-80855 [4] BOLT 0.027 kg.
36 01643-50823 [8] WASHER 0.01 kg.
37 707-88-95360 [1] BAND
38 707-88-95510 [1] BRACKET
39 01010-81035 [2] BOLT 0.033 kg.
40 01643-51032 [2] WASHER 0.17 kg.
41 07283-22236 [1] CLIP 0.076 kg.
42 01599-01011 [2] NUT 0.016 kg.
43 01643-31032 [2] WASHER 0.054 kg.
  707-99-44230 [1] SERVICE KIT 0.421 kg.
  707-99-44220 [1] SERVICE KIT 0.413 kg.

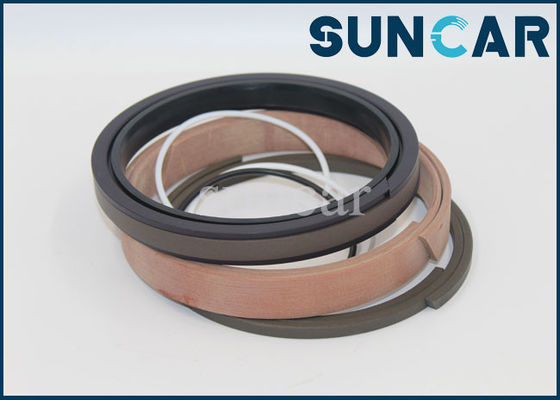

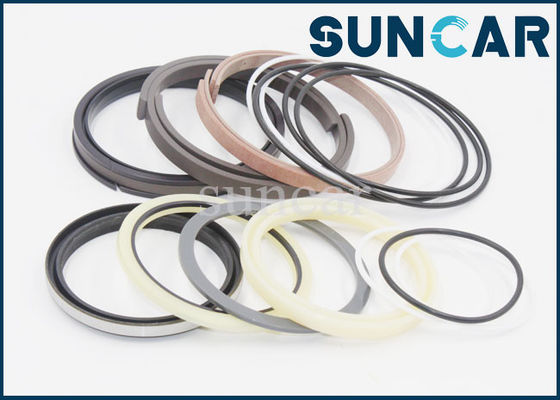

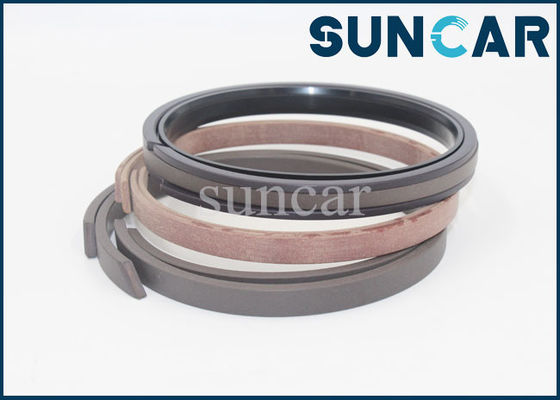

Product Show:

707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement 0

707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement 1

707-99-44220 Arm Cylinder Sealing Kit Komatsu PC138 PC158 Cylinder Service Kit Replacement 2





If you unsure whether this is correct for your machine, please contact us. This product is available to ship worldwide

We have professional product design capability. We develop the most competitive products in the market to our customers for choices.

We will provide professional and efficient service, any questions about product service, please contact us directly, we will reply you within 24 hours.
