Hydraulic Cylinder Seal Kit

PC1100-6 Backhoe inner repair kit Komatsu 707-99-89220 Arm Hydraulic Cylinder Seal Kit

All Category

Piston Seals And Piston Rod Seals

Main Valve Seal Kit

Miss. Alina

Alina@suncarseals.com

86-14749308310

Contact Now

PC1100-6 Backhoe inner repair kit Komatsu 707-99-89220 Arm Hydraulic Cylinder Seal Kit

Brand Name:	SUNCAR
Model Number:	707-99-89220 KOMATSU PC1100 PC1100SE PC1100SP PC1250 PC1250SE PC1250SP
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Part Number:

707-99-89220

Product Name:

Komatsu Hydraulic Cylinder Seal Kit

Uses:

Good Oil Resistance, Wear Resistance, And Corrosion Resistance

Material:

Rubber,PTFE,NBR,PU

Standard Or Nonstandard:

Standard

Stock:

In Stock

Supply Ability:

3000 set per month

Highlight:

KOMATSU Seal Kit

Backhoe inner repair kit

Arm Hydraulic Cylinder Seal Kit

Product Description

PC1100-6 Backhoe Inner Repair Kit Komatsu 707-99-89220 Arm Hydraulic Cylinder Seal Kit

Product Name	PC1100-6 Backhoe Inner Repair Kit Komatsu 707-99-89220 Arm Hydraulic Cylinder Seal Kit
Part No.	Kom- 707-99-89220
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature	Resistance to high pressure, oil, weather, abrasion, solvent
Hardness	70-90 Shore A
Color	Black, White or other
Size	Standard Size
MOQ	We accept trial order
Packing	PP bag inside, carton box outside( According to your requirements)
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment	Western Union, L/C, T/T, , D/A, D/P etc.
Port	HUAGNPU,China (Mainland)
Express	Fedex,TNT,UPS,DHL
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Excavator&Backhoe Inner Systerm
Condition	100% Brand New

Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

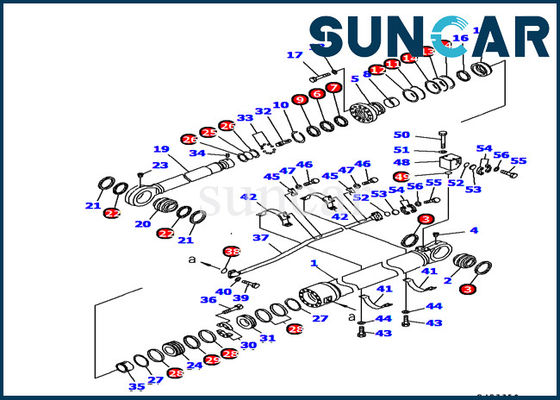

Related Parts:

Pos.	Part No	Qty	Parts name
G-1.	21N-63-X2322	[1]	CYLINDER GROUP
	21N-63-02322	[1]	CYLINDER ASSEMBLY
1.	21N-63-62341	[1]	CYLINDER
2.	707-76-16030	[1]	BUSHING
3.	707-77-16020	[2]	SEAL,DUST (KIT)
4.	07043-00108	[1]	PLUG
5.	707-28-25710	[1]	HEAD,CYLINDER
6.	707-51-17030	[1]	PACKING,ROD (KIT)
7.	707-51-17630	[1]	RING,BUFFER (KIT)
8.	707-52-91451	[1]	BUSHING
9.	707-56-17510	[1]	SEAL,DUST (KIT)
10.	07179-15190	[1]	RING,SNAP
11.	07000-15250	[1]	O-RING (KIT)
12.	707-35-92600	[1]	RING,BACK-UP (KIT)
14.	07001-05250	[2]	RING,BACK-UP (KIT)
15.	707-71-31830	[1]	COLLAR
16.	707-71-11850	[1]	RING
17.	01011-83330	[12]	BOLT
18.	01643-33380	[12]	WASHER
19.	21N-63-62321	[1]	ROD,PISTON
20.	707-46-16030	[1]	BUSHING
21.	707-46-16040	[2]	BUSHING
22.	707-77-16010	[2]	SEAL,DUST (KIT)
24.	707-36-25110	[1]	PISTON
25.	07000-15145	[1]	O-RING (KIT)
26.	707-35-91550	[2]	RING,BACK-UP (KIT)
27.	707-44-25910	[2]	RING
28.	707-39-25820	[4]	RING,WEAR (KIT)
29.	707-44-25180	[1]	RING,PISTON (KIT)
30.	707-40-28020	[2]	SPACER
32.	707-71-50400	[1]	PLUNGER
33.	04260-01270	[10]	BALL
34.	707-71-91390	[1]	PIN
35.	707-71-51852	[1]	PLUNGER
36.	01253-61630	[6]	BOLT
37	21N-63-62371	[1]	TUBE
38	07000-13048	[1]	O-RING (KIT)
39	01010-81450	[4]	BOLT
40	01643-31445	[4]	WASHER
41	21N-62-18430	[2]	BAND
42	21N-63-62390	[2]	BRACKET
43	01010-81240	[8]	BOLT
44	01643-31232	[8]	WASHER
45	176-61-41330	[2]	CLAMP
46	01010-81250	[4]	BOLT
48	21N-62-18450	[1]	BLOCK
49	07000-12060	[1]	O-RING (KIT)
50	01011-81890	[4]	BOLT
51	01643-31845	[4]	WASHER
53	07378-11410	[3]	HEAD
54	07371-51470	[6]	FLANGE
55	01010-81455	[12]	BOLT
K.	707-99-89220	[1]	SERVICE KIT

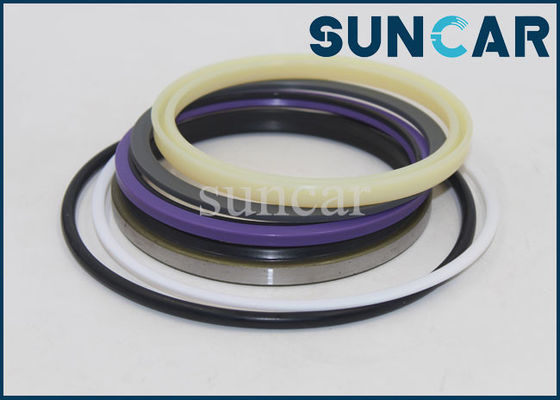

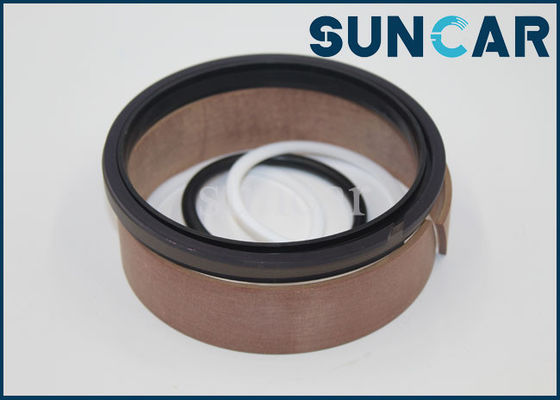

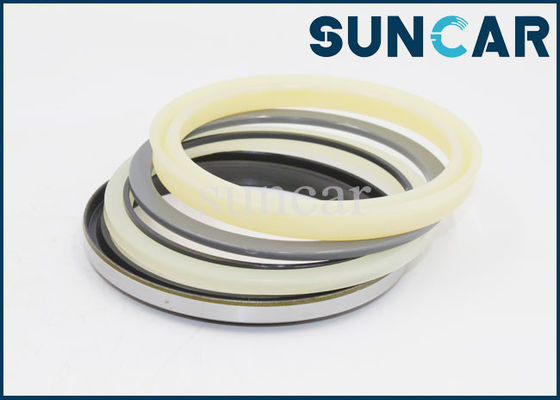

Product Show:

Company Profile:

Since the beginning of 2008, SUNCAR has put quality as our first duty. Thereupon product development has kept abreast with the world famous manufacturers.

With an enviable reputation within the sealing industry. SUNCAR products and service that provides are recognized as amongst the very best.

With over ten years experience in the manufacture of Seals for heavy equipments and the general industries, we are constantly upgrading our range of products and raw materials to enhance its, performance and life span.We believe the vitality of a company's efforts today is a gauge of its success tomorrow.
