TSE/AI Fabric Type Oil Seal Standard Size NBR Material Hydraulic Piston Rod Seal

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number TSE/AI
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 3000 set per month
Product Details
Product Name Hydraulic Piston Rod Seal---TSE/AI Pressure 40MPa
Speed 0.5 M/s Tempereture -30~+100°C
Hardness 30-90 Shore Customized OEM & ODM Are Welcomed
High Light

NBR Hydraulic Piston Rod Seals

,

40MPa Hydraulic Piston Rod Seal

Leave a Message
Product Description



TSE/AI Fabric Type Oil Seal Standard Size NBR Material Hydraulic Piston Rod Seal



Product Name Hydraulic Piston Rod Seal---TSE/AI
Model Number TSE/AI
Material NBR/FKM+TKANINA+POM
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Certification ISO9001
Condition 100% New
Warranty Unavailable
Customized OEM & ODM are welcomed
Pressure 40MPa
Tempereture -30~+110°C
Pressure 40MPa
Hardness 30-90 Shore
Speed 0.5 M/s
Size Standard



NBR Material Fabric TSE Type Oil Seal:

  • Fabric oil seals are special oil seals where the metal insert or jacket is replaced with a vulcanised layer of fabric. This makes them more flexible and easier to install and remove. Fabric oil seals cannot be placed in an open groove but must be enclosed. Fabric oil seals can be produced in versions with lubricating grooves for better distribution of lubrication for application in back-to-back arrangements.



Some Specification Of TSE Type Oil Seal:

10*18*6 32*42*11 50.8*66.67*11.5 90*102*9.6
12*19*6.5 28.57*41.27*10 54*67*8 85.72*104.77*14.8
14*22*6.5 35*43*6.5 60*68*12.5 85*105*14.8
14*22*7 35*43*10 60*69.5*7 90*105*9.5
15.87*22.22*5.25 35*43*6.5 57.15*69.85*10 90*105*12.5
14*23*7 36*43*6.5 50*70*14.5 95*105*11
12*23*7.5 36*43*6.5 55*70*10.5 90*106.2*10.8
15*23*6.3 25*44*12.5 60*70*8 95*107*12.5
16*23*7 32*44*11.5 60*70*13 98*107.5*7
16*24*6.4 36*44*6.5 60*70*11 88.9*107.95*12.7
16*24*7 30*45*9 56*71*10.5 90*110*12.5
16*24*7 32*45*10 56*71*12.5 90*110*14.5
18*26*6.5 35*45*13.5 60*72*10 95*110*13
18*26*7 35*45*10.5 55*75*14.5 95*112*12
20*27*6.5 35*45*8 60*75*13 100*113*13.5
20*27*6.5 36*46*8.5 60.5*75*14 95.25*114.3*13.5
18*28*6.3 36*48*9.5 63*75*11 100*115*12.5
18*28*10 36*48*11 65*75*13.5 100*115*11.5
20*28*6.3 40*48*6.5 65*75*8.5 105*115*11
20*28*7 40*48*9 56*76*14.5 100*120*12
18*30*7.5 30*50*14.5 57.15*76.2*10 100*120*14.5
20*30*8.5 35*50*11.5 65*77*9.6 104*120*11.2
22*30*6.5 38*50*9.5 60*80*14 105*120*12
22*30*7 40*50*8 65*80*11.5 105*125*12.5
24*32*7.5 40*50*10 65*80*12.5 106*116*8
25*32*7 40*50*11 68*79.4*10 110*125*12
25*33*6.4 40*50*13.5 70*80*13 100*125*13.3
25*33*6.5 40*52*11.5 70*80*8 115*125*8
22*34*9.5 42*57*10.5 70*82*9.6 110*130*12.5



Some Part Number Of  TSE Type Oil Seal:

070039/1 181141 283236 413374/AI
074047/A 181141/AI 283236/AI 418354
086055/A 188141 295216 421374
86055 188141/AI 295216/AI 421374/AI
87062 188141/1/AI 295236 423385
90055 188157 295236/AI 425350
090047/AI 188157/AI 295238/1 433354
90059 188157/1 295248/AI 433354/AI
90063 196118 295255 433354/1
094063/1 196137 295255/AI 433394
94063 196149 295255/1 441374/AI
094063/AI 196157/3 299220 444393
102070/A 196157/3-AI 299220/AI 444393/AI
102070 196157/1 300255 450375
106078 196157/1-AI 303255 452393/AI
106078/AI 196157 314236 452393/1
110070 196157/AI 314236/AI 452413
110070/1 196157/2 314255 452413/AI
110078/1 204157/AI 314255/AI 472393/1
110078 224165 314255/2/AI 472393/1/AI
118070 200137/2 312267 472393
118078 200148 314275 472393/AI
118086/AI 204177 314275/AI 472409
118086 208177 314275/1 472413
125094 208177/1/AI 314275/1/AI 492413
124098 216157/AI 322275/1 492413/AI
129098 216157/1 326248 457417
129098/AI 216157/1/AI 326248/AI 492433
133086/AI 216177 330275 492433/AI



Product Show:

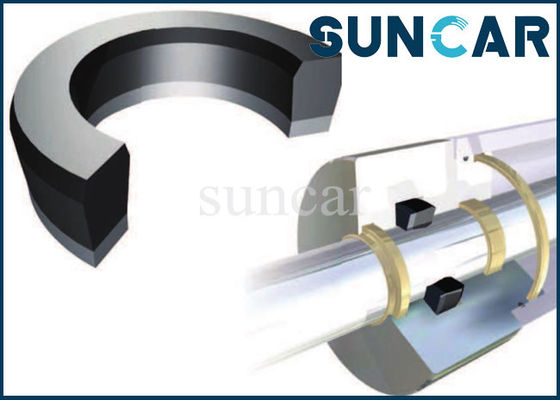

TSE/AI Fabric Type Oil Seal Standard Size NBR Material Hydraulic Piston Rod Seal 0

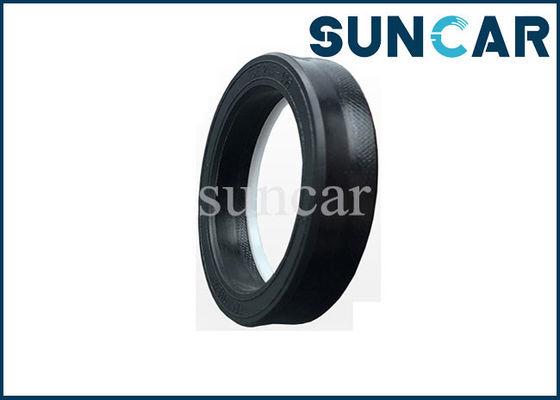

TSE/AI Fabric Type Oil Seal Standard Size NBR Material Hydraulic Piston Rod Seal 1

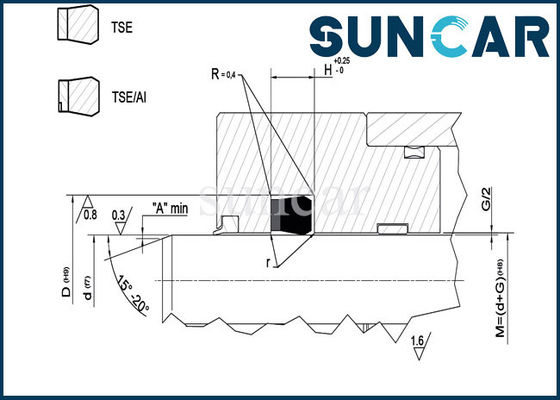

TSE/AI Fabric Type Oil Seal Standard Size NBR Material Hydraulic Piston Rod Seal 2
