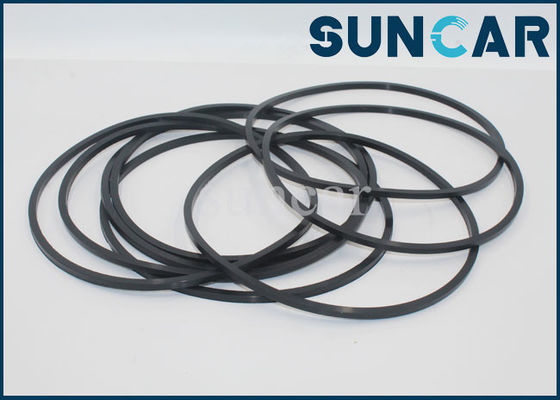

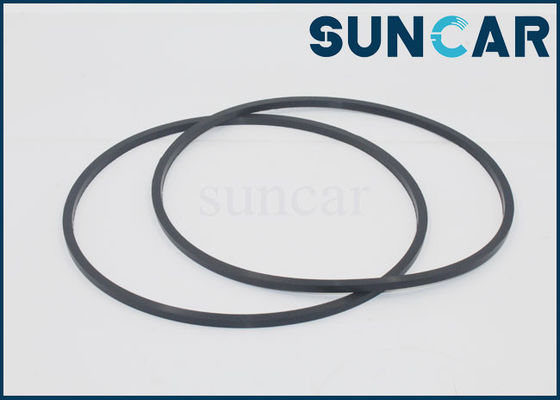

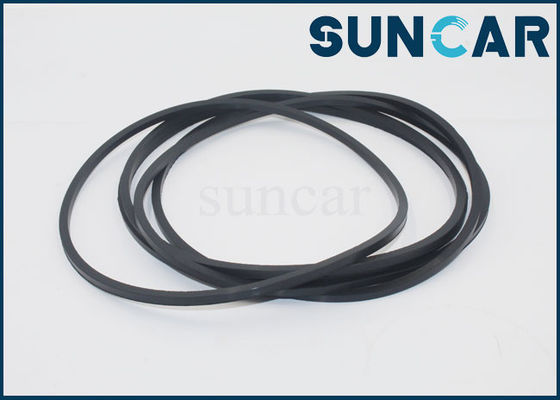

419-33-21710 Gearbox Front Axle Seal Ring For WA300-3A WA320-3 Komatsu Loader Seal

Place of Origin	CHINA(MAINLAND)
Brand Name	SUNCAR
Certification	ISO9001
Model Number	419-33-21710 KOMATSU WA300-3A, WA300L-3, WA320-3
Minimum Order Quantity	100 PCS
Price	Negotiation
Packaging Details	PP bag inside, carton box outside
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment Terms	Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability	1000 set per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Products Name	Gearbox Front Axle Seal Ring	Material	NBR
Part Number	419-33-21710	Position	Hydraulic Oil Seals
Condition	100% New	Application	Komatsu Loaders
High Light	419-33-21710 Front Axle Seal Ring , Seal Ring , WA320-3 Front Axle Seal Ring

Leave a Message

Product Description

419-33-21710 Gearbox Front Axle Seal Ring For WA300-3A WA320-3 Komatsu Loader Seal

Product Name	Gearbox Front Axle Seal Ring
Model Number	KOMATSU WA300-3A, WA300L-3, WA320-3, WA320L-5, WA320PT-5L, WA320PZ-6
Part Number	419-33-21710
Material	NBR
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
Certification	ISO9001
Condition	100% New
Warranty	Unavailable
Customized	OEM & ODM are welcomed
Size	Standard
Position	Hydraulic oil seals
Application	Komatsu loaders

Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

Recommend products:

Hydraulic Breaker Seal Kit

Regulator Valve Seal Kit

Excavator Hydraulic Parts

Loader Seal Kits

Floating Seal

Blade Lift/Tilt/Steering Cylinder Kit

Control Valve Seal Kit

Swing Motor Seal Kit

Crankshaft Rear Seal

Crankshaft Front Seal

(Main) Control Valve Seal Kit

Track Adjuster Seal Kit

Center Joint Seal Kit

Boom/Arm/Bucket Cylinder Seal Kit

Blade Cylinder Seal Kit

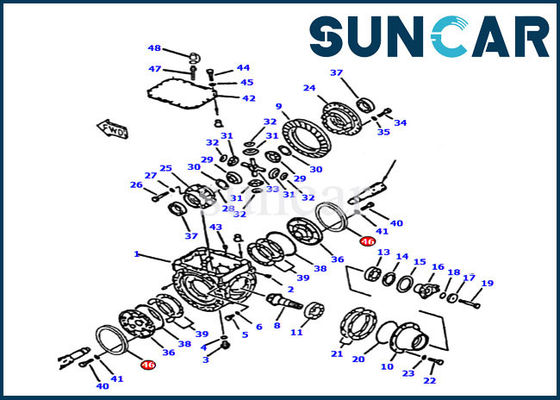

Related Parts:

Pos.	Part Number	Product Name	QTY.
	419-22-20013	AXLEASSEMBLY,FRONT THIS ASSEMBLY	1
	419-22-21021	• DIFF(F)ASSEMBLY	1
1	419-22-23610	•• HOUSING	2
2	07043-70211	•• PLUG	1
3	07044-13620	•• PLUG,DRAIN	1
4	07002-13634	•• O-RING	2
5	07040-12012	•• PLUG	2
6	07002-12034	•• O-RING. (FOR SHIPPING)	4
	419-22-21800	•• PINION ASSEMBLY,GEAR	1
8	429-22-21611	••• PINION	1
9	419-22-21820	••• GEAR,BEVEL	1
10	419-22-21631	•• CAGE	1
11	419-22-11810	•• BEARING	1
13	419-22-11820	•• BEARING	1
14	418-22-21330	•• SEAL,OIL	1
15	418-22-21310	•• PROTECTOR	1
16	419-22-21230	•• COUPLING	1
17	423-22-11240	•• HOLDER	1
18	07000-13042	•• O-RING	1
19	01011-61615	•• BOLT	1
20	07000-15180	•• O-RING	1
21	419-22-11361	•• SHIM, 0.05 MM	2
	419-22-11371	•• SHIM, 0.2 MM	2
	419-22-11381	•• SHIM, 0.3MM	2
	419-22-11391	•• SHIM, 0.8MM	1
22	01010-61440	•• BOLT	10
23	01643-31445	•• WASHER	10
	419-22-31501	•• CASE ASSEMBLY	1
24	419-22-31511	••• CASE	1
25	419-22-31521	••• CASE	1
26	01010-31295	••• BOLT	12
27	01643-31232	••• WASHER	12
28	175-21-12180	••• PIN	4
29	419-22-21430	•• GEAR. SIDE	2
30	419-22-11631	•• WASHER	2
31	419-22-11421	•• PINION	4
32	418-22-31550	•• WASHER	4
33	418-22-31410	•• SHAFT	1
34	01010-61240	•• BOLT	20
35	01643-31232	•• WASHER	20
36	419-22-21860	•• CARRIER	2
37	419-22-11850	•• BEARING	2
38	419-33-21430	•• RING	2
39	419-22-21760	•• SHIM, 0.05 MM	4
	419-22-21770	•• SHIM, 0.2 MM	4
	419-22-21780	•• SHIM, 0.3MM	4
	419-22-21790	•• SHIM, 0.8MM	4
40	01010-61240	•• BOLT	16
41	01643-31232	•• WASHER	16
42	419-22-23620	•• COVER	1
43	04020-01228	•• PIN,DOWEL	2
44	01010-61240	•• BOLT	16
45	01643-31232	•• WASHER	16
46	419-33-21710	•• SEAL	2
47	419-33-11460	•• BLEEDER	2
48	566-32-11620	•• CAP	2
