Products Name DBM Hydraulic Piston Seal Material NBR+Fibre Reinforced NBR+POM
Pressure Range 35 MPa Temp. Range -35°C +100°C
Speed 0.5 M/s Position Hydraulic Oil Seals
High Light

Double Acting DBM Hydraulic Piston Seal

,

35MPa Hydraulic Piston Seal

,

Hydraulic Piston Seal

Leave a Message
Product Description

Good Sealing Double-acting DBM Compact Seal Hydraulic Piston Seal



Product Name DBM Hydraulic Piston Seal
Material NBR+Fibre Reinforced NBR+POM
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion ISO9001
Condition 100% New
Warranty Unavailable
Customized OEM & ODM are welcomed
Size Standard
Position Hydraulic oil seals
Pressure Range 35 MPa
Temp. range

-35℃+100℃

Speed 0.5 m/s



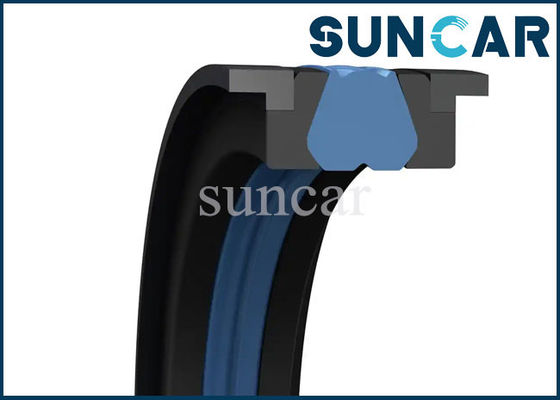

Description Of DBM Piston Seal:

Double-acting compact piston seal assemblies consisting of an elastomeric piston seal, two thermoelastomeric Back-up Rings and two thermoplastic wear rings. They are installed in closed grooves. The DBM compact seal profile is charatterizud by a concave-shaped Back-up ring that prevents the elastorme profile ring from defosution and/or extrusion The Back-up ring is cuntered on the outside by the guide ring.



Advantages:

- Good sealing effect, also suitable for holding cylinders.

- Capable of installation in closed grooves for reduced machining costs.

- Economit sealing and guide solution.

- Simple snap installation.



The Role Of The Seal:

  • Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
  • Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
  • Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
  • Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
  • Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
  • (Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.



Size Of DBM Piston Seal:

25*15*16.4/29.1 63*47*20.5/26.7 115*90*22.4/35.1 165*140*25.4/44.4
30*17*15.4/28.1 65*49*20.5/26.7 120*95*22.4/35.1 170*145*25.4/50.8
32*22*16.4/29.1 65*50*18.4/31.1 125*100*25.4/38.1 175*150*25.4/50.8
35*25*16.4/29.1 70*50*22.4/35.1 125*103*26.5/36.9 180*155*25.4/50.8
40*24*18.4/31.1 70*54*20.5/26.7 130*105*25.4/44.4 185*160*25.4/50.8
40*26*15.5/20.7 75*55*22.4/35.1 133*115*22.4/41.44 190*165*25.4/50.8
40*30*16.4/29.1 80*60*22.4/35.1 135*110*25.4/44.4 195*170*25.4/50.8
45*29*18.4/31.1 80*62*22.5/29.7 140*115*25.4/44.4 200*175*25.4/50.8
45*35*16.4/29.1 85*65*22.4/35.1 140*118*26.5/36.7 200*175*31.5/44.7
50*34*18.4/31.1 90*70*22.4/35.1 145*120*25.4/44.4 210*185*25.4/50.8
50*34*20.5/26.7 95*75*22.4/35.1 150*125*25.4/44.4 220*195*25.4/50.8
55*39*18.4/31.1 100*75*22.4/35.1 152.4*127*31.75/50.75 230*205*25.4/50.8
60*44*18.4/31.1 100*82*22.5/29.7 155*130*25.4/44.4 240*215*25.4/50.8
60*44*20.5/26.7 105*80*22.4/35.1 160*130*25.4/44.4 250*225*25.4/50.8
63*47*18.4/31.1 110*85*22.4/35.5 160*135*25.4/44.4



Product Show:

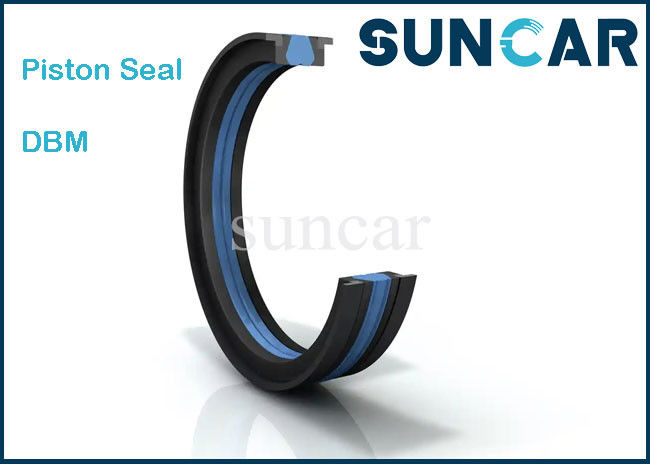

Good Sealing Double - Acting DBM Compact Seal Hydraulic Piston Seal 0

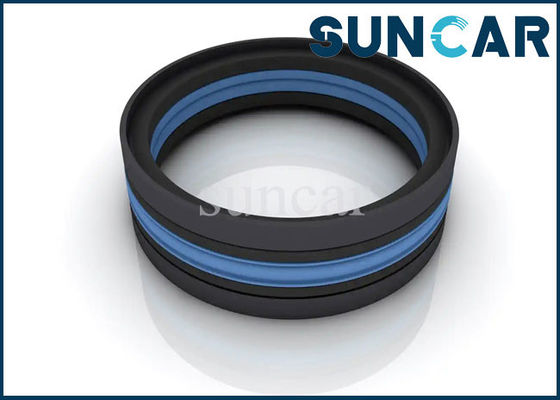

Good Sealing Double - Acting DBM Compact Seal Hydraulic Piston Seal 1
