423-22-22461 Rear Axle Drive Seal Loader Oil Seal For Komatsu GD755-3 WA380-5

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number 423-22-22461 KOMATSU GD755-3, GH320-3, WA350-3A, WA380-5...
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 1000 set per week
Product Details
Products Name Rear Axle Drive Seal Material NBR A571
Part Number 423-22-22461 Application Mechanical, Komatsu Wheel Loaders/grader
Condition New, Genuine New Applicable Industries Engineering Machinery
High Light

423-22-22461 Loader Oil Seal

,

Rotary Shaft Seals

,

WA380-5 Loader Oil Seal

Leave a Message
Product Description

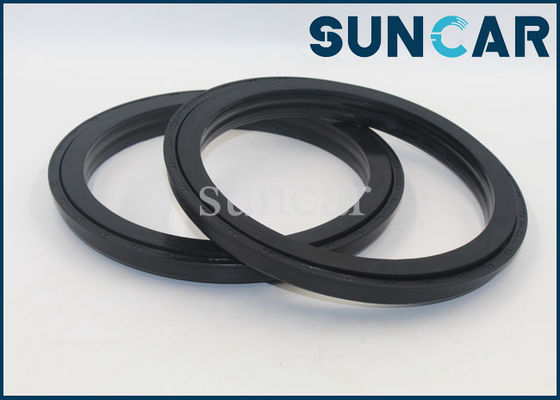

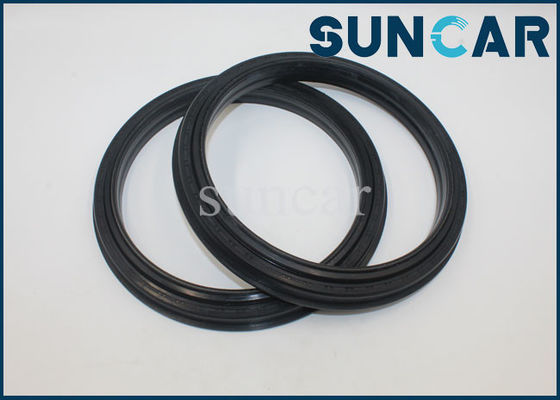

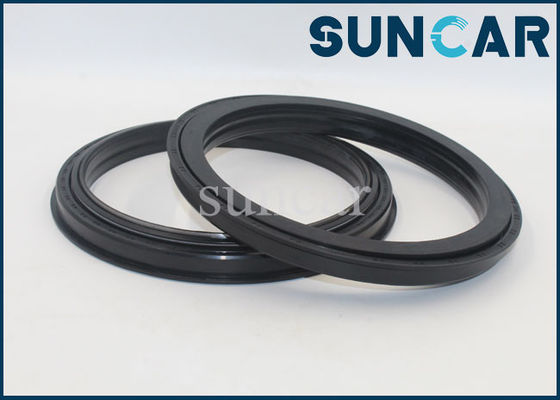

423-22-22461 Rear Axle Drive Seal Loader Oil Seal For Komatsu GD755-3 WA380-5



Product Name Rear Axle Drive Seal
Models KOMATSU GD755-3, GH320-3, WA350-3A, WA380-5, WA380Z-6, WA430-6
Material NBR A571
Part Number 423-22-22461
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
Certification ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
Size OEM standard size
Position Hydraulic oil seals
Application Mechanical, komatsu wheel loaders/grader
Condition New, genuine new
Applicable Industries Engineering machinery



Measures For Oil Leakage Due To Inadequate Oil Seal:
1. Master and recognize the basic knowledge of fake and inferior products, and purchase high-quality and standard oil seals.
2. During installation, if the roughness of the outer surface of the shaft diameter is low or there are defects such as rust, burrs, etc., smooth it with a fine emery cloth or whetstone; apply clean engine oil or grease to the lip of the oil seal or the corresponding position of the shaft diameter. Apply sealant to the outer ring of the oil seal, wrap the key way on the shaft with hard paper to avoid scratching the lip of the oil seal, and use a special tool to rotate and press the oil seal inwards. Do not smash the hard seal to prevent deformation of the oil seal or squeeze the spring and fail; If there is lip cuffing, the spring falls off and the oil seal is skewed, It must be removed and reinstalled. It should be noted that when the shaft diameter is not worn and the spring force of the oil seal spring is sufficient, do not tighten the inner spring without authorization.
3. The oil seals applied to machinery generally have to be inspected, maintained and maintained when the general working conditions are poor, the ambient temperature difference is large, the dust is excessive, and the vibration of the machine tool frequently changes the stress condition of the machine parts.
4. If the shaft diameter and bearing are seriously worn; The rubber seal oil is aging or the spring is invalid, etc., repair and replace the corresponding parts in time.

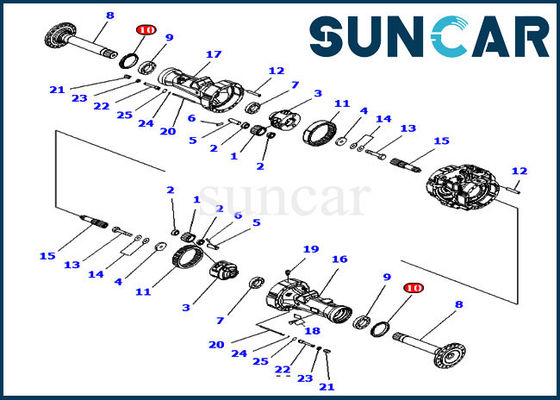

Related Parts:

Pos. Part Number Product Name QTY.
  423-23-30001 AXLE ASS'Y,REAR 1
  423-23-30051 AXLE ASS'Y,REAR (LIMITED SLIP DIFF.) 1
  423-22-32001 • FINAL DRIVE ASS'Y 1
1 423-22-32531 •• GEAR 6
2 421-23-32810 •• BEARING 12
3 423-22-32662 •• CARRIER 2
  423-22-32660 •• CARRIER 2
4 421-23-32352 •• WASHER 2
5 423-22-22510 •• SHAFT 6
6 419-22-12570 •• PIN 6
7 423-22-32870 •• BEARING 2
8 423-22-32460 •• SHAFT,AXLE 2
9 423-22-22850 •• BEARING 2
10 423-22-22461 •• SEAL 2
11 423-22-32543 •• GEAR,RING 2
  423-22-32542 •• GEAR,RING 2
12 419-22-12581 •• PIN,DOWEL 8
13 01011-62210 •• BOLT 2
14 421-23-32470 •• SHIM¤ 0.05MM 4
  421-23-32480 •• SHIM¤ 0.2MM 4
  421-23-32490 •• SHIM¤ 0.5MM 4
15 423-22-32421 •• SHAFT 2
16 423-23-33410 •• HOUSING,L.H. 1
  423-23-33310 •• HOUSING,L.H. 1
17 423-23-33420 •• HOUSING,R.H. 1
  423-23-33320 •• HOUSING,R.H. 1
18 815-02-10110 •• PLATE¤ NAME 1
  04418-13060 •• SCREW 4
19 07030-01030 •• BREATHER 1
20 421-33-31711 •• SHAFT 2
21 421-33-31730 •• CAP 2
22 421-33-31721 •• GUIDE 2
23 01583-11610 •• NUT 2
24 07000-11005 •• O-RING 2
25 07000-12018 •• O-RING 2



Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
