AH225135 Hydraulic Arm Cylinder Seal Kit For Excavator 2154D 225CLC JOHN DEERE Parts

Brand Name:	SUNCAR
Model Number:	AH225135 John Deere 2154D, 225CLC, 220DW, 200DLC, 225DLC, 210G
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Part Number:

AH225135

Material:

PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ

95.00 MM

Bore:

135.00 MM

Cylinder Numbers:

9234748G

Feature:

Sealing Performance/ Wear Resistance

Supply Ability:

1000 set per week

Highlight:

JOHN DEERE Seal Kit

225CLC Arm Cylinder Seal Kit

AH225135 Arm Cylinder Seal Kit

Product Description

AH225135 Hydraulic Arm Cylinder Seal Kit For Excavator 2154D 225CLC JOHN DEERE Parts

Product Name	JOHN DEERE Arm Cylinder Seal Kit
Models	John Deere 2154D, 225CLC, 220DW, 200DLC, 225DLC, 210G
Part Number	AH225135
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
Size	OEM standard size
Position	Hydraulic cylinder seal kit
Condition	New, genuine new
Rod	95.00 MM
Bore	135.00 MM
Feature	Sealing performance/ wear resistance
Cylinder Numbers	9234748G

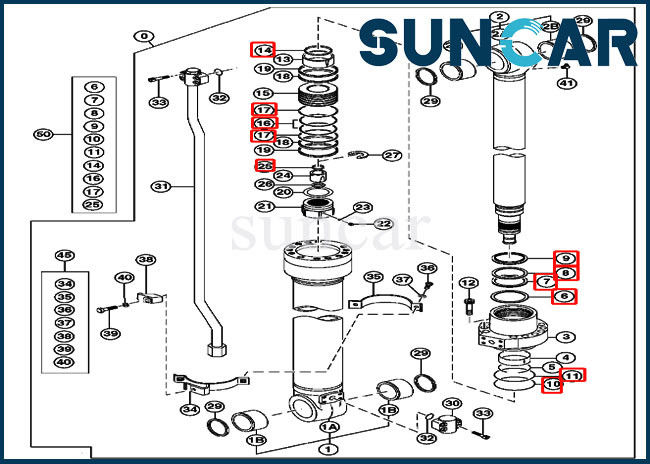

Related Parts:

Pos.	Part No	Qty	Parts name
0	9169805	[1]	Cylinder
0	9169805Y	[1]	Cylinder
1	876301	[1]	Tube
1	PG201488	[1]	Hyd Cylinder Barrel Reman
1A.	........	[1]	Tube
1B.	4352399	[2]	Bushing
2	789103	[1]	Rod
2A.	........	[1]	Rod
2B.	4352399	[2]	Bushing
3	H178686	[1]	Hydr. Cylinder Rod Guide
4	T108050	[1]	Wear Ring
5	TH102766	[1]	Snap Ring
6	H227909	[1]	Seal
7	H227910	[1]	Seal
8	H155310	[1]	Back-Up Ring
9	H155311	[1]	Seal
10	AT264224	[1]	O-Ring
11	H178691	[1]	Back-Up Ring
12	19M8913	[12]	Screw
13	H155319	[1]	Ring
14	H155320	[1]	Seal
15	789108	[1]	Piston
16	AH173446	[1]	Ring
17	H178694	[2]	Back-Up Ring
18	H227905	[2]	Ring
19	H178696	[2]	Back-Up Ring
20	T108063	[1]	Shim
21	789111	[1]	Nut
22	22M6684	[1]	Set Screw
23	T13624	[1]	Ball
24	H155321	[1]	Spacer
25	H155322	[1]	Seal
26	H155329	[2]	Ring
27	H155330	[1]	Piston Ring
29	TH102446	[4]	Seal
30	........	[1]	Support
30	H155333	[1]	Shoulder Fitting
30	A853188	[2]	Adapter Fitting
31	789117	[1]	Line
32	AT264348	[2]	O-Ring
33	M800636	[8]	Screw
33	19M8448	[4]	Screw
34	789114	[1]	Band
35	789115	[1]	Band
36	19M7550	[2]	Cap Screw
37	12M7066	[2]	Lock Washer
38	0309219J	[1]	Half Clamp
39	19M8348	[1]	Cap Screw
40	12M7067	[1]	Lock Washer
41	JD7781	[1]	LubriC.A.Tion Fitting
45	876205	[1]	Band Kit
50	AH225135	[1]	Hydraulic Cylinder Kit

Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

Product Show:
