Bucket Cylinder Seal Repir Kit AH173451 For John Deere 2154D 200CLC 225CLC Models

Brand Name:	SUNCAR
Model Number:	AH173451 John Deere 2154D, 200CLC, 225CLC, 2454D...
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Part Number:

AH173451

Material:

PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ

80.00 MM

Bore:

115.00 MM

Cylinder Numbers:

DH900365J

Feature:

Sealing Performance/ Wear Resistance

Supply Ability:

1000 set per week

Highlight:

JOHN DEERE Seal Kit

2154D Bucket Cylinder Seal Repir Kit

225CLC Bucket Cylinder Seal Repir Kit

Product Description

Bucket Cylinder Seal Repir Kit AH173451 For John Deere 2154D 200CLC 225CLC Models

Product Name	John Deere Bucket Cylinder Seal Repir Kit
Models	John Deere 2154D, 200CLC, 225CLC, 2454D, 2554, 2954D, 3754D, 2054
Part Number	AH173451
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
Size	OEM standard size
Position	Hydraulic cylinder seal kit
Condition	New, genuine new
Rod	80.00 MM
Bore	115.00 MM
Feature	Sealing performance/ wear resistance
Cylinder Numbers	DH900365J

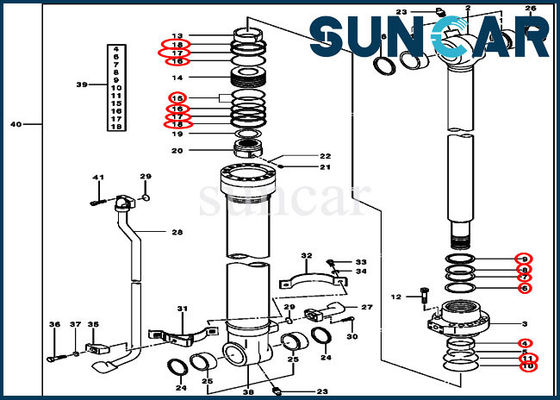

Related Parts:

Pos.	Part No	Qty	Parts name
1	4352398	[2]	Bushing
2	AH173450	[1]	Rod
3	H206941	[1]	Hydr. Cylinder Rod Guide
4	AT264314	[1]	Wear Ring
5	AT132690	[1]	Snap Ring
6	H179700	[1]	Seal
7	AT264357	[1]	Seal
8	AT264358	[1]	Back-Up Ring
9	H157235	[1]	Seal
10	AT264320	[1]	O-Ring
11	TH109353	[1]	Back-Up Ring
12	19M8931	[10]	Screw
13	H178712	[1]	Ring
14	H161605	[1]	Piston
15	TH105767	[1]	Ring
16	H163431	[2]	Back-Up Ring
17	H163432	[2]	Scraper Ring
18	TH109357	[2]	Ring
19	T108030	[1]	Shim
20	H178713	[1]	Nut
21	22M7009	[1]	Set Screw
22	T13624	[1]	Ball
23	TH100074	[2]	LubriC.A.Tion Fitting
24	TH104472	[2]	Seal
25	4352400	[2]	Bushing
26	AH140158	[2]	Seal
27	8086114J	[2]	Oil Line
28	AH233839	[1]	Oil Line
29	AT264360	[2]	O-Ring
30	19M8337	[4]	Screw
31	AH233840	[1]	Band
32	H178717J	[1]	Clamp
33	19M7550	[2]	Cap Screw
34	12M7066	[2]	Lock Washer
35	H238070	[1]	Clamp
36	19M7362	[1]	Cap Screw
37	12M7058	[1]	Lock Washer
38	AH173449	[1]	Hydraulic Cylinder Barrel
39	AH173451	[1]	Hydraulic Cylinder Kit
40	........	[1]	Cylinder
41	19M8339	[4]	Screw

The Role Of The Seal:

Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
(Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

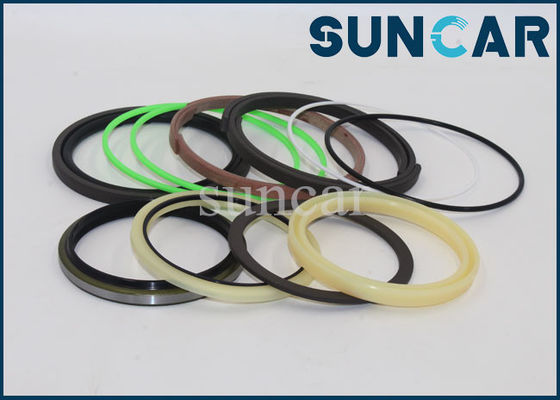

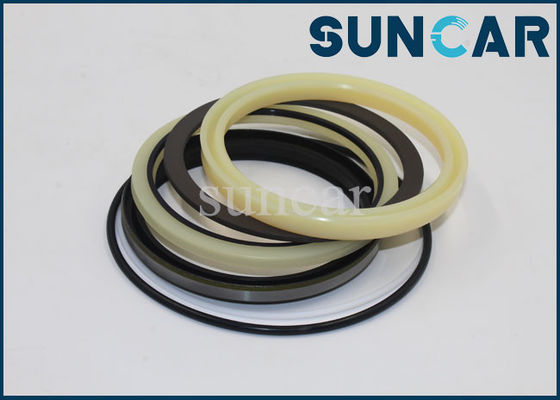

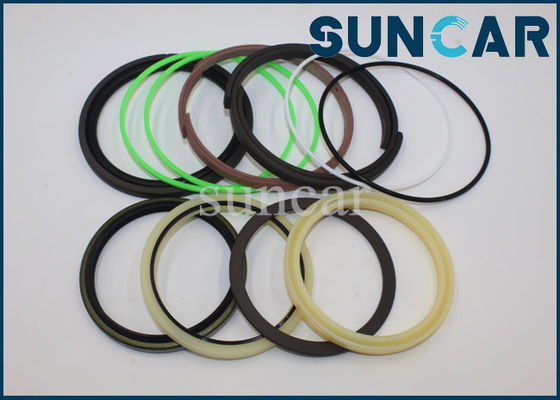

Product Show:
