Hydraulic Cylinder Seal Kit

Hydraulic Arm Cylinder Sealing Kit 707-99-46320 Komatsu PC160LC-7 Replacement Seal Kits

All Category

Piston Seals And Piston Rod Seals

Main Valve Seal Kit

Miss. Alina

Alina@suncarseals.com

86-14749308310

Contact Now

Hydraulic Arm Cylinder Sealing Kit 707-99-46320 Komatsu PC160LC-7 Replacement Seal Kits

Brand Name:	SUNCAR
Model Number:	707-99-46320 Komatsu PC160LC-7
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Products Name:

Arm Cylinder Sealing Kit

Part Number:

707-99-46320

Feuture:

Sealing Performance/ Wear Resistance

Applicable Industries:

Komatsu Machinery

After-sales Service Provided:

Online Support

Hardness:

70-95 Shore A

Supply Ability:

1000 set per week

Highlight:

KOMATSU Seal Kit

Arm Cylinder Sealing Kit

PC160LC-7 Excavator seal kit

Product Description

Hydraulic Arm Cylinder Sealing Kit 707-99-46320 Komatsu PC160LC-7 Replacement Seal Kits

Hydraulic Arm Cylinder Sealing Kit 707-99-46320 Komatsu PC160LC-7 Replacement Seal Kits
Model No.	PC160LC-7	Packing	PP bag,Carton,Wooden case or as Required
Material	NBR+KFM+PTER+PU	MOQ	1pcs
Size	Standard size or custom size	Brand	suncar
Hardness	70degree~95degree	Temperature	-35~220℃
Pressure	0~0.05Mpa	Feature	Oil-resistant, heat resistant,Durable
Color	Black Brown Bule yellow and more	Loading Port	Huangpu port ,China
AppliC.A.Tion	Excavator seal kit	Payment terms	T/T, Western union, paypal
AppliC.A.Tion	Excavator seal kit	Payment terms	trade assurance or as require
CertifiC.A.Tes	ISO9001	Delivery time	Within 5-7 days
Warranty	Unavailable	Shipment	By sea, by air, by express or as required

Features:

1). Excellent durability and flexibility in using.

2). Specially designed cords enhance durability and length stability.

3). Excellent in resistance against heat,oil and wear..

4). Show stable in high speed rotation.

5). Resistant to heat, oil, fatigue, aging and friction due to excellent and special frame

6). Large power, high speed, long service life, small distortion, less space occupying

Advantage:

1. The Oil Seal Structure Is Simple And Easy To Manufacture. Simple Oil Seals Can Be Molded At One Time, Even The Most CompliC.A.Ted Oil Seals Are Manufactured Using Oil Seals

Not CompliC.A.Ted. The Metal Frame Oil Seal Also Only Needs To Go Through The Processes Of Stamping, Gluing, Inlaying, And Molding To Form The Required Oil Seal With Metal And Rubber.

2. The Oil Seal Is Light In Weight And Less Consumable. Each Oil Seal Is a Combination Of Thin-Walled Metal Parts And Rubber Parts, And Its Material Consumption Is Very Small, So The Weight Of Each Oil Seal Is Very Light.

3. The Installation Position Of The Oil Seal Is Small, The Axial Size Is Small, It Is Easy To Process, And The Machine Is Compact.

4. The Oil Seal Has Good Sealing Performance And Long Service Life. It Has Certain Adaptability To The Vibration Of The Machine And The Eccentricity Of The Spindle.

5. The Oil Seal Is Easy To Disassemble And Inspection Is Convenient.

6. The Oil Seal Is Cheap.

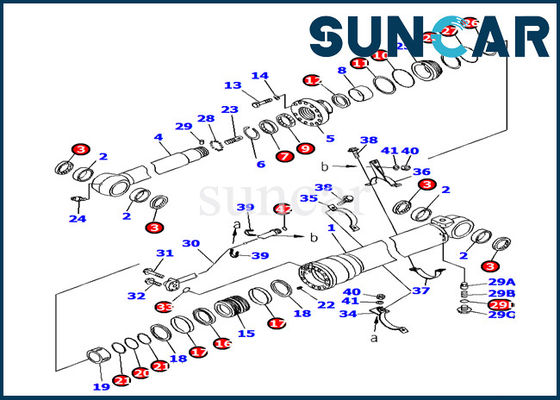

Related Parts:

Pos.	Part Number	Part Name	QTY
G-1	707-01-XX790	CYLINDER GROUP,	1
	707-01-0E510	CYLINDER ASSEMBLY	1
1	707-13-12340	CYLINDER	1
2	707-76-80470	BUSHING	4
3	07145-00080	SEAL,DUST (KIT)	4
4	707-58-85310	ROD,PISTON	1
5	707-27-12921	HEAD,CYLINDER	1
6	07179-13099	RING,SNAP	1
7	707-56-85510	SEAL,DUST (KIT)	1
8	707-52-90610	BUSHING	1
9	707-51-85030	PACKING,ROD (KIT)	1
10	07000-15110	O-RING (KIT)	1
11	707-35-91220	RING,BACK-UP (KIT)	1
12	707-51-85640	RING,BUFFER (KIT)	1
13	01010-81670	BOLT	12
14	01643-51645	WASHER	12
15	707-36-12851	PISTON	1
16	707-44-12180	RING,PISTON (KIT)	1
17	707-39-12140	RING,WEAR (KIT)	2
18	707-44-12911	RING	2
19	707-71-70820	PLUNGER	1
20	07000-15075	O-RING (KIT)	1
21	707-35-90930	RING,BACK-UP (KIT)	2
22	01310-01216	SCREW	1
23	707-71-80230	PLUNGER	1
24	07020-00000	FITTING,GREASE	1
25	707-71-34640	COLLAR	1
26	707-35-91220	RING,BACK-UP (KIT)	2
27	07000-15110	O-RING (KIT)	1
28	04260-00635	BALL	11
29	707-71-91270	CAP	1
29A	707-83-13010	VALVE	1
29B	07750-01628	SPRING	1
29C	707-87-14070	PLUG	1
29D	07002-12034	O-RING (KIT)	1
30	707-86-66770	TUBE	1
31	01435-01055	BOLT	2
32	01435-01045	BOLT	2
33	07000-13030	O-RING (KIT)	1
34	707-88-22930	BRACKET	1
35	707-88-21620	BAND	1
36	707-88-22970	BRACKET	1
37	707-88-21630	BAND	1
38	01435-01030	BOLT	4
39	07283-32738	CLIP	2
40	01597-01009	NUT	4
41	01643-31032	WASHER	4
42	02896-61018	O-RING (KIT)	1
	707-99-46320	SERVICE KIT	1

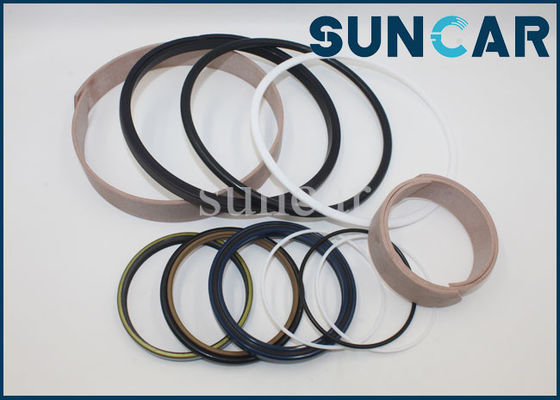

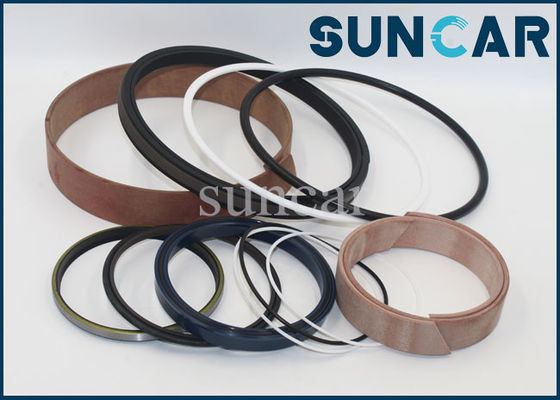

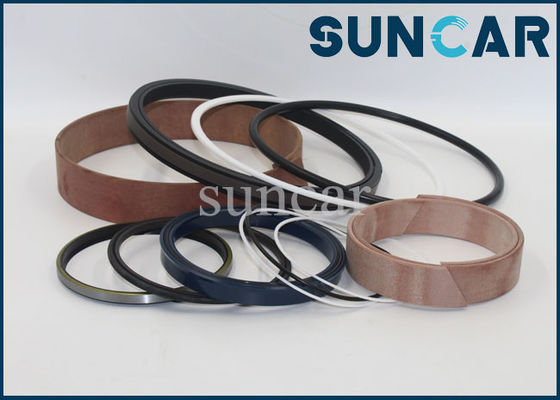

Product Image:
