Hydraulic Cylinder Seal Kit

200CLC John Deere AH173444 Arm Cylinder Seal Kit ISO9001 Heavy Equipment Parts

All Category

Piston Seals And Piston Rod Seals

Main Valve Seal Kit

Miss. Alina

Alina@suncarseals.com

86-14749308310

Contact Now

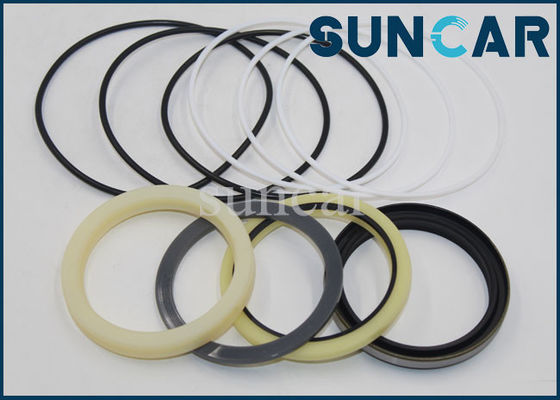

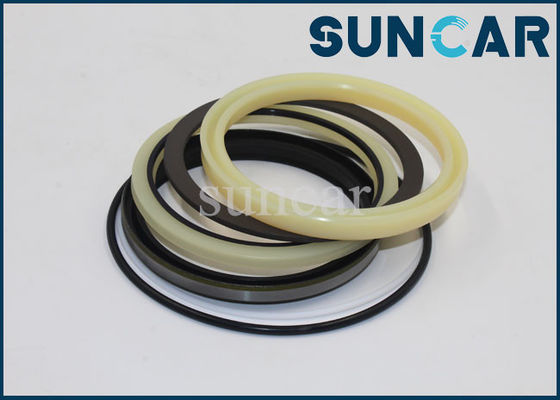

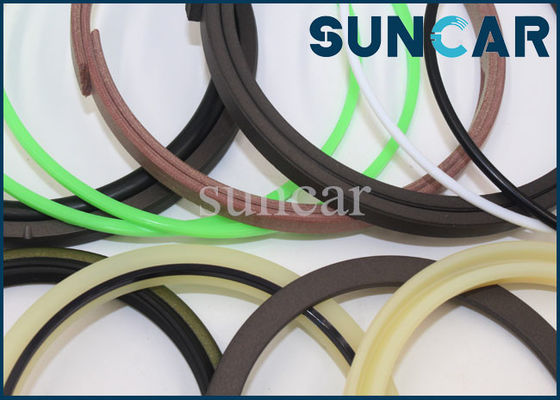

200CLC John Deere AH173444 Arm Cylinder Seal Kit ISO9001 Heavy Equipment Parts

Brand Name:	SUNCAR
Model Number:	AH173444 John Deere 909MH, 953M, 959K, 903KH, 200CLC
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Part Number:

AH173444

Product Name:

John Deere Arm Cylinder Seal Kit

Material:

PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ

95 MM

Bore:

135 MM

Cylinder Numbers:

AHC14777

Supply Ability:

1000 set per week

Highlight:

JOHN DEERE Seal Kit

Hydraulic Cylinder Service Kit

Cylinder Repair Seal Kit

Product Description

200CLC John Deere AH173444 Arm Cylinder Seal Kit ISO9001 Heavy Equipment Parts

Product Name	John Deere Arm Cylinder Seal Kit
Models	John Deere 909MH, 953M, 959K, 903KH, 200CLC, 803MH, 853M, 909KH, 859M, 959M, 859MH, 853MH, 953K, 2054, 903MH
Part Number	AH173444
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
Size	OEM standard size
Position	Hydraulic cylinder seal kit
Condition	New, genuine new
Rod	95 MM
Bore	135 MM
Feature	Sealing performance/ wear resistance
Cylinder Numbers	AHC14777
AppliC.A.Tion	Arm

The Role Of The Seal:

Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
(Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

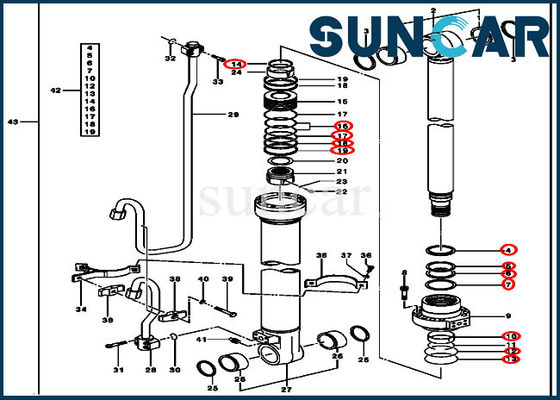

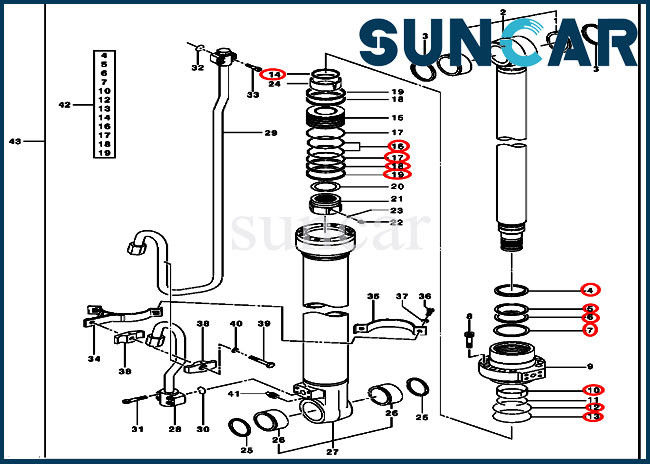

Related Parts:

Pos.	Part No	Qty	Parts name
1	4352399	[2]	Bushing
2	AH173443	[1]	Rod
2	PG201386	[1]	Hyd Cylinder Rod Reman
3	H178686	[1]	Hydr. Cylinder Rod Guide
4	T108050	[1]	Wear Ring
5	TH102766	[1]	Snap Ring
6	H179694	[1]	Seal
7	H227910	[1]	Seal
8	H155310	[1]	Back-Up Ring
9	H155311	[1]	Seal
10	H178690	[1]	O-Ring
11	H178691	[1]	Back-Up Ring
12	19M8913	[1]	Screw
13	H155319	[1]	Ring
14	H155320	[1]	Seal
15	H178697	[1]	Piston
16	AH173446	[1]	Ring
17	H178694	[2]	Back-Up Ring
18	H178695	[2]	Back-Up Ring
19	H178696	[2]	Back-Up Ring
20	T108063	[1]	Shim
21	H178698	[1]	Nut
22	22M7009	[1]	Set Screw
23	T13624	[1]	Ball
24	H155321	[1]	Spacer
25	H155322	[1]	Seal
26	H155329	[2]	Ring
27	H155330	[1]	Piston Ring
28	12M7058	[1]	Lock Washer
29	TH102446	[4]	Seal
30	H155333	[1]	Shoulder Fitting
31	AH233837	[1]	Oil Line
32	AT264348	[1]	O-Ring
33	19M9012	[4]	Screw
34	AH233838	[1]	Band
35	H178703	[1]	Band
36	19M7550	[2]	Cap Screw
37	12M7066	[2]	Lock Washer
38	0309219J	[1]	Half Clamp
39	19M8348	[1]	Cap Screw
40	4352399	[2]	Bushing
41	H179695	[1]	LubriC.A.Tion Fitting
42	AH173442	[1]	Hydraulic Cylinder Barrel
42	PG201384	[1]	Hyd Cylinder Barrel Reman
43	AH173444	[1]	Hydraulic Cylinder Kit
44	9169805Y	[1]	Cylinder

Some Part Number Of John Deere Cyliner Seal Kit:

AT217906	AR96273	AH173457	AT192075
AT181246	AT196467	AH173444	AT196478
AT264429	AH158827	AT260416	AT45305
AT183658	AT264438	AR93238	TH102798
AT181250	AT264439	AT264430	TH103324
AT191198	AT264437	AR96274	TH110035
AT182708	AH155040	AR93239	AT154868
AR96583	AR90892	AH143519	AT154869
AR88791	AT196470	AH140198	AT192098
AR105293	TH102827	AT114822	AT264443
AR105637	TH103347	AT114836	AT264444
AT37322	AT37323	AT114831	AT192095
AT43470	AR96524	AH143521	AT194335
AT32943	AT36451	AT314427	AH215765

Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
