4654422 Arm Cylinder Seal Repair Service Kit For Models 220DW John Deere Construction Machinery

Brand Name:	SUNCAR
Model Number:	4654422 John Deere 220DW
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Part Number:

4654422

Material:

PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ

AppliC.A.Tion:

Feature:

Sealing Performance/ Wear Resistance

Condition:

New, Genuine New

Size:

OEM Standard Size

Supply Ability:

1000 set per week

Highlight:

JOHN DEERE Seal Kit

4654422 Arm Seal Kit

John Deere Cylinder Seal Kit

Product Description

4654422 Arm Cylinder Seal Repair Service Kit For Models 220DW John Deere Construction Machinery

Product Name	John Deere Arm Cylinder Seal Repair Service Kit
Models	John Deere 220DW
Part Number	4654422
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
Size	OEM standard size
Position	Hydraulic cylinder seal kit
Condition	New, genuine new
Feature	Sealing performance/ wear resistance
AppliC.A.Tion	Arm

Our Product Range:

* Hydraulic pump seal kit

* Control valve seal kit

* O ring kit box

* Gear pump seal kit

* Travel motor seal kit

* Swing motor seal kit

* Pilot valve seal kit/PPC seal

* Adjuster seal kit

* Center joint seal kit

* Boom cylinder seal kit

* Arm cylinder seal kit

* Bucket cylinder seal kit

* Breaker hammer seal kit

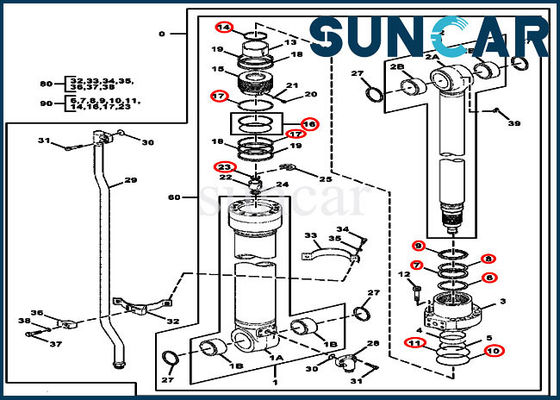

Related Parts:

Pos.	Part No	Qty	Parts name
0	9234748G	[1]	Hydraulic Cylinder
1	1100501G	[1]	Hydraulic Cylinder Barrel
1	PG201203	[1]	Hyd Cylinder Barrel Reman
1A.	........	[1]	Hydraulic Cylinder Barrel
1B.	4352399	[2]	Bushing
2	AH225127G	[1]	Rod
2	AH234560	[1]	Rod
2A.	PG201204	[1]	Hydraulic Cylinder Rod
2B.	4352399	[2]	Bushing
3	H178686	[1]	Hydr. Cylinder Rod Guide
4	T108050	[1]	Wear Ring
5	TH102766	[1]	Snap Ring
6	H227909	[1]	Seal
7	H227910	[1]	Seal
8	H155310	[1]	Back-Up Ring
9	H155311	[1]	Seal
10	H178690	[1]	O-Ring
11	H178691	[1]	Back-Up Ring
12	19M8913	[12]	Screw
13	H227903	[1]	Ring
14	H227908	[1]	Seal
15	H227625	[1]	Piston
16	AH173446	[1]	Ring
17	H178694	[2]	Back-Up Ring
18	H227905	[2]	Ring
19	H178696	[2]	Back-Up Ring
20	H228111	[1]	Set Screw
21	R26552	[1]	Ball
22	H227904	[1]	Ring
23	H155322	[1]	Seal
24	H155329	[2]	Ring
25	H155330	[1]	Piston Ring
27	TH102446	[4]	Seal
28	H227915	[1]	Hydraulic Cylinder Port
29	AH234566	[1]	Oil Line
30	AT264348	[2]	O-Ring
31	19M8448	[8]	Screw
32	AH234562	[1]	Clamp
33	H227901G	[1]	Clamp
34	19M7550	[2]	Cap Screw
35	12M7066	[2]	Lock Washer
36	0309219G	[1]	Half Clamp
37	19M8348	[1]	Cap Screw
38	12M7067	[1]	Lock Washer
39	AH226482	[1]	LubriC.A.Tion Fitting
60	PG200114G	[1]	Hydraulic Cylinder Reman
80	962110	[1]	Clamp Kit
90	4654422	[1]	Seal Kit
90	AH225135	[1]	Hydraulic Cylinder Kit

Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

Guarantee:

If you find any quality problems when the goods arrive, please contact us. If this is indeed our responsibility, we will resend the same parts for you free of charge in the next batch of orders. We hope to cooperate with you for a long time. With careful consideration, we can help you win a good reputation from consumers in terms of quality, delivery speed, packaging, etc.

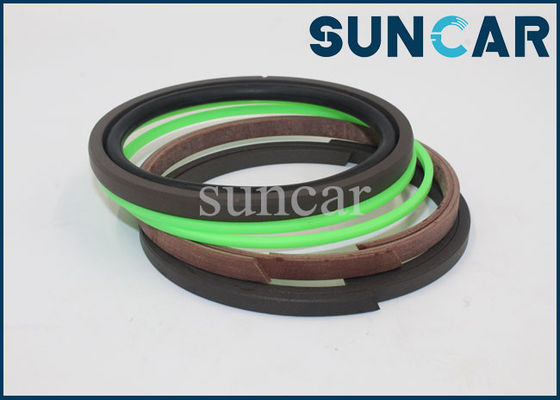

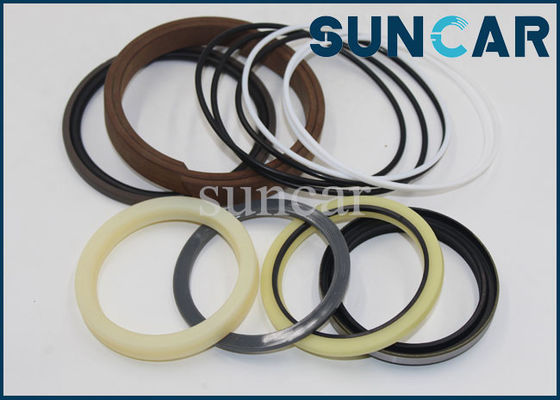

Product Image:
