470GLC John Deere FXB00001834 Counterweight Removal Device Cylinder Seal Repair Kit

Place of Origin HUAGNPU, China (Mainland)
Brand Name SUNCAR
Model Number FXB00001834 John Deere 670GLC, 470GLC
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P
Supply Ability 1000 set per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Nunber FXB00001834 Cylinder Number 4723757
Rod 85 MM Bore 130 MM
AppliC.A.Tion Counterweight Shipping Mode By Air, By Sea, By Express(FedEx, UPS, DHL, TNT, Etc.)
High Light

FXB00001834 Cylinder Seal Repair Kit

,

JOHN DEERE Seal Kit

Leave a Message
Product Description



470GLC John Deere FXB00001834 Counterweight Removal Device Cylinder Seal Repair Kit



Product Name John Deere Counterweight Removal Device Cylinder Seal Repair Kit
Models John Deere 670GLC, 470GLC
Part Number FXB00001834
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, L/C, T/T, D/A, D/P
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
Size OEM standard size
Position Hydraulic cylinder seal kit
Condition New, genuine new
Rod 85 MM
Bore 130 MM
Cylinder Number 4723757
Feature Sealing performance/ wear resistance
AppliC.A.Tion Counterweight



When You Open And Repair The Cylinder, Please Follow Below Operation:

1. Take off the cylinder from the machine.

2. Remove the head assembly and the rod assembly from the stick cylinder group.

3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.

4. Measure the seal kits before fitting.

5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.



Some Part Number Of John Deere Cylinder Seal Kit:

FYA00006590 FYA00001401 FYA00012907 FYD00006229
FYA00012906 FYA00012905 FYA00012899 FYD00006230
FYA00006591 FYA00012900 FYA00001400 FYD00000078
FYA00012901 FYA00023524 FYA00001396 FYD00003878
FYA00006592 FYA00001392 FYD00000074 FYD00005420
FYA00006593 FYA00010734 FYD00000073 FYD00005421
FYA00006594 FYA00010733 FYD00000072 FYD00003882
FYA00006595 FYA00008675 FYD00000075 FYD00003886
FYA00001398 FYA00010735 FYD00000085 FYD00003887
FXB00002044 FXB00001834 FXB00001856 FYD00000071

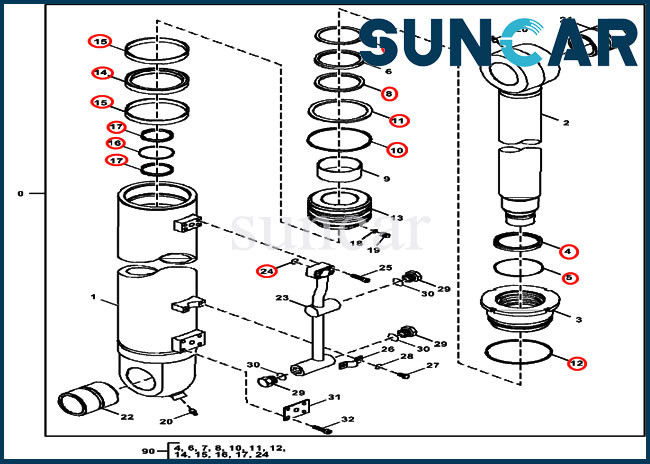

Parts On Group Counterweight Removal Device Cylinder Components:

Pos. Part No Qty Parts name
0 4723756 [1] Cylinder
1 FXB00001803 [1] Hydraulic Cylinder Barrel
2 FXB00001804 [1] Rod
3 FXB00001805 [1] Cylinder Head
4 FXB00001806 [1] Scraper Ring
5 FXB00001807 [1] Ring
6 FXB00001808 [1] Sealing Ring
7 FXB00001809 [1] Back-Up Ring
8 FXB00001810 [1] Ring
9 FXB00001811 [1] Bushing
10 FXB00001812 [1] O-Ring
11 FXB00001813 [1] Back-Up Ring
12 FXB00001814 [1] O-Ring
13 FXB00001815 [1] Piston
14 FXB00001816 [1] Sealing Ring
15 FXB00001817 [2] Wear Ring
16 FXB00001818 [1] O-Ring
17 FXB00001819 [2] Back-Up Ring
18 FXB00001820 [1] Ball
19 FXB00001821 [1] Set Screw
20 FXB00001822 [2] Fitting
21 FXB00001823 [1] Bushing
22 FXB00001823 [1] Bushing
23 FXB00001824 [1] Oil Line
24 FXB00001825 [1] O-Ring
25 FXB00001826 [4] Bolt
26 FXB00001827 [1] Clamp
27 FXB00001828 [2] Bolt
28 FXB00001829 [2] Spring Washer
29 FXB00001830 [3] Plug
30 FXB00001831 [3] O-Ring
31 FXB00001832 [1] Cover
32 FXB00001833 [4] Bolt
90 FXB00001834 [1] Seal Kit



Product Show:

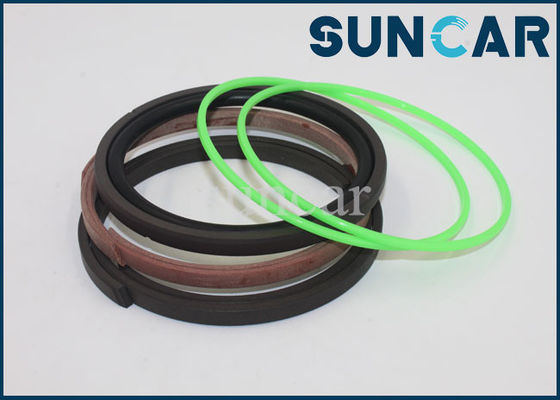

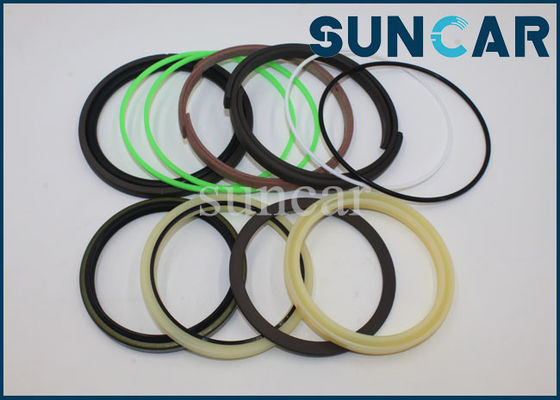

470GLC John Deere FXB00001834 Counterweight Removal Device Cylinder Seal Repair Kit 0

470GLC John Deere FXB00001834 Counterweight Removal Device Cylinder Seal Repair Kit 1
