3754D Deere 4686432 Hydraulic Boom Seal Kits Fits Cylinder 115.00 mm Rod 170 mm Bore
| Place of Origin | HUAGNPU, China (Mainland) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 4686432 John Deere 3754D, 3554 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability | 1000 set per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Nunber | 4686432 | Product Name | John Deere Hydraulic Boom Seal Kits |
|---|---|---|---|
| Rod | 115 MM | Bore | 170 MM |
| AppliC.A.Tion | Boom | Shipping Mode | By Air, By Sea, By Express(FedEx, UPS, DHL, TNT, Etc.) |
| High Light | JOHN DEERE Seal Kit,4686432 Hydraulic Boom Seal Kits,3754D Cylinder Repair Kits |
||
Product Description
3754D Deere 4686432 Hydraulic Boom Seal Kits Fits Cylinder 115.00 mm Rod 170 mm Bore
| Product Name | John Deere Hydraulic Boom Seal Kits |
| Models | John Deere 3754D, 3554 |
| Part Number | 4686432 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 115 MM |
| Bore | 170 MM |
| Feature | Sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |

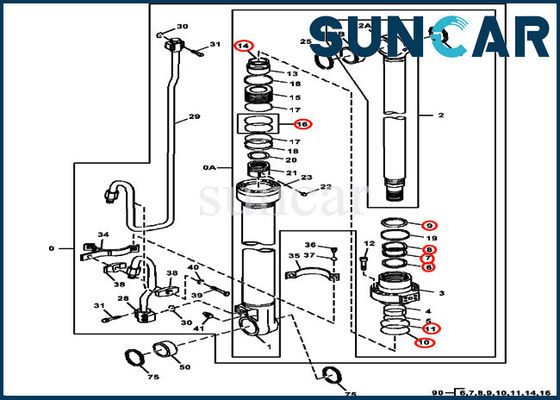

Related Parts:
| Pos. | Part No | Qty | Parts name |
| 0 | 4641548 | [1] | Hydraulic Cylinder |
| 0A. | ........ | [1] | Hydraulic Cylinder |
| 1 | 1163501 | [1] | Tube |
| 2 | 1163506 | [1] | Hydraulic Cylinder Rod |
| 2A. | ........ | [1] | Hydraulic Cylinder Rod |
| 2B. | 420104 | [1] | Bushing |
| 3 | 420105 | [1] | Cylinder Head |
| 4 | 352704 | [1] | Bushing |
| 5 | 133103 | [1] | Snap Ring |
| 6 | 972103 | [1] | Ring |
| 7 | 972104 | [1] | Packing |
| 8 | AT132286 | [1] | Back-Up Ring |
| 9 | 972105 | [1] | Ring |
| 10 | A811160 | [1] | O-Ring |
| 11 | AT264252 | [1] | Back-Up Ring |
| 12 | 191412 | [8] | Bolt |
| 13 | 420106 | [1] | Bearing |
| 14 | 420113 | [1] | Seal |
| 15 | 420108 | [1] | Piston |
| 16 | AT264253 | [1] | Ring |
| 17 | AT264289 | [2] | Ring |
| 18 | AT264248 | [2] | Ring |
| 19 | AT204911 | [1] | Ring |
| 20 | 352714 | [1] | Shim |
| 21 | 352713 | [1] | Nut |
| 22 | H228111 | [1] | Set Screw |
| 23 | R26552 | [1] | Ball |
| 25 | 420111 | [2] | Ring |
| 28 | 1163503 | [1] | Oil Line |
| 29 | 1163504 | [1] | Oil Line |
| 30 | AT264348 | [2] | O-Ring |
| 31 | 19M8448 | [8] | Screw |
| 34 | 1163505 | [1] | Clamp |
| 35 | 352721 | [1] | Band |
| 36 | 19M7550 | [2] | Cap Screw |
| 37 | 12M7066 | [2] | Lock Washer |
| 38 | 236915 | [2] | Half Clamp |
| 39 | 19M7291 | [1] | Cap Screw |
| 40 | 12H317 | [1] | Lock Washer |
| 41 | TH100074 | [1] | LubriC.A.Tion Fitting |
| 50 | FFSB102183 | [1] | Bushing |
| 75 | TH103200 | [2] | Seal |
| 90 | 4686432 | [1] | Seal Kit |
FAQ:
Q1. How do I choose a raw compound for my appliC.A.Tion?
A: With years of experience in using a variety of materials, we can help you choose the material that best suits your needs, keeping in mind the cost of materials.
Q2. What's the price of your product?
A: Please try your best to make your inquiry including each details requirements, like quantity, size, color, logo printing, package....,in order to our sells could send you an accurate quote at first time.
Q3. If the product does not fit to my machine, can I return the goods?
A:We offer exchange service for defective products during the warranty time as well as refund service. Please contact us before returning the products. Customer will pay the freight of returning goods, and we are responsible for exchanging and sending the replaced or repaired items to you.
Q4. How do you make our business long-term and good relationship?
A1: We keep good quality and competitive price to ensure our customers benefit ;
A2: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q5. What is your main products ?
A: We specialises in hydraulic breaker seal kit, excavator seal kit, wheel loaders seal kit, crawler dozers seal kit, pump seal kit, motor seal kit, dump trucks seal kit, wear ring/ O-ring / X-ring, center swing seal, track adjuster seal kit, etc.
Please feel free to send us your detailed requirements, you would be satisfied with our service.
