JOHN DEERE Seal Kit AT302758 Dipper Stick Arm Cylinder For Construction Machinery

Place of Origin HUAGNPU, China (Mainland)
Brand Name SUNCAR
Model Number AT302758 John Deere 450LC, 200LC, 992ELC, 450CLC
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P
Supply Ability 1000 set per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Nunber AT302758 Position Hydraulic Cylinder Seal Kit
Rod 130 MM Bore 190 MM
AppliC.A.Tion Arm Shipping Mode By Air, By Sea, By Express(FedEx, UPS, DHL, TNT, Etc.)
High Light

JOHN DEERE Seal Kit

,

AT302758 Arm Cylinder Seal Kit

,

Construction Machinery Hydraulic Kits

Leave a Message
Product Description



JOHN DEERE Seal Kit AT302758 Dipper Stick Arm Cylinder For Construction Machinery



Product Name John Deere Dipper Stick Arm Cylinder Seal Kit
Models John Deere 450LC, 200LC, 992ELC, 450CLC
Part Number AT302758
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, L/C, T/T, D/A, D/P
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
Size OEM standard size
Position Hydraulic cylinder seal kit
Condition New, genuine new
Rod 130 MM
Bore 190 MM
Feature Sealing performance/ wear resistance
AppliC.A.Tion Arm

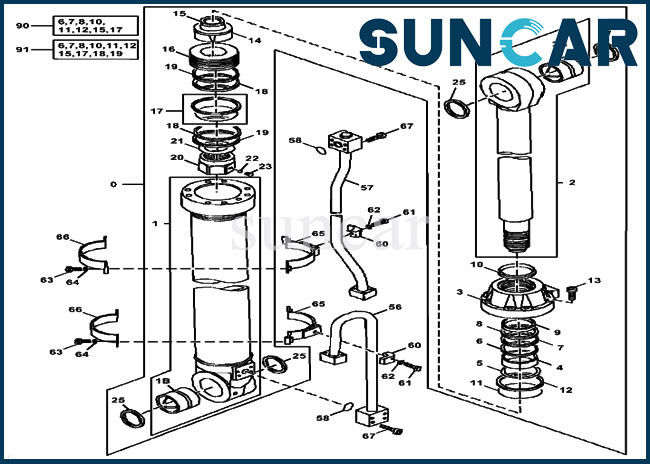

Parts On Group Arm Cylinder Components:

Pos. Part No Qty Parts name
0 4340512JEX [1] Hydraulic Cylinder Reman
1 420301 [1] Hydraulic Cylinder Barrel
1 PG201232 [1] Hyd Cylinder Barrel Reman
1B. 4660855 [1] Bushing
2 420302 [1] Rod
2B. 4660855 [1] Bushing
3 420303 [1] Cylinder Head
4 AT264250 [1] Bushing
5 133709 [1] Snap Ring
6 AT264251 [1] Ring
7 AT264242 [1] Seal
8 AT264246 [1] Back-Up Ring
9 417605 [1] Ring
10 AT264282 [1] Ring
11 AT264241 [1] O-Ring
12 AT264243 [1] Back-Up Ring
13 4104472 [8] Bolt
14 420304 [1] Bearing
15 ........ [1] Seal
16 420306 [1] Piston
17 T201905 [1] Seal
18 AT264290 [2] Ring
19 AT264245 [2] Wear Ring
20 353009 [1] Nut
21 353010 [1] Shim
22 353011 [1] Ball
23 353012 [1] Set Screw
25 AT201578 [4] Ring
56 4S00352J [1] Oil Line
57 0420311J [1] Oil Line
58 AT264254 [2] O-Ring
60 972307 [2] Clamp
61 19M4789 [2] Cap Screw
62 12H317 [2] Lock Washer
63 19M7550 [4] Cap Screw
64 12M7066 [4] Lock Washer
65 353017 [2] Band
66 353018   Band
67 19M8803 [8] Screw
89 AT302758 [1] Seal Kit
90 4438679 [1] Hydraulic Cylinder Kit
90 4700430 [1] Seal Kit
91 4S00956 [1] Seal Kit



Our Main Product Lines Applied To All Excavator Brand And Models. Partially Listed As Below:

Komatsu: PC30 PC40 PC50 PC55 PC60 PC70 PC100 PC120 PC130 PC200 PC220 PC240 PC300 PC360 PC400 PC460.

Hitachi: EX60 EX100 EX120 EX200 EX220 EX230 EX300 EX330 EX400 EX450 ZAX70 ZAX130 ZAX120 ZAX210 ZAX200 ZAX240 ZAX330 ZAX450.

Doosan: DH55 DH130 DH220 DH200 DH280 DH290 DH320 DH450.

Hundai: R200 R210 R215 R225 R280 R290 R320 R450.

Kato: HD250 HD400 HD450 HD550 HD512 HD7000 HD800 HD820 HD900 HD1023 HD1250 HD1880 HD1430.

Kobelco: SK07 SK09 SK60 SK100 SK120 SK200 SK230 SK250 SK260 SK300 SK400.

SUNCARSUNCARSUNCARSUNCARVOLVO: EC55 EC130 EC210 EC240 EC290 EC360 EC450.

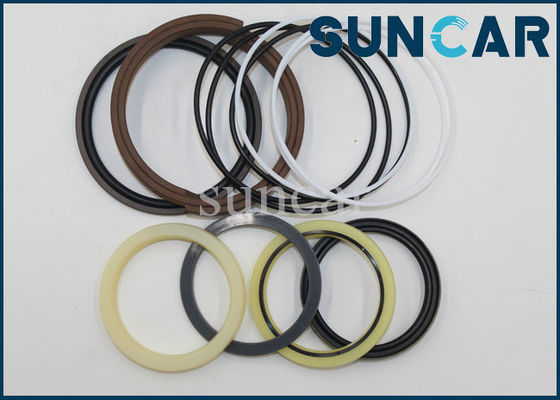

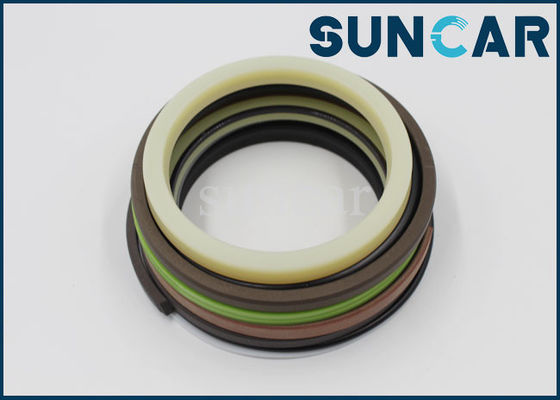

Product Image:

JOHN DEERE Seal Kit AT302758 Dipper Stick Arm Cylinder For Construction Machinery 0

JOHN DEERE Seal Kit AT302758 Dipper Stick Arm Cylinder For Construction Machinery 1
