AH144595 Hydraulic Arm Cylinder Repair Seal Kit Fits 690ELC John Deere Models

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number AH144595 John Deere 690ELC
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability 1000 set per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number AH144595 Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Position Hydraulic Cylinder Seal Kit Rod 95 MM
Bore 130 MM AppliC.A.Tion Arm
High Light

JOHN DEERE Seal Kit

,

AH144595 Arm Cylinder Repair Seal Kit

Leave a Message
Product Description



AH144595 Hydraulic Arm Cylinder Repair Seal Kit Fits 690ELC John Deere



Product Name John Deere Hydraulic Arm Cylinder Repair Seal Kit
Models John Deere 690ELC
Part Number AH144595
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, L/C, T/T, D/A, D/P
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
Size OEM standard size
Position Hydraulic cylinder seal kit
Condition New, genuine new
Rod 95 MM
Bore 130 MM
Cylinder Number AH144677
Feature Sealing performance/ wear resistance
AppliC.A.Tion Arm



How To Buy:

Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.

  • "Product name + part number + quantity".

Expected packaging: general packaging or customized packaging.

Step 2: Quotation and invoice

  • We will send the quotation to you as soon as possible. Once confirmed, we will issue an official invoice and provide bank information.

Step 3: Payment

  • Pay to our account and send us a bank statement.
  • Payment method: Western Union, T/T, Paypal, Transfer.

Step 4: Delivery

  • After receiving the payment, we will arrange the goods to be delivered to your designated address in China as soon as possible.

Step 5: Receipt

  • You just need to wait patiently for the goods.

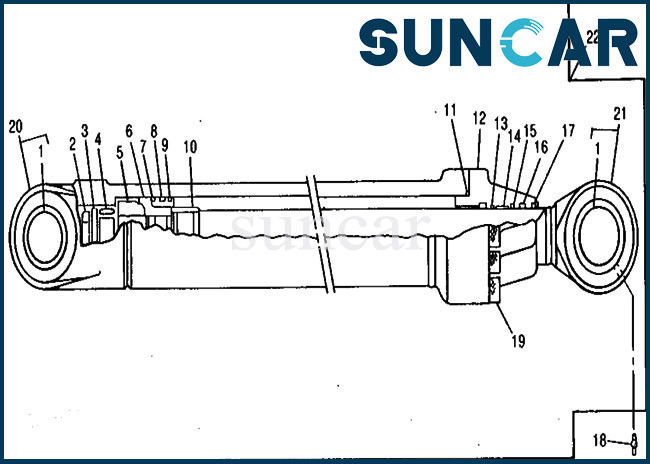

Parts On Group Arm Cylinder:

Pos. Part No Qty Parts name
1 H144210 [2] Bushing
1 TH102446 [4] Seal
2 19M7993 [1] Cap Screw
3 H144875 [1] Washer
4 H144839 [1] Cushion
5 H144236 [1] Nut
6 H144224 [1] Piston
7 AH138084 [1] Seal
8 H144227 [2] Wear Ring
9 H144230 [2] Back-Up Ring
10 H144233 [1] Cushion
11 H144920 [1] Ring
12 H146299 [1] Hydr. Cylinder Rod Guide
13 R81787 [1] Ring
14 T108050 [1] Wear Ring
15 AH144608 [1] Seal
16 AH140482 [1] Seal
17 H149664 [1] Seal
18 JD7784 [1] LubriC.A.Tion Fitting
19 19M8630 [8] Screw
20 ........ [1] Hydraulic Cylinder Barrel
21 AH138072 [1] Hydraulic Cylinder Rod
22 ........ [1] Hydraulic Cylinder
... AH144595 [1] Hydraulic Cylinder Kit



Guarantee:

If you find any quality problems when the goods arrive, please contact us. If this is indeed our responsibility, we will resend the same parts for you free of charge in the next batch of orders. We hope to cooperate with you for a long time. With careful consideration, we can help you win a good reputation from consumers in terms of quality, delivery speed, packaging, etc.



Product Image:

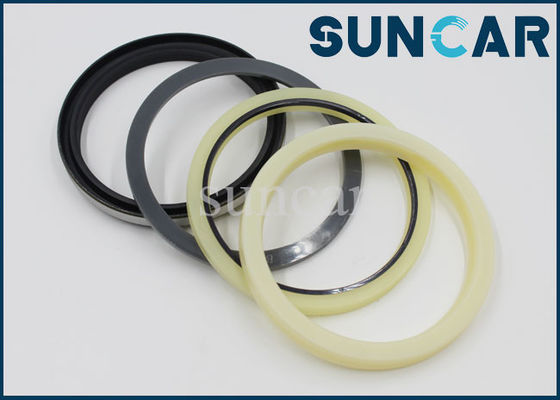

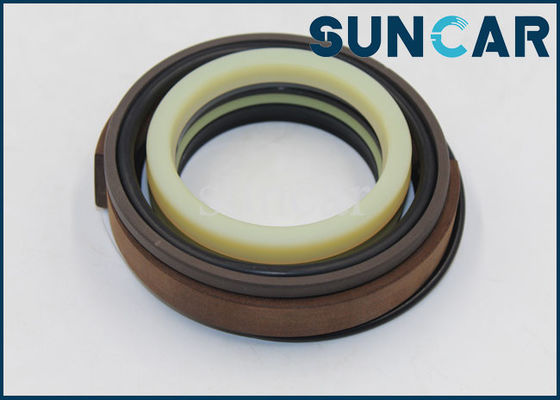

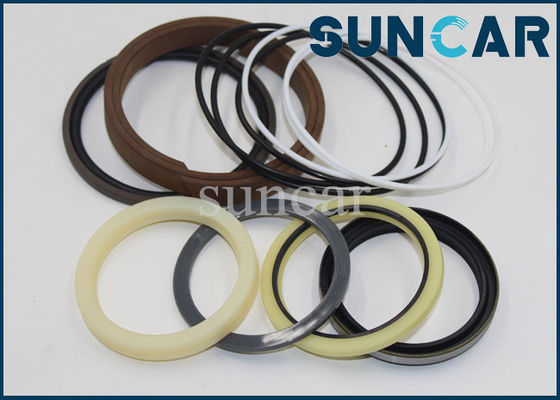

AH144595 Hydraulic Arm Cylinder Repair Seal Kit Fits 690ELC John Deere Models 0

AH144595 Hydraulic Arm Cylinder Repair Seal Kit Fits 690ELC John Deere Models 1
