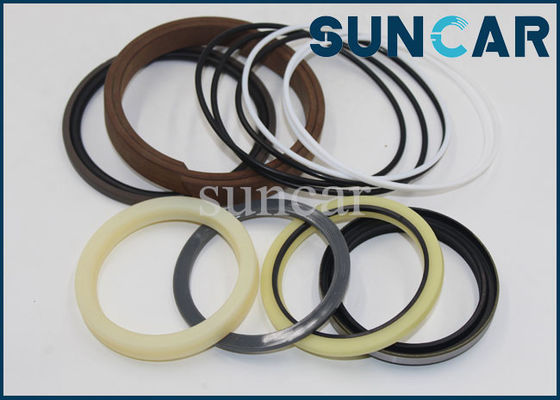

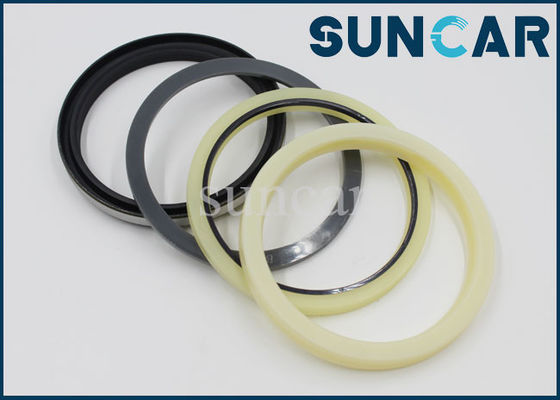

AH144594 Boom Seal Kit Hydraulic Cylinder Repair Kit Fits 653G 690ELC John Deere
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | AH144594 John Deere 653G, 690ELC |
Minimum Order Quantity | Trial order acceptable |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
Supply Ability | 1000 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPart Number | AH144594 | Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
---|---|---|---|
Position | Hydraulic Cylinder Seal Kit | Rod | 85 MM |
Bore | 120 MM | AppliC.A.Tion | Boom(LH) |
High Light | JOHN DEERE Seal Kit,AH144594 Boom Seal Kit,Hydraulic Cylinder Repair Kit |
AH144594 Boom Seal Kit Hydraulic Cylinder Repair Kit Fits 653G 690ELC John Deere
Product Name | John Deere Boom Seal Kit Hydraulic Cylinder Kit |
Models | John Deere 653G, 690ELC |
Part Number | AH144594 |
Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Payment Terms | Western Union, L/C, T/T, D/A, D/P |
CertifiC.A.Tion | ISO9001 |
Warranty | Unavailable |
Customized | OEM & ODM are welcomed |
Size | OEM standard size |
Position | Hydraulic cylinder seal kit |
Condition | New, genuine new |
Rod | 85 MM |
Bore | 120 MM |
Cylinder Number | AH140588 |
Feature | Sealing performance/ wear resistance |
AppliC.A.Tion | Boom(LH) |
Measures For Oil Leakage Due To Inadequate Oil Seal:
1. Master and recognize the basic knowledge of fake and inferior products, and purchase high-quality and standard oil seals.
2. During installation, if the roughness of the outer surface of the shaft diameter is low or there are defects such as rust, burrs, etc., smooth it with a fine emery cloth or whetstone; apply clean engine oil or grease to the lip of the oil seal or the corresponding position of the shaft diameter. Apply sealant to the outer ring of the oil seal, wrap the key way on the shaft with hard paper to avoid scratching the lip of the oil seal, and use a special tool to rotate and press the oil seal inwards. Do not smash the hard seal to prevent deformation of the oil seal or squeeze the spring and fail; If there is lip cuffing, the spring falls off and the oil seal is skewed, It must be removed and reinstalled. It should be noted that when the shaft diameter is not worn and the spring force of the oil seal spring is sufficient, do not tighten the inner spring without authorization.
3. The oil seals applied to machinery generally have to be inspected, maintained and maintained when the general working conditions are poor, the ambient temperature difference is large, the dust is excessive, and the vibration of the machine tool frequently changes the stress condition of the machine parts.
4. If the shaft diameter and bearing are seriously worn; The rubber seal oil is aging or the spring is invalid, etc., repair and replace the corresponding parts in time.

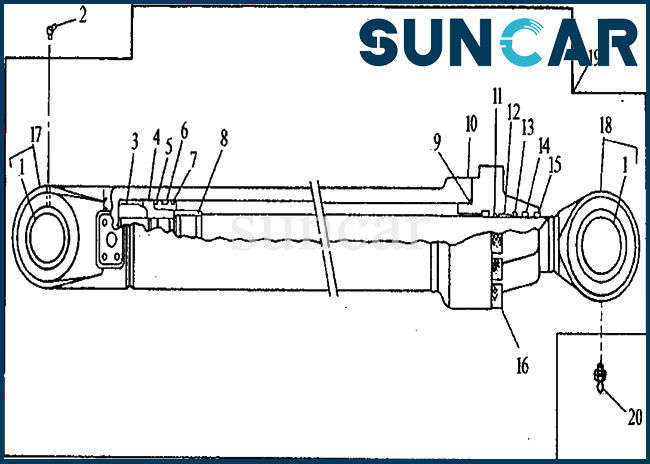

Related Parts:
Pos. | Part No | Qty | Parts name |
1 | H144209 | [2] | Bushing |
1 | TH102446 | [4] | Seal |
2 | JD7799 | [1] | LubriC.A.Tion Fitting |
3 | H144235 | [1] | Nut |
4 | H144223 | [1] | Piston |
5 | AH138083 | [1] | Seal |
6 | H144226 | [2] | Wear Ring |
7 | H144229 | [2] | Back-Up Ring |
8 | H144232 | [1] | Cushion |
9 | H144919 | [1] | O-Ring |
10 | H146298 | [1] | Hydr. Cylinder Rod Guide |
11 | R81788 | [1] | Ring |
12 | AT264272 | [1] | Bushing |
13 | AH144607 | [1] | Seal |
14 | AH140481 | [1] | Seal |
15 | H149663 | [1] | Seal |
16 | 19M8629 | [8] | Screw |
17 | AH144655 | [1] | Hydraulic Cylinder Barrel |
17 | AH144654 | [1] | Hydraulic Cylinder Barrel |
18 | AH138071 | [1] | Hydraulic Cylinder Rod |
19 | AH144674 | [1] | Hydraulic Cylinder |
19 | ........ | [1] | Cylinder |
20 | JD7769 | [1] | LubriC.A.Tion Fitting |
... | AH144594 | [1] | Hydraulic Cylinder Kit |
Product Show:
