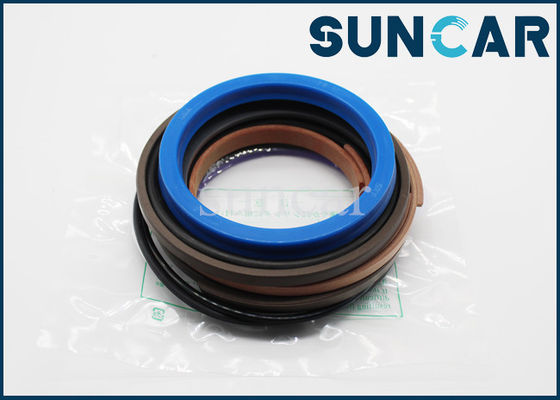

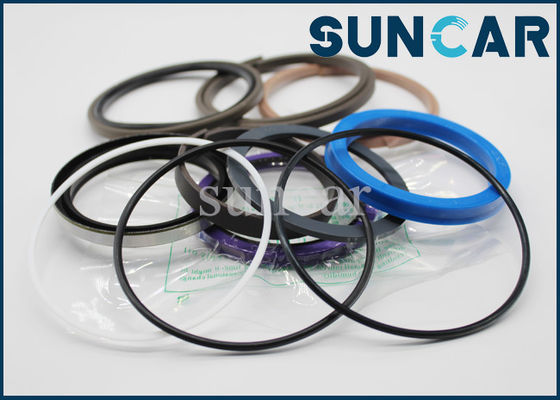

LZ00455 CASE Hydraulic Cylinder Service Kit CX135SR Backhoe boom cylinder Seal Repair Kit
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | LZ00455 CASE CX135SR |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
| Supply Ability | 3000 set per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hydraulic Cylinder Service Kit | Part Number | LZ00455 |
|---|---|---|---|
| Quality | Original Quality, High Performance | Condition | 100% New |
| Shipping Mode | By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.) | AppliC.A.Tion | CASE Backhoe |
| High Light | CASE Seal Kit,Boom Cylinder Seal Repair Kit,Hydraulic Cylinder Service Kit |
||
Product Description
LZ00455 CASE Hydraulic Cylinder Service Kit CX135SR Backhoe Boom Cylinder Seal Repair Kit
| Product Name | LZ00455 CASE Hydraulic Cylinder Service Kit CX135SR Backhoe Boom Cylinder Seal Repair Kit |
| Model Number | CASE Backhoe |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | LZ00455 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Oil leakage prevention, waterproof, automotive parts |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Uses | Good oil resistance, wear resistance, and corrosion resistance |
| Size | standrad |

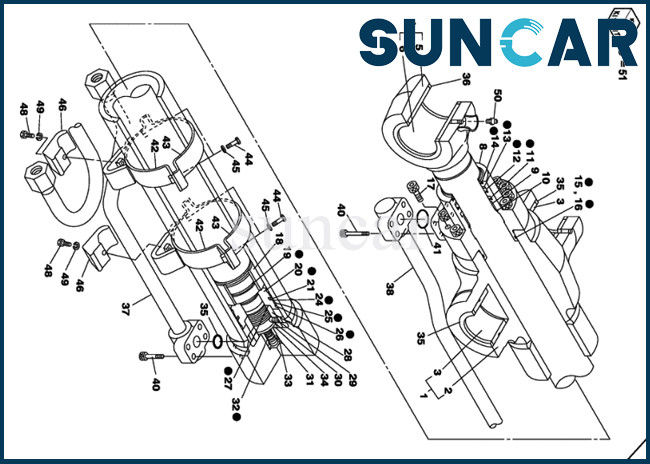

Related Parts:
| Pos. | Part No | Qty | Parts name |
| KMV2551 | [1] | HYDRAULIC CYLINDER | |
| 1 | LR00936 | [1] | HYD CYL SLEEVE |
| 3 | LKU0163 | [2] | BUSHING |
| 4 | LB00818 | [1] | PISTON ROD |
| 6 | 161030A1 | [1] | BUSHING |
| 8 | LU00120 | [1] | CYLINDER END CAP |
| 9 | 160843A1 | [1] | BUSHING |
| 10 | 160870A1 | [1] | BACK-UP RING |
| 11 | LE00880 | [1] | RING |
| 12 | 160781A1 | [1] | RING,75mm ID x 90mm OD x 9mm Thk |
| 13 | 160808A1 | [1] | BACK-UP RING |
| 14 | 160783A1 | [1] | WIPER SEAL |
| 15 | 154721A1 | [1] | O-RING,99.4mm ID x 3.1mm Width |
| 16 | 161880A1 | [1] | BACK-UP RING |
| 17 | 108R014Z065R | [12] | BOLT |
| 18 | 160872A1 | [1] | RING |
| 19 | LE00881 | [1] | RING |
| 20 | 161911A1 | [1] | PISTON |
| 21 | 155330A1 | [1] | SEALING RING |
| 24 | 161881A1 | [2] | BACK-UP RING |
| 25 | LE00725 | [2] | RING |
| 26 | 161883A1 | [2] | BACK-UP RING |
| 27 | LH00036 | [1] | COMPRESSION SPRING |
| 28 | LA00773 | [1] | SPECIAL NUT |
| 29 | 156223A1 | [1] | SET SCREW |
| 30 | 155977A1 | [1] | BALL |
| 31 | LAU0182 | [1] | RING |
| 32 | LE00727 | [1] | RING |
| 33 | 160876A1 | [2] | STOP |
| 34 | LE00902 | [1] | RING |
| 35 | 160482A1 | [2] | WIPER SEAL |
| 36 | 164446A1 | [2] | WIPER SEAL |
| 37 | LR01190 | [1] | HYD TUBE |
| 38 | LR01189 | [1] | HYD TUBE |
| 40 | 87016471 | [8] | HEX SOC SCREW,M10 x 30mm, Cl 12.9 |
| 41 | 154528A1 | [2] | O-RING |
| 42 | LD00074 | [2] | CLAMP BRACKET |
| 43 | 161925A1 | [2] | MOUNTING CLIP |
| 44 | 158131A1 | [4] | BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9 |
| 45 | 156227A1 | [4] | WASHER |
| 46 | 155717A1 | [2] | COLLAR |
| 48 | 628-12055 | [2] | BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9, Full Thd |
| 49 | 892-10012 | [2] | LOCK WASHER,M12 |
| 50 | 153630A1 | [1] | LUBE NIPPLE |
| 51 | LZ00455 | [1] | SEAL KIT |
The Reason Why Choose Us?
1. Quality Control – SUNCAR uses raw materials which made for high quality only,same standard as OEM genuine parts.We have never compromised our quality with inferior materials. Our insistence in high quality for raw materials, mold design, production, and packing make us stand out from the other factories
2. Technical Support – Our mold design and development department is comprised of knowledgeable people. SUNCAR is equipped with the advanced CNC mold developing machines.We test all of the raw materials and study the most advanced ones.
3. Research & Development- We have a strong research and development capacities, constantly seeking new technologies and methods to achieve higher performance, competitiveness and quality.
4. Resource Integration – For brand:C.A.TERP ILLAR, HIAT CHI, KOMATSU, KOBELCO(NEW HOLLAND) some of SUNCARSUNCARSUNCARSUNCARVOLVO, JCB, JOHN DEERE, CASE, DOOSAN, HYUNDAI and rock breaker(hammer breaker).
5. Sample Test –Samples are always available for checking quality and can be dispatched to you very quickly.
6. Stock –More than 5,000 items stocked and available in our inventory, both inch and metric sizes are available. One stop service and immediate delivery.
7. After Sales –6 months warranty. We provide a wide variety of support, such as servicing and maintenance support.
