LZ00476 CX330 CASE Crawler Excavator bucket cylinder repair sealing kit Model inner parts
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
CertifiC.A.Tion | ISO9001 |
Minimum Order Quantity | Acceptiable trial order |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
Supply Ability | 1500 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel Number | HEAVY EQUIPMENT CASE CX330 | Product Name | Cylinder Repair Seal Kit |
---|---|---|---|
Part No. | LZ00476 | AppliC.A.Tion | Bucket Cylinder ASSY |
Feature | High-strength, Higher-toughness, Hard-wearing | After-sales Service Provided | Online Support,Video Technical Support |
High Light | CASE Seal Kit,Bucket Cylinder Repair Kit,Model Sealing Kit |

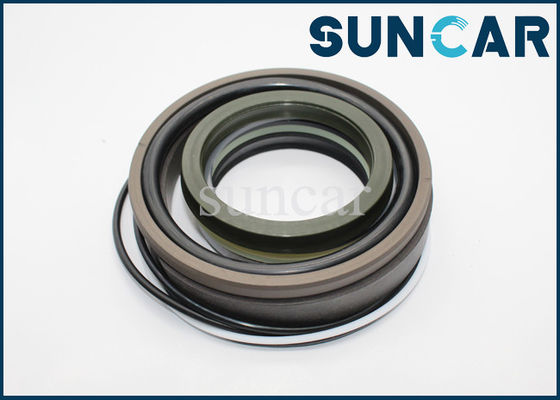

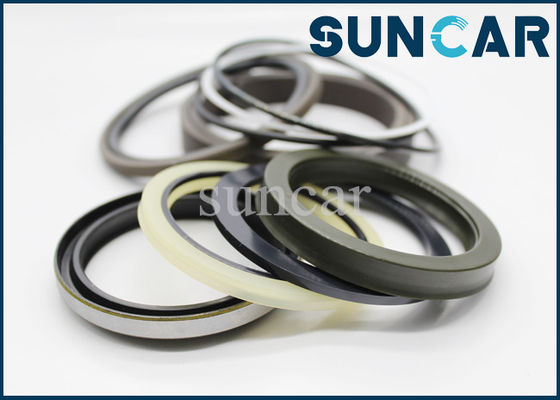

LZ00476 CX330 CASE Crawler Excavator Bucket Cylinder Repair Sealing Kit Model Inner Parts
Products Name: | LZ00476 CX330 CASE Crawler Excavator Bucket Cylinder Repair Sealing Kit Model Inner Parts |
Material: | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
Type: | Hydraulic Cylinder Inner Spare Parts |
Model Number: | CASE CX330 |
Color: | Customer Required |
Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
Supply Ability: | 1500 Piece/Pieces per Month |
MOQ: | 1 SET(negotiation) |
Feature: | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
Brand Name: | Suncar/OEM |
CertifiC.A.Tion: | ISO9001 |
Shipping Mode: | By air, by sea ,by express (DHL,Fedex,UPS ,TNT etc.) |
Size | Standard Size |
Weight | 0.5kg |
Advantages:
1. oil seal structure simple, easy to manufacture.
Simple seals can be moulded once, and even the most complex seals are manufactured using the same process
Not compliC.A.Ted.
The metal frame oil seal can be made of metal and rubber only through pressing, bonding, inlaying, moulding and other procedures.
2. oil seal light weight, less consumables.
Each oil seal is a combination of thin-walled metal and rubber parts, and the material consumption is minimal, thus the weight of each seal is very light.
3. the oil seal installation position is small, the axial size is small, easy to process, and make the machine compact.
4. oil seal sealing function is good, long service life.
To the vibration of the machine and the eccentricity of the spindle have a certain adaptability.
5. oil seal removal easy, convenient inspection.
6. Oil seals are cheap.

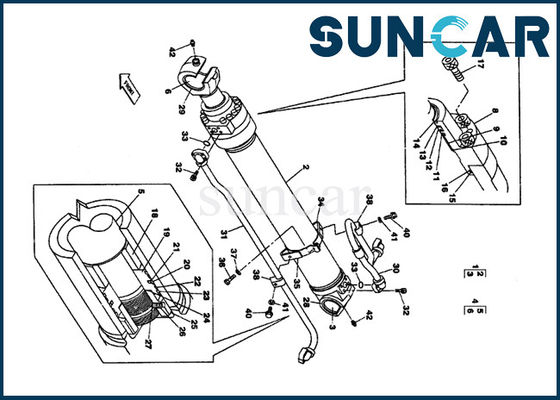

Relation Goods:
Pos. | Part No | Qty | Parts name |
KSV1396 | [1] | BUCKET CYLINDER | |
1 | LR00787 | [1] | HYD CYL SLEEVE |
3 | LB00723 | [1] | BUSHING |
4 | LB00724 | [1] | PISTON ROD |
6 | LB00727 | [1] | BUSHING |
8 | LU00151 | [1] | CYLINDER END CAP |
9 | 160049A1 | [1] | BUSHING |
10 | 155711A1 | [1] | RING, SNAP |
11 | LE00762 | [1] | RING |
12 | LAU0025 | [1] | RING |
13 | LE00738 | [1] | BACK-UP RING |
14 | 159960A1 | [1] | BACK-UP RING |
15 | 154805A1 | [1] | O-RING |
16 | 159997A1 | [1] | BACK-UP RING |
17 | LUU0042 | [1] | BOLT,Hex Skt Hd |
18 | LMU0312 | [1] | BACK-UP RING |
19 | LJ00897 | [1] | JACK PISTON |
20 | LE00543 | [1] | SEALING RING |
21 | 160000A1 | [2] | BACK-UP RING |
22 | LE00950 | [2] | GUIDE RING |
23 | 155309A1 | [2] | RING |
24 | 155733A1 | [1] | SHIM |
25 | LA00738 | [1] | NUT |
26 | 156228A1 | [1] | SET SCREW |
27 | 155981A1 | [1] | BALL |
28 | LE00951 | [2] | WIPER SEAL |
29 | LE00952 | [2] | WIPER SEAL |
30 | LR00789 | [1] | TUBE |
31 | LR00790 | [1] | TUBE |
32 | 861-12040 | [8] | HEX SOC SCREW,M12 x 40mm, Cl 12.9 |
33 | 154543A1 | [2] | O-RING |
34 | LD00080 | [1] | CLAMP BRACKET |
35 | LD00081 | [1] | CLAMP BRACKET |
36 | 158131A1 | [2] | BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9 |
37 | 156227A1 | [2] | WASHER |
38 | 155716A1 | [2] | COLLAR |
40 | 164114A1 | [2] | BOLT |
41 | 892-10012 | [2] | LOCK WASHER,M12 |
42 | 153630A1 | [2] | LUBE NIPPLE |
LZ00476 | [1] | SEAL KIT |
