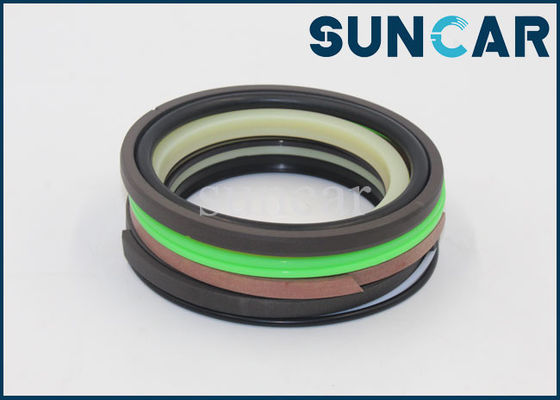

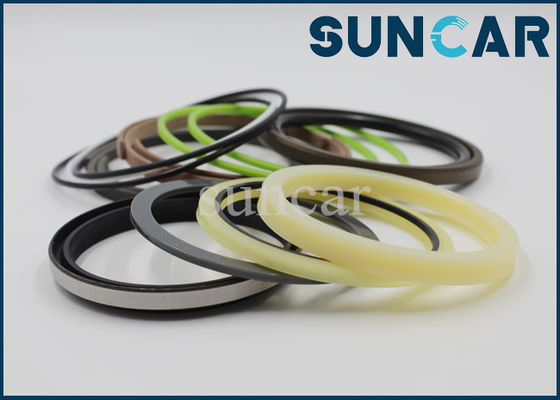

Wear Resistance 4652137 Arm Cylinder Seal Kit 27D John Deere Hydraulic Repair Kits

Brand Name:	SUNCAR
Model Number:	4652137 John Deere 27D
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Part Number:

4652137

Feature:

Sealing Performance/ Wear Resistance

Bore:

65 MM

40 MM

AppliC.A.Tion:

Shipping Mode:

By Air, By Sea, By Express(FedEx, UPS, DHL, TNT, Etc.)

Supply Ability:

1000 set per week

Highlight:

JOHN DEERE Seal Kit

4652137 Arm Cylinder Seal Kit

Deere Hydraulic Repair Kits

Product Description

Wear Resistance 4652137 Arm Cylinder Seal Kit 27D John Deere Hydraulic Repair Kits

Product Name	John Deere Arm Cylinder Seal Kit
Models	John Deere 27D
Part Number	4652137
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, L/C, T/T, D/A, D/P
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
Size	OEM standard size
Position	Hydraulic cylinder seal kit
Condition	New, genuine new
Rod	40 MM
Bore	65 MM
Feature	Sealing performance/ wear resistance
AppliC.A.Tion	Arm

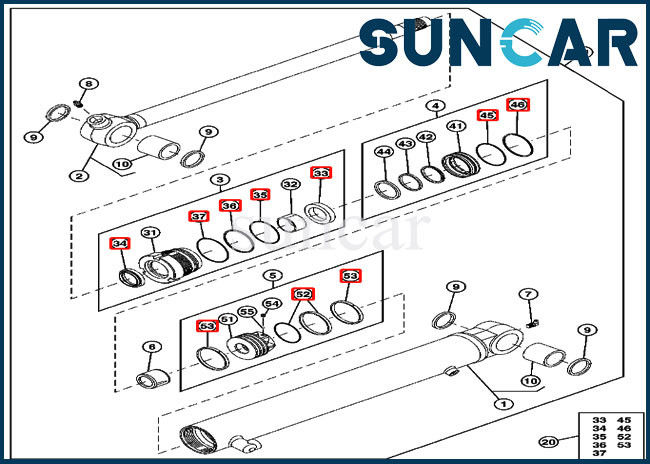

Related Parts:

Pos.	Part No	Qty	Parts name
1	0984901G	[1]	Hydraulic Cylinder Barrel
2	0984902G	[1]	Hydraulic Cylinder Rod
3	0948204G	[1]	Cylinder Head
4	984903	[1]	Retainer
5	948203	[1]	Piston
5	430906	[1]	Seal
5	478720	[1]	Set Screw
5	478719	[1]	Ball
5	891908	[1]	Ring
6	948110	[1]	Cushion
7	AH226482	[1]	LubriC.A.Tion Fitting
8	TH100074	[1]	LubriC.A.Tion Fitting
9	4473086	[4]	Dust Shield
10	4332740	[2]	Bushing
11	4643502G	[1]	Hydraulic Cylinder
20	4652137	[AR]	Seal Kit
31	0891904G	[1]	Hydraulic Cylinder Cap
32	891723	[1]	Bushing
33	391715	[1]	Ring
34	682001	[1]	Ring
35	CH18696	[1]	Packing
36	891905	[1]	Back-Up Ring
37	AT264334	[1]	O-Ring
41	984904	[1]	Retainer
42	948105	[1]	Spacer
43	948106	[1]	Isolator
44	948107	[1]	Bushing
45	CH18696	[1]	Packing
46	984905	[1]	Back-Up Ring
51	948203	[1]	Piston
52	430906	[1]	Seal
53	891908	[2]	Ring
54	22M7080	[1]	Set Screw
55	370110	[1]	Ball

Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

When You Open And Repair The Cylinder, Please Follow Below Operation:

1. Take off the cylinder from the machine.

2. Remove the head assembly and the rod assembly from the stick cylinder group.

3. If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.

4. Measure the seal kits before fitting.

5. Install the seals: after fix the cylinder assy, test it first before re-install the stick cylinder group on the machine.

Product Image:
