4696459 Swing Cylinder Repair Sealing Kit Deere 85D 85G Hydraulic CYL Oil Seal Kits
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 4696459 John Deere 85D, 85G |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
| Supply Ability | 1000 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | John Deere Swing Cylinder Repair Sealing Kit | Part Number | 4696459 |
|---|---|---|---|
| Rod | 60 MM | Bore | 110 MM |
| Cylinder Number | 9280680 | AppliC.A.Tion | Swing |
| High Light | JOHN DEERE Seal Kit,Swing Cylinder Repair Sealing Kit,4696459 Hydraulic CYL Oil Seal Kits |
||
Product Description
4696459 Swing Cylinder Repair Sealing Kit Deere 85D 85G Hydraulic CYL Oil Seal Kits
| Product Name | John Deere Swing Cylinder Repair Sealing Kit |
| Models | John Deere 85D, 85G |
| Part Number | 4696459 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Rod | 60 MM |
| Bore | 110 MM |
| Cylinder Number | 9280680 |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Swing |

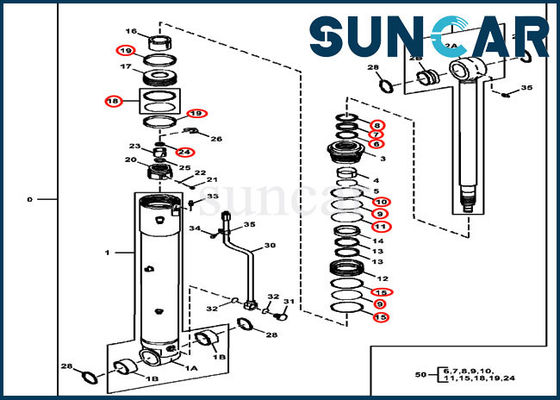

Parts On Group Swing Cylinder Components:
| Pos. | Part No | Qty | Parts name |
| 0 | 9280680 | [1] | Hydraulic Cylinder |
| 1 | 1189701J | [1] | Hydraulic Cylinder Barrel |
| 1A. | ........ | [1] | Hydraulic Cylinder Barrel |
| 1B. | 4365897 | [2] | Bushing |
| 2 | 0915003J | [1] | Rod |
| 2A. | ........ | [1] | Rod |
| 2B. | 4445478 | [1] | Bushing |
| 3 | 915005 | [1] | Cylinder Head |
| 4 | 826907 | [1] | Bushing |
| 5 | 225704 | [1] | Snap Ring |
| 6 | 826908 | [1] | Ring |
| 7 | AT264378 | [1] | Ring |
| 8 | AT264377 | [1] | Ring |
| 9 | AT264223 | [2] | O-Ring |
| 10 | 901704 | [1] | Back-Up Ring |
| 11 | T110443 | [1] | O-Ring |
| 12 | 901705 | [1] | Holder |
| 13 | 863305 | [2] | Seal |
| 14 | 863306 | [1] | Locking Collar |
| 15 | AT264259 | [2] | Back-Up Ring |
| 16 | 863307 | [1] | Ball Bearing |
| 17 | 915006 | [1] | Piston |
| 18 | AT264386 | [1] | Ring |
| 19 | 1119106 | [2] | Ring |
| 20 | 789606 | [1] | Nut |
| 21 | 22M7139 | [1] | Set Screw |
| 22 | 400R | [1] | Ball |
| 23 | AT153939 | [1] | Bearing |
| 24 | 667010 | [1] | Seal |
| 25 | AT153941 | [2] | Stop |
| 26 | 409609 | [1] | Ring |
| 28 | 341304 | [4] | Seal |
| 30 | 1189704J | [1] | Pipe |
| 31 | 854209 | [1] | Plug |
| 32 | 4028265 | [2] | O-Ring |
| 33 | 854210 | [1] | Holder |
| 34 | 826816 | [1] | Bolt |
| 35 | TH100074 | [2] | LubriC.A.Tion Fitting |
| 50 | 4696459 | [1] | Seal Kit |
How To Buy:
Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.
- "Product name + part number + quantity".
- Expected packaging: general packaging or customized packaging.
Step 2: Quotation and invoice
- We will send the quotation to you as soon as possible. Once confirmed, we will issue an official invoice and provide bank information.
Step 3: Payment
- Pay to our account and send us a bank statement.
- Payment method: Western Union, T/T, Paypal, Transfer.
Step 4: Delivery
- After receiving the payment, we will arrange the goods to be delivered to your designated address in China as soon as possible.
Step 5: Receipt
- You just need to wait patiently for the goods.

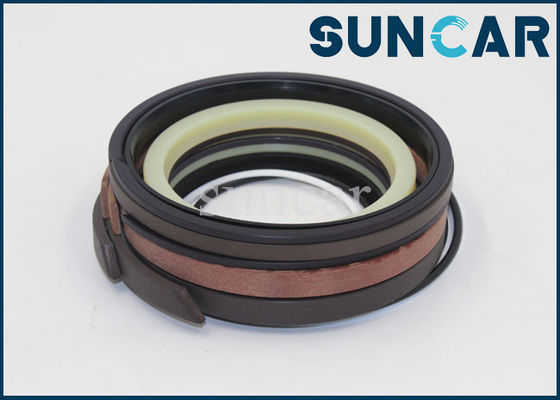

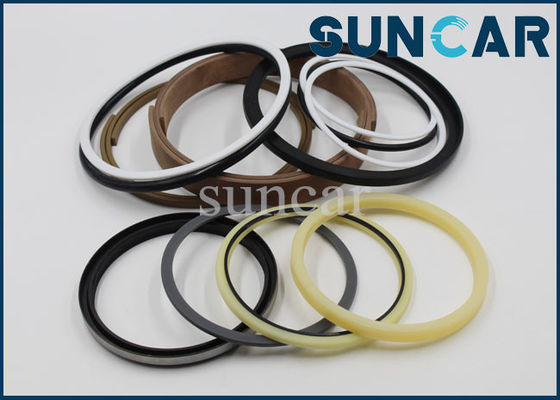

Product Image:
