U-Ring ZGAQ-02215 Hyundai O-Ring Seal Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number HYUNDAI R170W-7, R170W-7A, R200W-7 R200W-7A,...
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 3000 pcs per week
Product Details
Part Number ZGAQ-02215 Application Hyundai Wheel Loaders/ Excavator
Product Name U-Ring Position Hydraulic Oil Seals
Condition New, Genuine New Applicable Industries Building Material Shops, Machinery Repair Shops, Retail, Construction Work
High Light

Wear Ring Seals

,

ZGAQ-02215 U-Ring

Leave a Message
Product Description



U-Ring ZGAQ-02215 Hyundai O-Ring Seal Kit



Product Name U-Ring
Models

HYUNDAI R170W-7, R170W-7A, R200W-7 R200W-7A,

R170W-9 , R210W-9, R210W9A

Part Number ZGAQ-02215
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
Size OEM standard size
Position Hydraulic oil seal
Condition New, genuine new
Sample Available
Applicable Industries Building Material Shops, Machinery Repair Shops, Retail, Construction work
Feature High Sealing performance/ wear resistance
Application Hyundai wheel loaders/ excavator
Function Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power



Advantages:

(1) Quality stability.

(2) Professional R&D team.

(3) We have all specifications of our products and can meet customers’ product diversity needs.

(4) We prefer to accept your lower MOQ in order to relieve your purchasing stress.

(5) Our markets are widely distributed to North Europe, East Europe, West Europe, North America, South America, East Asia, Southeast Asia, Middle East, Africa, Australia, etc. and enjoy good reputation.



Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

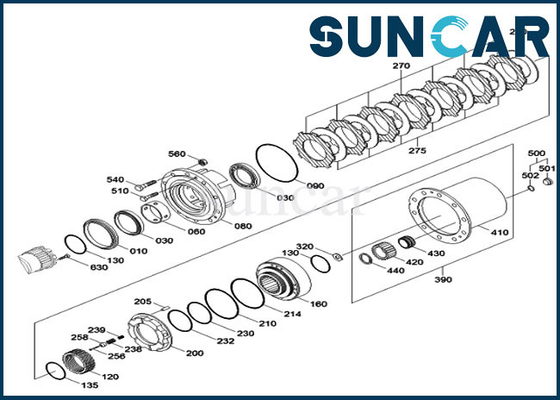

Related Parts:

Pos. Part No Qty Parts name
10 ZGAQ-01266 [2] SEAL-SHAFT
30 ZGAQ-02205 [4] BEARING-TAPER ROLLER
60 ZGAQ-02206 [2] BUSHING-SPACER
80 ZGAQ-03591 [2] HUB
90 ZGAQ-02916 [2] O-RING
120 ZGAQ-02208 [2] CARRIER-DISC
130 ZGAQ-02209 [4] O-RING
135 ZGAQ-02210 [2] O-RING
160 ZGAQ-02211 [2] GEAR-RING
200 ZGAQ-03212 [2] PISTON
205 ZGAQ-02213 [8] PIN-CYLIDRICAL
210 ZGAQ-01287 [2] U-RING
214 ZGAQ-02214 [2] RING-SUPPORT
230 ZGAQ-02215 [2] U-RING
232 ZGAQ-02216 [2] RING-SUPPORT
238 ZGAQ-01292 [16] SPRING-COMPRESSURE
239 ZGAQ-02217 [16] SPRING-COMPRESSURE
256 ZGAQ-02219 [16] SCREW-HEX
258 ZGAQ-01291 [16] SLEEVE-SPRING
270 ZGAQ-02220 [12] DISC-O/CLUTCH
275 ZGAQ-02330 [10] DISC-I/CLUTCH(2.5)
280 ZGAQ-02331 [2] DISC-I/CLUTCH(2.0)
280 ZGAQ-02332 [2] DISC-I/CLUTCH(3.0)
280 ZGAQ-02330 [2] DISC-I/CLUTCH(2.5)
320 ZGAQ-01315 [2] WASHER-THRUST(2.5)
390 ZGAQ-03213 [2] CARRIER-PLANET
410 ZGAQ-03214 [1] CARRIER-PLANET
420 ZGAQ-03215 [3] GEAR-PLANETARY
430 ZGAQ-03515 [3] BEARING-ROLLER
440 ZGAQ-01310 [3] RING-RETAINING
500 ZGAQ-03581 [2] PLUG-SCREW
501 ZGAQ-02191 [1] PLUG-SCREW
502 ZGAQ-02192 [1] O-RING
510 ZGAQ-02061 [4] SCREW-HEX
540 ZGAQ-03217 [20] BOLT-WHEEL
560 ZGAQ-03164 [20] NUT-WHEEL
630 ZGAQ-02227 [2] SCREW-CAP



Contact information:

If you are looking for a company to help you building your own brand of seals/ seal kits/ o-ring kits, or any other OEM services for other items. You have found the right one! Guangzhou Suncar Construction Machinery Co., Ltd. provides professional OEM services on seals, seal kits, o-ring kits and excavator spare parts. For more details, please contact us. We will reply you as soon as possible.



Product Show:

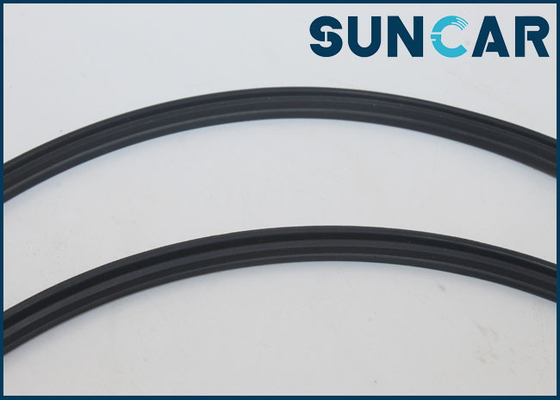

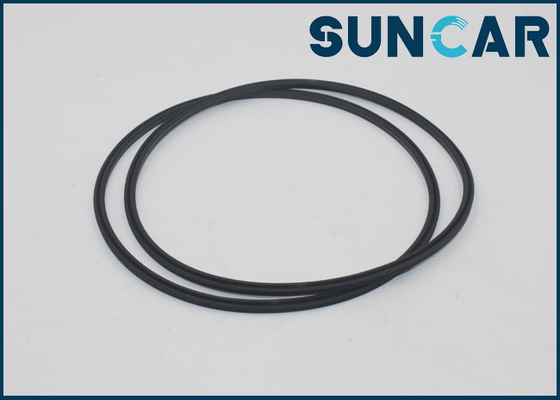

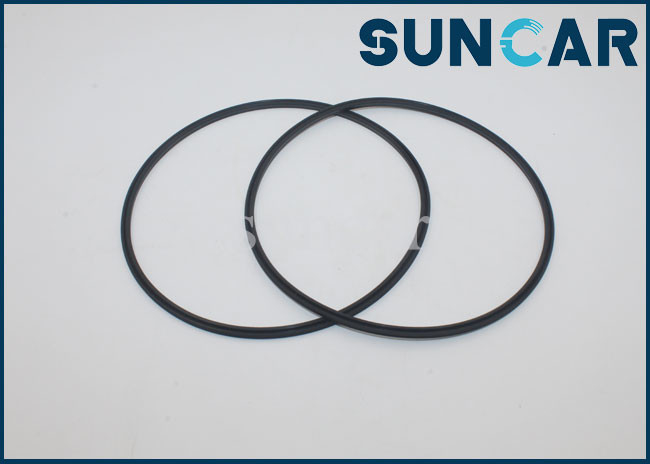

U-Ring ZGAQ-02215 Hyundai O-Ring Seal Kit 0

U-Ring ZGAQ-02215 Hyundai O-Ring Seal Kit 1
