Cassette Ring ZGAQ-00100 Wheel Hub Oil Seal For R200W-7 R200W-7A Hyundai
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | HYUNDAI R200W-7, R200W-7A, R210W-9, HL780-7A, HL7803A |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
| Supply Ability | 3000 pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | ZGAQ-00100 | AppliC.A.Tion | Hyundai Wheel Excavator |
|---|---|---|---|
| Product Name | Wheel Hub Oil Seal | Position | Hydraulic Oil Seals |
| Condition | New, Genuine New | Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction Work |
| High Light | Rotary Shaft Seals,ZGAQ-00100 Wheel Hub Oil Seal,Hydraulic Oil Seal |
||
Product Description
Cassette Ring ZGAQ-00100 Wheel Hub Oil Seal For R200W-7 R200W-7A Hyundai
| Product Name | Wheel Hub Oil Seal |
| Models | HYUNDAI R200W-7, R200W-7A, R210W-9, HL780-7A, HL7803A |
| Part Number | ZGAQ-00100 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Size | OEM standard size |
| Position | Hydraulic oil seal |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Hyundai wheel excavator |
| Function | Prevent oil leakage to assure the working pressure of the hydraulic system, to maintain its power |
Advantages Of Oil Seal:
1. Oil seal structure is simple and easy to manufacture. Simple oil seal can be molded in one time, even the most compliC.A.Ted oil seal, the manufacturing process is also oil seal not compliC.A.Ted. The metal skeleton oil seal can also form the required oil seal between metal and rubber only by stamping, gluing, inlaying, molding and other processes.
2. Oil seal has light weight and few consumables. Each type of oil seal is a combination of thin-walled metal parts and rubber parts, and its material consumption is very small, so the weight of each oil seal is very light.
3. The installation position of the oil seal is small, the axial size is small, easy to process, and make the machine compact.
4. Oil seal has good sealing performance and long service life. It has certain adaptability to the vibration of the machine and the eccentricity of the main shaft.
5. Oil seal is easy to disassemble and convenient for inspection.
6.The oil seal is cheap.

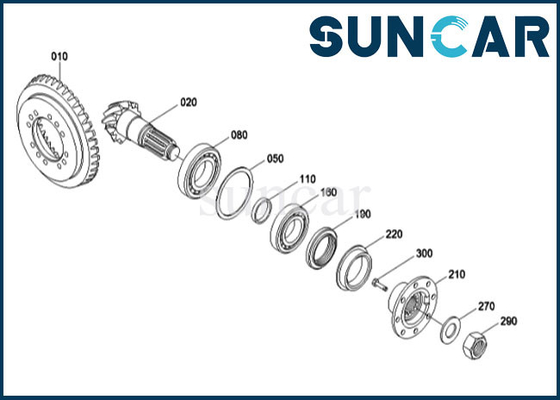

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | @ | [1] | FRONT AXLE |
| 10 | ZGAQ-00100 | [2] | RING-CASSETTE |
| 30 | ZGAQ-02205 | [2] | BEARING-TAPER ROLLER |
| 40 | ZGAQ-02328 | [2] | BEARING-TAPER ROLLER |
| 80 | ZGAQ-02329 | [2] | HUB |
| 90 | ZGAQ-01269 | [2] | O-RING |
| 120 | ZGAQ-02208 | [2] | CARRIER-DISC |
| 130 | ZGAQ-02209 | [4] | O-RING |
| 135 | ZGAQ-02210 | [2] | O-RING |
| 160 | ZGAQ-02211 | [2] | GEAR-RING |
| 200 | ZGAQ-02212 | [2] | PISTON |
| 205 | ZGAQ-02213 | [8] | PIN-CYLIDRICAL |
| 210 | ZGAQ-01287 | [2] | U-RING |
| 214 | ZGAQ-02214 | [2] | RING-SUPPORT |
| 230 | ZGAQ-02215 | [2] | U-RING |
| 232 | ZGAQ-02216 | [2] | RING-SUPPORT |
| 238 | ZGAQ-01292 | [16] | SPRING-COMPRESSURE |
| 239 | ZGAQ-02217 | [16] | SPRING-COMPRESSURE |
| 256 | ZGAQ-02219 | [16] | SCREW-HEX |
| 258 | ZGAQ-01291 | [16] | SLEEVE-SPRING |
| 270 | ZGAQ-02220 | [14] | DISC-O/CLUTCH |
| 275 | ZGAQ-02330 | [12] | DISC-I/CLUTCH(2.5) |
| 280 | ZGAQ-02331 | [2] | DISC-I/CLUTCH(2.0) |
| 280 | ZGAQ-02332 | [2] | DISC-I/CLUTCH(3.0) |
| 280 | ZGAQ-02330 | [2] | DISC-I/CLUTCH(2.5) |
| 320 | ZGAQ-01311 | [2] | WASHER-THRUST(1.5) |
| 320 | ZGAQ-01312 | [2] | WASHER-THRUST(1.7) |
| 320 | ZGAQ-01313 | [2] | WASHER-THRUST(2.0) |
| 320 | ZGAQ-01314 | [2] | WASHER-THRUST(2.2) |
| 320 | ZGAQ-01315 | [2] | WASHER-THRUST(2.5) |
| 320 | ZGAQ-01316 | [2] | WASHER-THRUST(2.7) |
| 320 | ZGAQ-01317 | [2] | WASHER-THRUST(3.0) |
| 390 | ZGAQ-02224 | [2] | CARRIER-PLANET |
| 410 | ZGAQ-02225 | [1] | CARRIER-PLANET |
| 420 | ZGAQ-02226 | [3] | GEAR-PLANET |
| 430 | ZGAQ-01307 | [3] | BEARING-ROLLER |
| 440 | ZGAQ-01308 | [6] | WASHER |
| 450 | ZGAQ-01309 | [6] | RING-SNAP |
| 460 | ZGAQ-01310 | [3] | RING-RETAINING |
| 500 | @ | [2] | PLUG-SCREW |
| 510 | ZGAQ-02191 | [2] | PLUG-SCREW |
| 520 | ZGAQ-02192 | [2] | O-RING |
| 530 | ZGAQ-01322 | [4] | SCREW-CAP |
| 540 | ZGAQ-02228 | [20] | BOLT-WHEEL |
| 540 | ZGAQ-02936 | [20] | BOLT-WHEEL |
| 600 | ZGAQ-03164 | [20] | NUT-WHEEL |
| 630 | ZGAQ-02227 | [2] | SCREW-CAP |

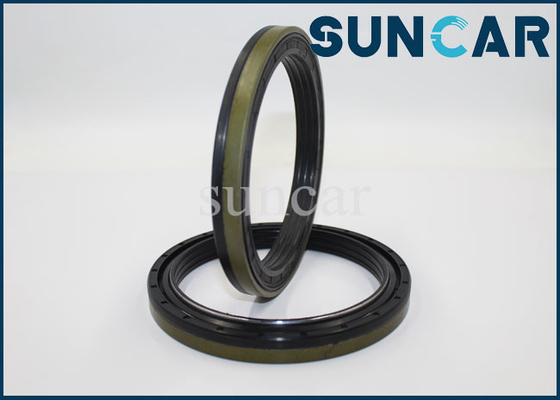

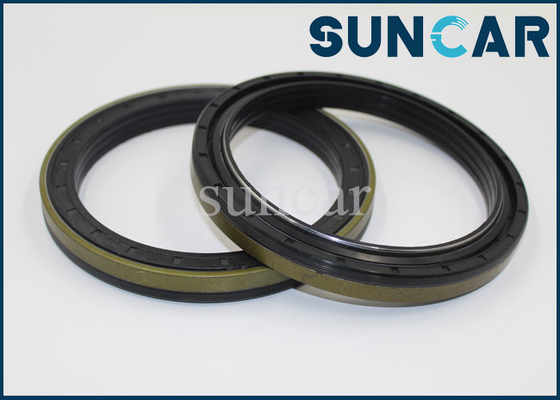

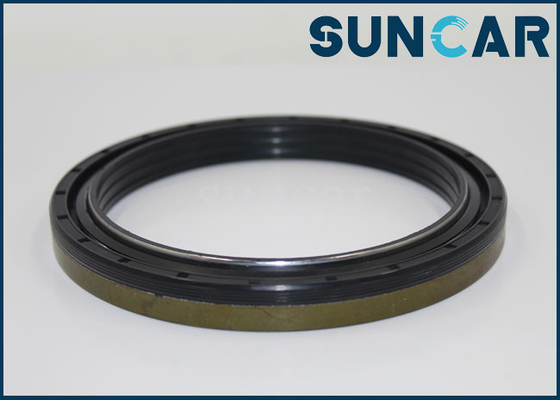

Product Image:
