LZ00542 Blade Sealing Kit Dozer Cylinder Seal Kit For CX225SR CX235C SR CASE

Place of Origin	CHINA(MAINLAND)
Brand Name	SUNCAR
Model Number	LZ00542 CASE CX225SR, CX235C SR
CertifiC.A.Tion	ISO9001
Minimum Order Quantity	Trial order acceptable
Price	Negotiation
Packaging Details	PP bag inside, carton box outside
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment Terms	Western Union, Paypal, T/T, Transfer
Supply Ability	1000 set per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Blade/ Dozer Cylinder Seal Kit	Part Number	LZ00542
Sample	Available	Feature	High Sealing Performance/ Wear Resistance
Warranty	Unavailable	AppliC.A.Tion	Blade/ Dozer
High Light	CASE Seal Kit , LZ00542 Blade Sealing Kit , Dozer Cylinder Seal Kit

Leave a Message

Product Description

LZ00542 Blade Sealing Kit Dozer Cylinder Seal Kit For CX225SR CX235C SR CASE

Product Name	Blade/ Dozer Cylinder Seal Kit
Model	CASE CX225SR, CX235C SR
Part Number	LZ00542
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic cylinder seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building Material Shops, Machinery Repair Shops, Retail, Construction work
Feature	High Sealing performance/ wear resistance
AppliC.A.Tion	Blade/ Dozer

Storage Precautions:

When storing seals, please pay attention to the following items:

1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.

2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.

3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.

4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.

5. Do not place the seal near the motor or where ozone is generated.

6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.

7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.

8. The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.

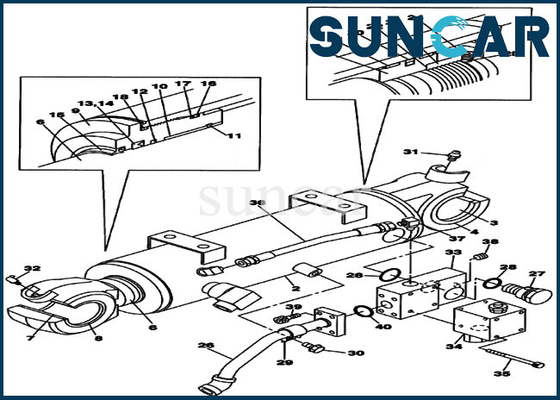

Related Parts:

Pos.	Part No	QTY	Parts name
. .	KRV15250	[1]	HYDRAULIC CYLINDER
. .	KRV15250R	[1]	REMAN-HYD CYLINDER
. .	KRV15250C	[1]	CORE-HYD CYLINDER
2	LR014860	[1]	HYD CYL SLEEVE
3	161031A1	[1]	BUSHING
4	164445A1	[2]	RING
5	LB00849	[1]	PISTON ROD
6	LB00850	[1]	PISTON ROD
7	161031A1	[1]	BUSHING
8	164445A1	[2]	RING
9	LU00173	[1]	PISTON ROD
10	155416A1	[1]	BUSHING
11	155696A1	[1]	RING, SNAP
12	155136A1	[1]	SCRAPER RING
13	155132A1	[1]	RING
14	155241A1	[1]	BACK-UP RING
15	158033A1	[1]	WIPER SEAL
16	154769A1	[1]	O-RING
17	LE00433	[1]	BACK-UP RING
18	154775A1	[1]	O-RING
19	LJ01017	[1]	PISTON
20	155323A1	[1]	SEALING RING
21	LE00910	[2]	SEALING STRIP
22	155737A1	[1]	SHIM
23	LA00675	[1]	SPECIAL NUT
24	156223A1	[1]	SET SCREW
25	155977A1	[1]	BALL
26	LR014870	[1]	HYD TUBE
27	LK00348	[1]	PLUG
28	154515A1	[2]	O-RING
29	LS00179	[1]	BRACKET
30	LA00789	[1]	BOLT,Spcl
31	153630A1	[1]	LUBE NIPPLE
32	153631A1	[1]	LUBE NIPPLE
33	LR014880	[1]	PLATE
34	LJ00990	[1]	SAFETY VALVE
35	863-8080	[4]	HEX SOC SCREW
36	LK005590	[1]	HOSE
37	LK00402	[1]	FITTING
38	TLU0003	[1]	PLUG
39	861-8025	[4]	HEX SOC SCREW
40	154499A1	[1]	O-RING
41	LZ00542	[1]	SEAL KIT
