Name: CX460 CX470B Case Oil Seal LZ008350 Arm Cylinder Service Kit Replacement Kits
Brand: Guangzhou Suncar Seals Co., Ltd.
SKU: LZ008350 CASE CX460, CX470B
Availability: InStock

Brand Name:	SUNCAR
Model Number:	LZ008350 CASE CX460, CX470B
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, Paypal, T/T, Transfer

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Product Name:

Arm Cylinder Service Kit

Part Number:

LZ008350

AppliC.A.Tion:

Arm

C.A.Tegory Group:

Hydraulic Cylinder Seal Kit

Feature:

High Sealing Performance/ Wear Resistance

Warranty:

Unavailable

Supply Ability:

1000 set per week

Highlight:

CASE Seal Kit

Z008350 Arm Cylinder Service Kit

Hydraulic Cylinder Oil Seal Kit

Product Description

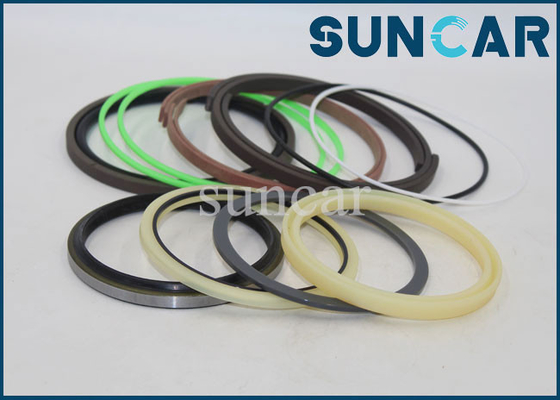

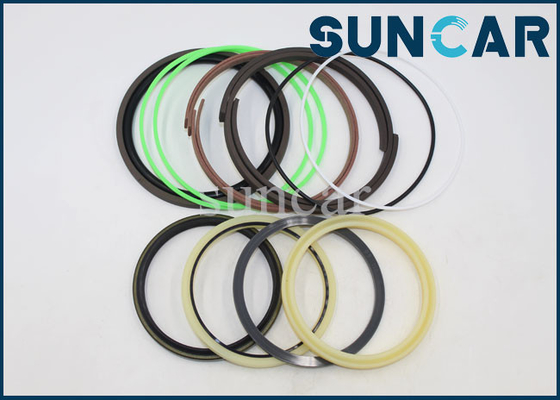

CX460 CX470B Case Oil Seal LZ008350 Arm Cylinder Service Kit Replacement Kits

Product Name	Arm Cylinder Service Kit
Model	CASE CX460, CX470B
Part Number	LZ008350
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic cylinder seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building Material Shops, Machinery Repair Shops, Retail, Construction work
Feature	High Sealing performance/ wear resistance
Rod	95 MM
Bore	190 MM
AppliC.A.Tion	Arm

Customer Service:

If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

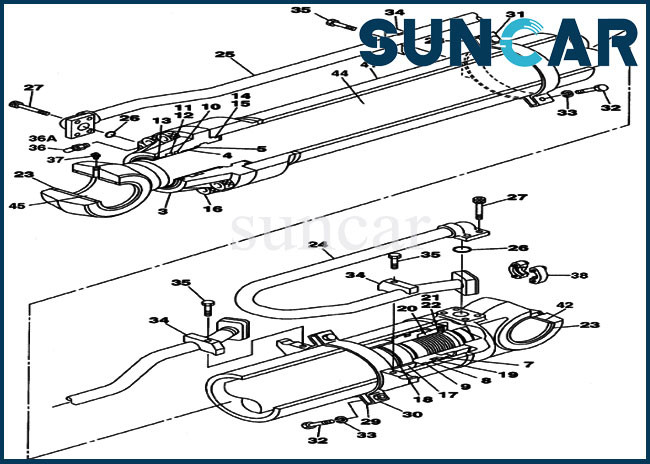

Related Parts:

Pos.	Part No	QTY	Parts name
. .	KTV10710	[1]	HYDRAULIC CYLINDER
. .	KTV12731	[1]	HYDRAULIC CYLINDER
3	LU002220	[1]	CYLINDER END CAP
4	LB00460	[1]	BUSHING
5	LA00622	[1]	RING
7	LJ00988	[1]	JACK PISTON
8	LE012480	[2]	SCRAPER RING
9	LE00623	[2]	SEALING STRIP
10	LE012420	[1]	RING
11	LE015220	[1]	SEALING RING
12	LE00616	[1]	BACK-UP RING
13	LE015230	[1]	WIPER SEAL
14	154877A1	[1]	O-RING
15	LE00619	[1]	BACK-UP RING
16	108R030W100N	[8]	BOLT
17	LE00986	[1]	BACK-UP RING
18	LE00620	[1]	SEAL
18	LE018360	[1]	SEAL
19	LE00621	[1]	RING
20	LA00910	[1]	SPECIAL NUT
21	LA00617	[1]	SCREW
22	LB00459	[1]	BALL
23	LE00948	[4]	SEAL
24	LR01136	[1]	HYD TUBE
25	LR015640	[1]	HYD TUBE
26	154579A1	[2]	O-RING
27	LA00751	[8]	BOLT
28	LD001590	[1]	MOUNTING CLIP
28	LD001710	[1]	CLAMP BRACKET
29	LD00093	[1]	CLAMP BRACKET
30	LD00094	[1]	CLAMP BRACKET
31	LD00095	[1]	CLAMP BRACKET
32	828-14050	[4]	BOLT
33	892-16014	[7]	LOCK WASHER
34	LS003200	[3]	HALF-FLANGE
35	LA00616	[3]	BOLT
36	LJ00624	[1]	BLEEDER
36A.	154467A1	[1]	O-RING
37	153912A1	[1]	LUBE NIPPLE
38	LK005150	[2]	HALF-FLANGE
. .	LR00896	[1]	HYD CYL SLEEVE
41	NSS	[1]	NOT SOLD SEPARAT
42	KTV1125	[1]	SELF LUB RING
. .	LZ008360	[1]	PISTON ROD
. .	LB00948	[1]	PISTON ROD
44	NSS	[1]	NOT SOLD SEPARAT
45	KTV1125	[1]	SELF LUB RING
. .	LZ008350	[1]	SEAL KIT
