LZ006960 Bucket Cylinder Seal Repair Kit Fits CASE CX700B CX700 Crawler Excavator

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number LZ006960 CASE CX700B, CX700
CertifiC.A.Tion ISO9001
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, Paypal, T/T, Transfer
Supply Ability 1000 set per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Bucket Cylinder Seal Repair Kit Part Number LZ006960
Rod 125 MM Bore 180 MM
Cylinder NO. KWV0013 AppliC.A.Tion Bucket
High Light

CASE Seal Kit

,

Bucket Cylinder Seal Repair Kit

,

LZ006960 Crawler Excavator Seal Kit

Leave a Message
Product Description



LZ006960 Bucket Cylinder Seal Repair Kit Fits CASE CX700B CX700 Crawler Excavator



Product Name Bucket Cylinder Seal Repair Kit
Model CASE CX700B, CX700
Part Number LZ006960
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
C.A.Tegory Group Hydraulic cylinder seal kit
Condition New, genuine new
Sample Available
Applicable Industries Building Material Shops, Machinery Repair Shops, Retail, Construction work
Feature High Sealing performance/ wear resistance
Rod 125 MM
Bore 180 MM
Cylinder NO. KWV0013
AppliC.A.Tion Bucket



Order Process:

1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)

2. Quoting our competitive price for you

3. Place an order after approving the quotation or products

4. We will send Proforma Invoice or sales confirmation

5. You prepay by T/T or L/C or Western Union through bank

6. We will starting to produce after we get your kind payment

7. Packing

8. Shipping the goods to your(our)forwarder

9. Sending all doc for your custom clearance

10. Time to reorder



Other Products We Can Offer You:

Oil Seal

O-Ring

Loader Seal Kit

Floating Seal

Hydraulic Breaker Seal Kit

Excavator Hydraulic Parts

Control Valve Seal Kit

Swing Motor Seal Kit

Crankshaft Rear Seal

Crankshaft Front Seal

Track Adjuster Seal Kit

Center Joint Seal Kit

(Main) Control Valve Seal Kit

Blade Lift/Tilt/Steering Cylinder Kit

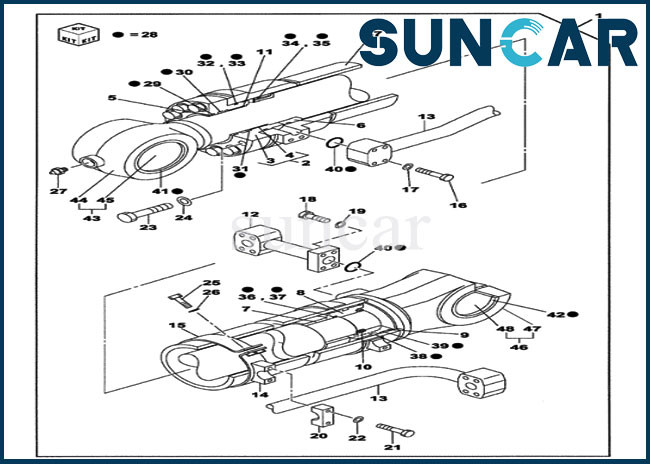

Related Parts:

Pos Part No. QTY Parts Name
1 KWV0013 [1] BUCKET CYLINDER
2 LU002170 [1] CYLINDER END CAP
3 NSS [1] NOT SOLD SEPARAT
4 LK005060 [1] WEAR RING
5 LA010010 [1] SNAP RING
6 LH004540 [1] SEALING RING COLLAR
7 LJ013470 [1] PLUNGER
8 LJ013430 [1] JACK PISTON
9 LE012240 [2] RING
10 LV000400 [1] SCREW
11 LA010020 [1] SNAP RING
12 LR012860 [1] HYD TUBE
13 LR012810 [1] TUBE
14 LD001180 [2] CLAMP BRACKET
15 LD001130 [2] CLAMP BRACKET
16 LA009930 [4] BOLT
17 LA010040 [4] WASHER
18 LA009910 [4] BOLT
19 LA010040 [4] WASHER
20 LA010110 [2] SNAP RING
21 LA009920 [4] BOLT
22 LA010040 [4] WASHER
23 LA010100 [12] BOLT
24 LA010080 [12] WASHER
25 LA009970 [8] BOLT
26 LA010070 [8] WASHER
27 153630A1 [1] LUBE NIPPLE
28 LZ006960 [1] SEAL KIT
29 NSS [1] NOT SOLD SEPARAT
30 NSS [1] NOT SOLD SEPARAT
31 NSS [1] NOT SOLD SEPARAT
32 NSS [1] NOT SOLD SEPARAT
33 154844A1 [1] O-RING
34 NSS [2] NOT SOLD SEPARAT
35 154844A1 [1] O-RING
36 NSS [2] NOT SOLD SEPARAT
37 154752A1 [1] O-RING
38 NSS [1] NOT SOLD SEPARAT
39 NSS [2] NOT SOLD SEPARAT
40 154559A1 [2] O-RING
41 NSS [2] NOT SOLD SEPARAT
42 NSS [2] NOT SOLD SEPARAT
43 LZ007040 [1] PISTON ROD
44 NSS [1] NOT SOLD SEPARAT
45 KUV0036 [1] BUSHING
46 LZ007010 [1] HYD CYL SLEEVE
47 NSS [1] NOT SOLD SEPARAT
48 KTV1125 [1] SELF LUB RING



Product Image:

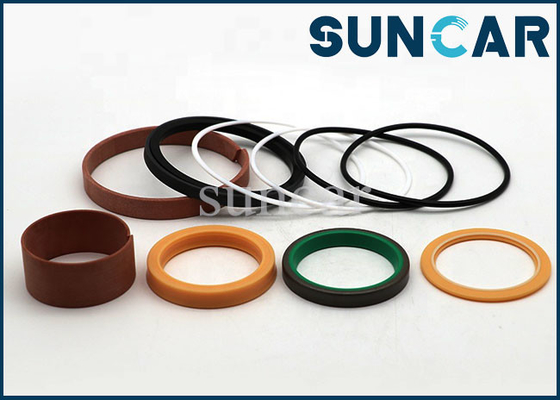

LZ006960 Bucket Cylinder Seal Repair Kit Fits CASE CX700B CX700 Crawler Excavator 0

LZ006960 Bucket Cylinder Seal Repair Kit Fits CASE CX700B CX700 Crawler Excavator 1
