LZ008050 Arm/ Dipper Repair Seal Kit Hydraulic Cylinder Seals Fits CX250C CX240B Case
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | LZ008050 CASE CX250C, CX210C LR, CX240B |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| Supply Ability | 1000 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Case Arm/ Dipper Repair Seal Kit | Part Number | LZ008050 |
|---|---|---|---|
| Rod | 105 MM | Bore | 145 MM |
| AppliC.A.Tion | Arm/ Dipper | Sample | Available |
| High Light | CASE Seal Kit,Arm/ Dipper Repair Seal Kit,LZ008050 Hydraulic Cylinder Seals |
||
Product Description
LZ008050 Arm/ Dipper Repair Seal Kit Hydraulic Cylinder Seals Fits CX250C CX240B Case
| Product Name | Case Arm/ Dipper Repair Seal Kit |
| Part Number | LZ008050 |
| Model | CASE CX250C, CX210C LR, CX240B |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic oil seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| Rod | 105 MM |
| Bore | 145 MM |
| AppliC.A.Tion | Arm/ dipper |
Advantages Of Oil Seal:
1. Oil seal structure is simple and easy to manufacture. Simple oil seal can be molded in one time, even the most compliC.A.Ted oil seal, the manufacturing process is also oil seal not compliC.A.Ted. The metal skeleton oil seal can also form the required oil seal between metal and rubber only by stamping, gluing, inlaying, molding and other processes.
2. Oil seal has light weight and few consumables. Each type of oil seal is a combination of thin-walled metal parts and rubber parts, and its material consumption is very small, so the weight of each oil seal is very light.
3. The installation position of the oil seal is small, the axial size is small, easy to process, and make the machine compact.
4. Oil seal has good sealing performance and long service life. It has certain adaptability to the vibration of the machine and the eccentricity of the main shaft.
5. Oil seal is easy to disassemble and convenient for inspection.
Return Policy & Feedback::
- Once you buy our item, you agree to the following return policy:
(1) We accept return, but please contact us before make the decision.
(2) We only accept exchange if the item is received incorrect or defective.
(3) Return shipping costs are the responsibility of customers.
(4) All returns must be whole and complete as shipped to the customers.
- Our duty is to provide you high quality product and service, if you are satisfied with us, please leave us a positive feedback, it’s our power to make better.

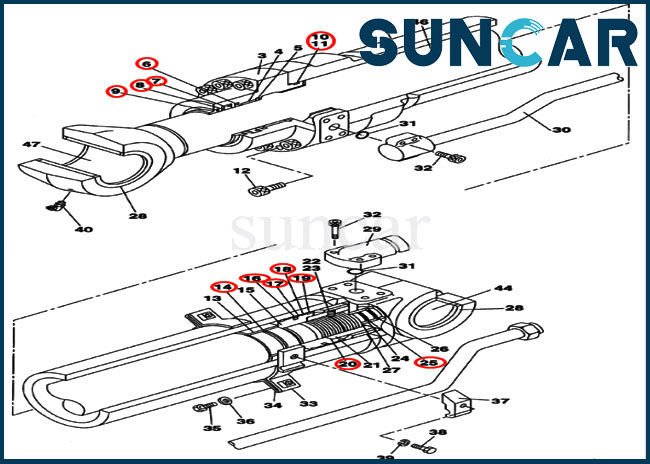

Related Parts:
| Pos | Part No. | QTY | Parts Name |
| . . | KBV11020 | [1] | HYDRAULIC CYLINDER |
| . . | KBV11020R | [1] | REMAN-HYD CYLINDER |
| . . | KBV11020C | [1] | CORE-HYD CYLINDER |
| 3 | LU00192 | [1] | CYLINDER END CAP |
| 4 | 160049A1 | [1] | BUSHING |
| 5 | 155711A1 | [1] | RING, SNAP |
| 6 | LE012550 | [1] | O-RING |
| 7 | LE012320 | [1] | O-RING |
| 8 | LE00738 | [1] | BACK-UP RING |
| 9 | 159960A1 | [1] | BACK-UP RING |
| 10 | 154797A1 | [1] | O-RING |
| 11 | LE00739 | [1] | BACK-UP RING |
| 12 | 166094A1 | [10] | BOLT |
| 13 | LE00740 | [1] | BACK-UP RING |
| 14 | LE00741 | [1] | BACK-UP RING |
| 15 | LJ014420 | [1] | PISTON |
| 16 | LE00742 | [1] | BACK-UP RING |
| 17 | LE00743 | [2] | BACK-UP RING |
| 18 | LE013620 | [2] | WIPER SEAL |
| 19 | LE00745 | [2] | SCRAPER RING |
| 20 | 165746A1 | [1] | SHIM |
| 21 | LA010880 | [1] | SPECIAL NUT |
| 22 | 156228A1 | [1] | SET SCREW |
| 23 | 155981A1 | [1] | BALL |
| 24 | 162709A1 | [1] | BEARING |
| 25 | LE00746 | [1] | SEAL |
| 26 | 160128A1 | [2] | STOP |
| 27 | 160129A1 | [1] | RING, SNAP |
| 28 | 162962A1 | [4] | WIPER SEAL |
| 29 | LJ014170 | [1] | COUPLING FLANGE |
| 30 | LR014810 | [1] | HYD TUBE |
| 31 | 154543A1 | [2] | O-RING |
| 32 | 863-12035 | [8] | HEX SOC SCREW |
| 33 | LD001410 | [1] | MOUNTING CLIP |
| 34 | LD001400 | [1] | MOUNTING CLIP |
| 35 | 158131A1 | [2] | BOLT |
| 36 | 156227A1 | [2] | WASHER |
| 37 | 155717A1 | [1] | COLLAR |
| 38 | 628-12055 | [1] | BOLT |
| 39 | 892-10012 | [1] | LOCK WASHER |
| 40 | 153912A1 | [1] | LUBE NIPPLE |
| . . | LZ008060 | [1] | HYD CYL SLEEVE |
| 43 | NSS | [1] | NOT SOLD SEPARAT |
| 44 | KBV1362 | [1] | SELF LUB RING |
| . . | LZ007770 | [1] | PISTON ROD |
| 46 | NSS | [1] | NOT SOLD SEPARAT |
| 47 | KBV1362 | [1] | SELF LUB RING |
| . . | LZ008050 | [1] | SEAL KIT |

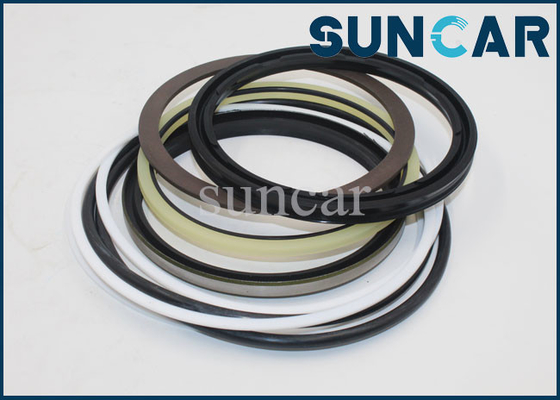

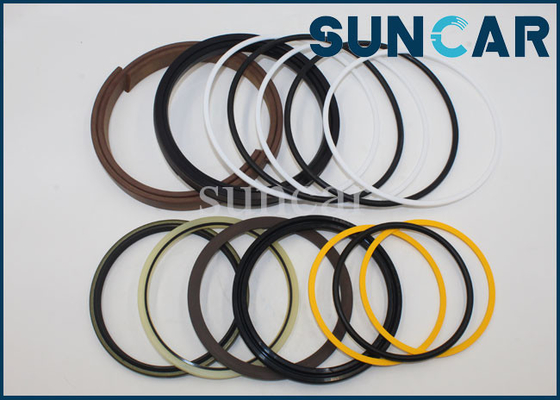

Product Image:
