Hydraulic Cylinder Seal Kit

LZ010710 Hydraulic Repair Seal Kit Fits Models CX130C CX130D CASE Bucket Cylinder

All Category

Piston Seals And Piston Rod Seals

Main Valve Seal Kit

Miss. Alina

Alina@suncarseals.com

86-14749308310

Contact Now

LZ010710 Hydraulic Repair Seal Kit Fits Models CX130C CX130D CASE Bucket Cylinder

Brand Name:	SUNCAR
Model Number:	LZ010710 CASE CX250D LC LR, CX145C SR, CX130D LC, CX210D LC LR, CX130C, CX130D
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, Paypal, T/T, Transfer

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Product Name:

Case Bucket Cylinder Repair Seal Kit

Part Number:

LZ010710

AppliC.A.Tion:

Bucket

Cylinder No.:

KNV12541

65 MM

Bore:

95 MM

Supply Ability:

1000 set per week

Highlight:

Hydraulic Repair Seal Kit

Bucket Cylinder Seal Repair Kit

CASE Seal Kit

Product Description

LZ010710 Hydraulic Repair Seal Kit Fits Models CX130C CX130D CASE Bucket Cylinder

Product Name	Case Bucket Cylinder Repair Seal Kit
Part Number	LZ010710
Model	CASE CX250D LC LR, CX145C SR, CX130D LC, CX130C, CX130D, CX210D LC LR
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic oil seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High Sealing performance/ wear resistance
Rod	65 MM
Bore	95 MM
Cylinder No.	KNV12541
AppliC.A.Tion	Bucket

Measures For Oil Leakage Due To Inadequate Oil Seal:

1. Master and recognize the basic knowledge of fake and inferior products, and purchase high-quality and standard oil seals.

2. During installation, if the roughness of the outer surface of the shaft diameter is low or there are defects such as rust, burrs, etc., smooth it with a fine emery cloth or whetstone; apply clean engine oil or grease to the lip of the oil seal or the corresponding position of the shaft diameter. Apply sealant to the outer ring of the oil seal, wrap the key way on the shaft with hard paper to avoid scratching the lip of the oil seal, and use a special tool to rotate and press the oil seal inwards. Do not smash the hard seal to prevent deformation of the oil seal or squeeze the spring and fail; If there is lip cuffing, the spring falls off and the oil seal is skewed, It must be removed and reinstalled. It should be noted that when the shaft diameter is not worn and the spring force of the oil seal spring is sufficient, do not tighten the inner spring without authorization.

3. The oil seals applied to machinery generally have to be inspected, maintained and maintained when the general working conditions are poor, the ambient temperature difference is large, the dust is excessive, and the vibration of the machine tool frequently changes the stress condition of the machine parts.

4. If the shaft diameter and bearing are seriously worn; The rubber seal oil is aging or the spring is invalid, etc., repair and replace the corresponding parts in time.

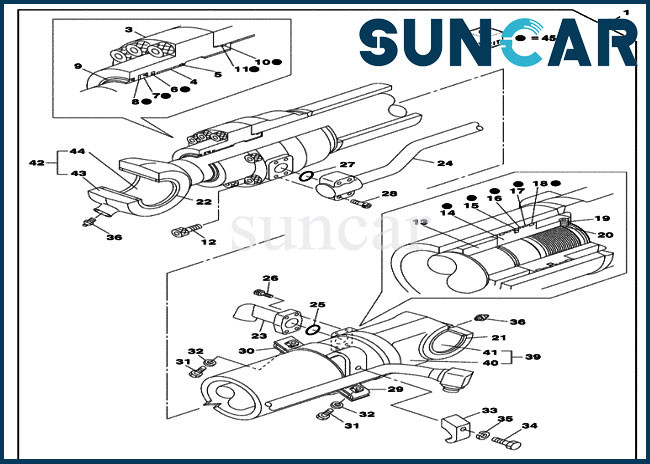

Related Parts:

Pos	Part No.	QTY	Parts Name
1	KNV12541	[1]	BUCKET CYLINDER
1	KNV12541R	[1]	REMAN-HYD CYLINDER
1	KNV12541C	[1]	CORE-HYD CYLINDER
3	LU00104	[1]	CYLINDER END CAP
4	LB00512	[1]	BUSHING
5	155698A1	[1]	RING, SNAP
6	LE015600	[1]	RING
7	LE015610	[1]	O-RING
8	155230A1	[1]	BACK-UP RING
9	LE019400	[1]	WIPER
10	154705A1	[1]	O-RING
11	161810A1	[1]	COUPLING
12	861-14055	[10]	HEX SOC SCREW
13	LE00735	[1]	RING
14	LJ015400	[1]	PISTON
15	160825A1	[1]	SEALING RING
16	161814A1	[2]	HUB
17	LE015620	[2]	SEALING RING
18	160829A1	[2]	RING
19	156222A1	[1]	SCREW
20	155976A1	[1]	BALL
21	164445A1	[2]	RING
22	164446A1	[2]	WIPER SEAL
23	155516A1	[1]	TUBE
24	LR016020	[1]	HYD TUBE
25	154528A1	[2]	O-RING
26	87016471	[8]	HEX SOC SCREW
27	154499A1	[1]	O-RING
28	861-8025	[1]	HEX SOC SCREW
29	LD001640	[2]	CLAMP BRACKET
30	161001A1	[2]	MOUNTING CLIP
31	158131A1	[1]	BOLT
32	156227A1	[1]	WASHER
33	160874A1	[1]	CLAMP
34	827-12050	[2]	BOLT
35	892-10012	[1]	LOCK WASHER
36	153630A1	[1]	LUBE NIPPLE
39	LZ008760	[1]	HYD CYL SLEEVE
40	NSS	[1]	NOT SOLD SEPARAT
41	KNV1141	[1]	SELF LUB RING
42	LZ008770	[1]	PISTON ROD
43	NSS	[1]	NOT SOLD SEPARAT
44	KNV1139	[1]	SELF LUB RING
45	LZ010710	[1]	SEAL KIT

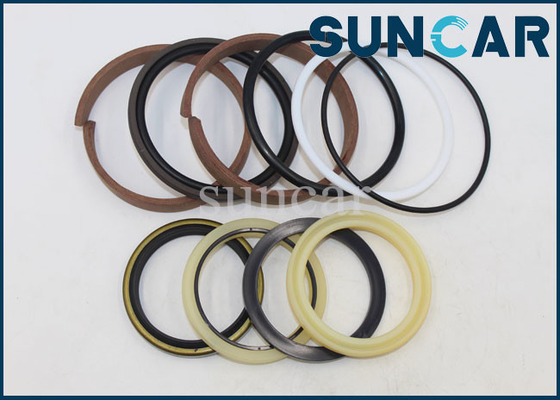

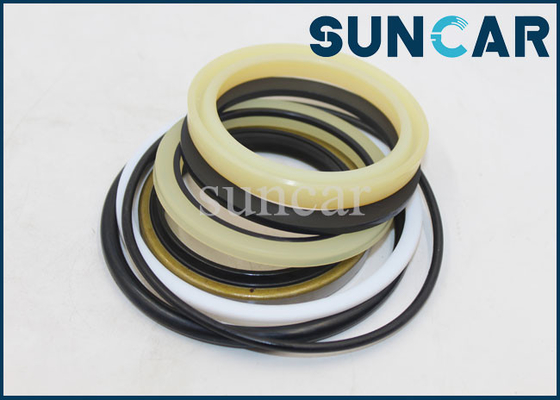

Product Image:
