Wear Resistance LZ011260 Arm Cylinder Sealing Kit Fits CASE CX210D LC LR CX250D LC

Brand Name:	SUNCAR
Model Number:	LZ011260 CASE CX210D LC LR, CX250D LC
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, Paypal, T/T, Transfer

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Product Name:

Case Arm Cylinder Sealing Kit

Part Number:

LZ011260

AppliC.A.Tion:

Cylinder No.:

KRV24000

105 MM

Bore:

145 MM

Supply Ability:

1000 set per week

Highlight:

CASE Seal Kit

LZ011260 Arm Cylinder Sealing Kit

Excavator Service Kit

Product Description

Wear Resistance LZ011260 Arm Cylinder Sealing Kit Fits CASE CX210D LC LR CX250D LC

Product Name	Case Arm Cylinder Sealing Kit
Part Number	LZ011260
Model	CASE CX210D LC LR, CX250D LC
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic oil seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High Sealing performance/ wear resistance
Rod	105 MM
Bore	145 MM
Cylinder No.	KRV24000
AppliC.A.Tion	Arm

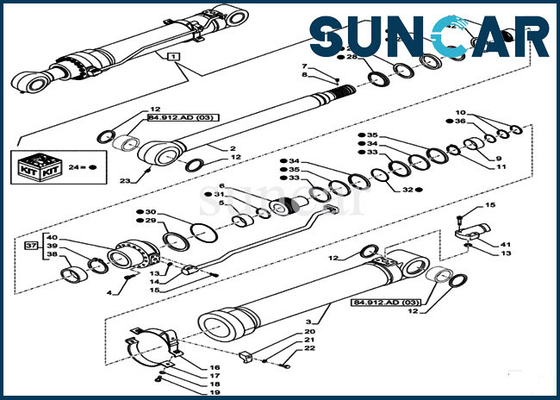

Related Parts:

Pos	Part No.	QTY	Parts Name
1	KRV24000	[1]	HYDRAULIC CYLINDER
2	LZ008640	[1]	PISTON ROD
3	LZ008630	[1]	HYD CYL SLEEVE
4	108R020Z080N	[12]	BOLT
5	LE00740	[1]	BACK-UP RING
6	LJ014420	[1]	PISTON
7	156228A1	[1]	SET SCREW
8	155981A1	[1]	BALL
9	162709A1	[1]	BEARING
10	160128A1	[2]	STOP
11	160129A1	[1]	RING, SNAP
12	162962A1	[4]	WIPER SEAL
13	154543A1	[2]	O-RING
14	LR015930	[1]	HYD TUBE
15	863-12035	[8]	HEX SOC SCREW
16	LD001410	[1]	MOUNTING CLIP
17	LD001400	[1]	MOUNTING CLIP
18	156227A1	[2]	WASHER
19	158131A1	[2]	BOLT
20	155717A1	[1]	COLLAR
21	892-10012	[1]	LOCK WASHER,M12
22	628-12055	[1]	BOLT,Hex
23	153912A1	[1]	LUBE NIPPLE
24	LZ011260	[1]	SEAL KIT
25	LE012550	[1]	O-RING
26	LE012320	[1]	O-RING
27	LE00738	[1]	BACK-UP RING
28	LE019480	[1]	BACK-UP RING
29	154797A1	[1]	O-RING
30	LE00739	[1]	BACK-UP RING
31	LE00741	[1]	BACK-UP RING
32	LE00742	[1]	BACK-UP RING
33	LE00743	[2]	BACK-UP RING
34	LE013620	[2]	WIPER SEAL
35	LE00745	[2]	SCRAPER RING
36	LE00746	[1]	SEAL
37	LU00191	[1]	GLAND
38	NSS	[1]	NOT SOLD SEPARAT
39	NSS	[1]	NOT SOLD SEPARAT
40	NSS	[1]	NOT SOLD SEPARAT
41	LJ014170	[1]	COUPLING FLANGE
42	165746A1	[1]	SHIM
43	LA010880	[1]	SPECIAL NUT

Our advantage:
1. We have more than ten years of sales experience in excavator sealing systems, seal kits, hydraulic pump parts and engine parts in the international and domestic markets.
2. We provide Kobelco, Hitachi, C.A.T, Komatsu, Hyundai, Daewoo and Doosan complete sets for booms, arm, buckets, swing motors, travel motors, main pumps, center joints, crawler adjustment cylinders and gear pumps seals and seal kits.
3. Our Factory have advanced technology and 100% testing before delivery.
4. Quick delivery and competitive price.
5. The larger quantity you order, the better price we can supply.
6. We have a professional team to offer professional service for you.
7. We can offer New and Used, OEM, Good quality, Aftermarket parts to you.
8. All parts can check with part number, all parts can order by part number.
9. Safe packing to protect the goods, such as wooden box, Iron sheet.

ClassifiC.A.Tion And Function Of Hydraulic Cylinder Seal Kit:

Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. Within the system, there are 2 main types of hydraulic seals:
Dynamic seals: Designed to seal various parts in relative motion. They can be utilized in high pressure and even when rod and hydraulic cylinder seals are in reciprocal motion between the head and the connecting rod.
Static seals: Our static seal kit seal parts that are not in relative motion. These are used in various loC.A.Tions as per the construction and look of the hydraulic cylinder. The connection rod and piston is the primary area where these seals are used.

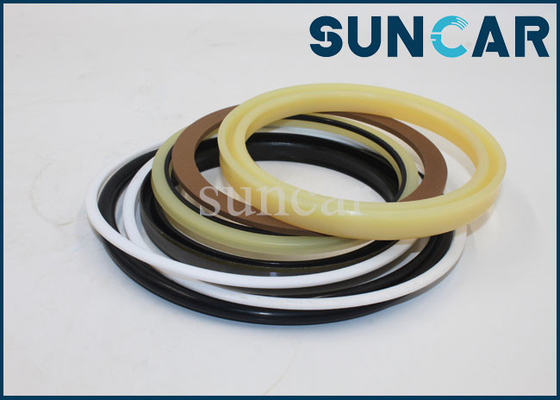

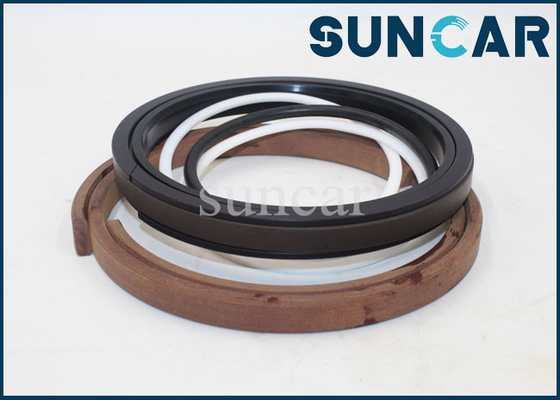

Product Show:
