CX350D LC CASE LZ012100 Arm Repair Seal Kit Hydraulic Cylinder Repair Kits

Place of Origin	CHINA(MAINLAND)
Brand Name	SUNCAR
Model Number	LZ012100 CASE CX350D LC
CertifiC.A.Tion	ISO9001
Minimum Order Quantity	Trial order acceptable
Price	Negotiation
Packaging Details	PP bag inside, carton box outside
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment Terms	Western Union, Paypal, T/T, Transfer
Supply Ability	1000 set per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Case Arm Repair Seal Kit	Part Number	LZ012100
Rod	120 MM	Bore	170 MM
Cylinder No.	KSV25611	AppliC.A.Tion	Arm
High Light	CASE Seal Kit , LZ012100 Arm Repair Seal Kit , Hydraulic Cylinder Repair Kits

Leave a Message

Product Description

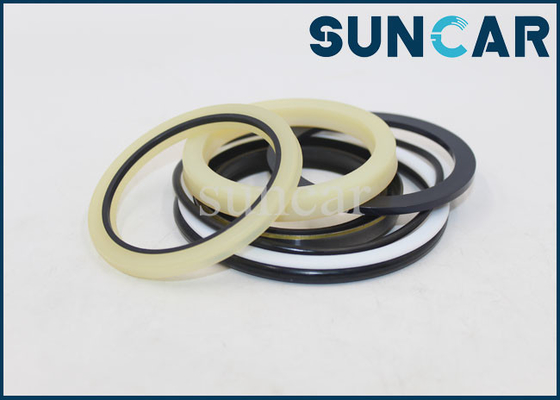

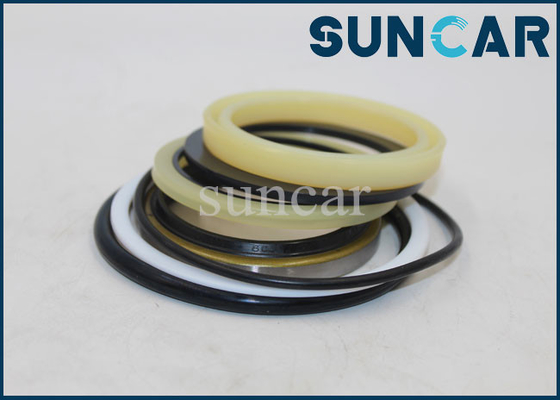

CX350D LC CASE LZ012100 Arm Repair Seal Kit Hydraulic Cylinder Repair Kits

Product Name	Case Arm Repair Seal Kit
Part Number	LZ012100
Model	CASE CX350D LC
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic oil seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High Sealing performance/ wear resistance
Rod	120 MM
Bore	170 MM
Cylinder No.	KSV25611
AppliC.A.Tion	Arm

Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

Provide Other Parts:

SUNCARSUNCARSUNCARVO.L.VO Seal Kit	VOE11990026
KOMATSU Seal Kit	707-99-64400
HITACHI Seal Kit	4306765
C.A.T Seal Kit	126-1880
HYUNDAI Seal Kit	31Y1-18210
DOOSAN Seal Kit	2440-9280
KOBELCO Seal Kit	LC01V00044R300
JCB Seal Kit	550/43378
KATO Seal Kit	309-66090020
CASE Seal Kit	191747A1
Transmission Seal Kit	714-07-05010
Swing Motor Seal Kit	VOE14512788
O-Ring Kit Box	270-1528
Pilot Valve Seal Kit	709-99-13102
Center Joint Seal Kit	703-09-33210
Hydraulic Pump Seal Kit	XJBN-01106
Gear Pump Seal Kit	VOE14513778
Control Valve Seal Kit	700-82-38000
PPC Seals	SA8230-20110
O-Ring	S631-112001
D-Ring	4092712
Cylinder Steel Ring	707-44-17910

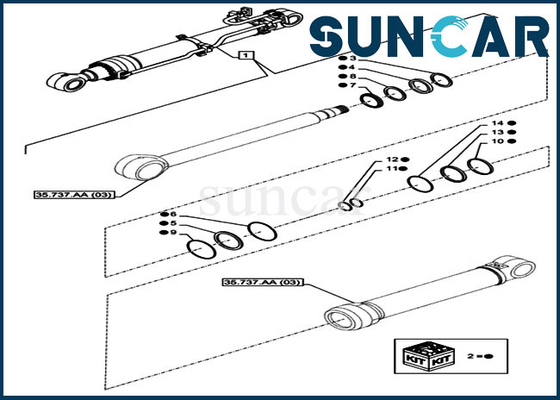

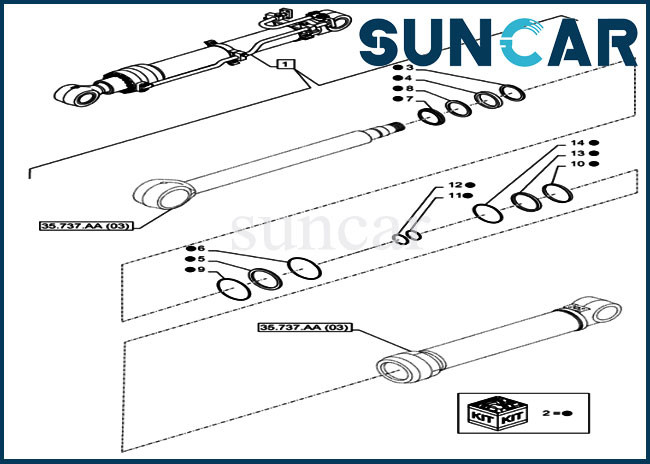

Related Parts:

Pos	Part No.	QTY	Parts Name
1	KSV25611	[1]	HYDRAULIC CYLINDER
2	LZ012100	[1]	KIT
3	LE022390	[1]	SEAL
4	LE022410	[1]	RING
5	LE022430	[1]	RING
6	LE022440	[1]	O-RING
7	LE022420	[1]	RING
8	LE022400	[1]	RING
9	154829A1	[1]	O-RING
10	LE022480	[2]	RING
11	LE022500	[2]	RING
12	LE022490	[1]	O-RING
13	LE022470	[2]	RING
14	LE022460	[1]	SEAL
