LZ013800 Bucket Replacement Kit CX490D LC CX490D RTC CASE Cylinder Seal Repair Kit

Place of Origin	CHINA(MAINLAND)
Brand Name	SUNCAR
Model Number	LZ013800 CASE CX490D LC, CX490D RTC
CertifiC.A.Tion	ISO9001
Minimum Order Quantity	Trial order acceptable
Price	Negotiation
Packaging Details	PP bag inside, carton box outside
Delivery Time	3-5 days after payment received(public holiday excluded)
Payment Terms	Western Union, Paypal, T/T, Transfer
Supply Ability	1000 set per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Case Bucket Cylinder Seal Repair Kit	Part Number	LZ013800
Warranty	Unavailable	Condition	New, Genuine New
Feature	High Sealing Performance/ Wear Resistance	AppliC.A.Tion	Bucket
High Light	CASE Seal Kit , LZ013800 Bucket Replacement Kit , Cylinder Seal Repair Kit

Leave a Message

Product Description

LZ013800 Bucket Replacement Kit CX490D LC CX490D RTC CASE Cylinder Seal Repair Kit

Product Name	Case Bucket Cylinder Seal Repair Kit
Part Number	LZ013800
Model	CASE CX490D LC, CX490D RTC
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic oil seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High Sealing performance/ wear resistance
AppliC.A.Tion	Bucket

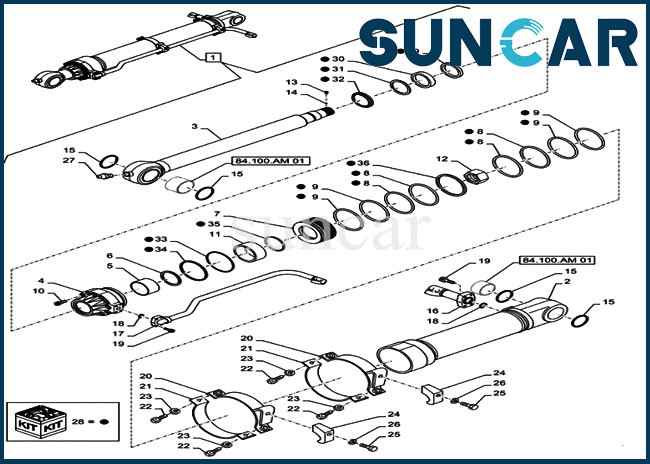

Related Parts:

Pos	Part No.	QTY	Parts Name
1	KTV20770	[1]	HYDRAULIC CYLINDER
2	LR00947	[1]	HYD CYL SLEEVE
3	LZ013810	[1]	KIT
4	LU002500	[1]	CYLINDER END CAP
5	LB00669	[1]	BACK-UP RING
6	LMU0072	[1]	RING
7	LJ00992	[1]	JACK PISTON
8	LE015240	[2]	SEALING RING
9	LE01016	[2]	GUIDE RING
10	LA018330	[8]	BOLT
11	LE022230	[1]	RING
12	LA00908	[1]	SPECIAL NUT
13	156228A1	[1]	SET SCREW
14	155981A1	[1]	BALL
15	LE01017	[4]	SHAFT SEAL
16	LJ022690	[1]	JOINT
17	LR023620	[1]	PIPE
18	LE027300	[2]	O-RING
19	LA018020	[8]	BOLT
20	LD001550	[2]	CLAMP BRACKET
21	LZU0074	[2]	CLAMP BRACKET
22	158131A1	[4]	BOLT
23	156227A1	[4]	WASHER
24	155716A1	[2]	COLLAR
25	LA00683	[2]	BOLT,Hex
26	LA018030	[2]	WASHER
27	153630A1	[1]	LUBE NIPPLE
28	LZ013800	[1]	KIT
29	LE00890	[1]	RING
30	LE015180	[1]	SEALING RING
31	LE00892	[1]	BACK-UP RING
32	LE022200	[1]	RING
33	LE028070	[1]	O-RING
34	LE01012	[1]	BACK-UP RING
35	LE027990	[1]	SEALING RING
36	LE01014	[1]	SEALING RING

Storage Precautions:

When storing seals, please pay attention to the following items:

1. Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.

2. Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.

3. When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.

4. Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.

5. Do not place the seal near the motor or where ozone is generated.

6. Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.

7. The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.

8. The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.
