PE01V00001R100 Boom Cylinder Seal Kit CX14 Case Excavator Hydraulic Replacement Kits
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | PE01V00001R100 CASE CX14 |
CertifiC.A.Tion | ISO9001 |
Minimum Order Quantity | Trial order acceptable |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, Paypal, T/T, Transfer |
Supply Ability | 1000 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Case Boom Cylinder Seal Kit | Part Number | PE01V00001R100 |
---|---|---|---|
AppliC.A.Tion | Boom | Warranty | Unavailable |
Condition | New, Genuine New | Feature | High Sealing Performance/ Wear Resistance |
High Light | CASE Seal Kit,Boom Cylinder Seal Kit,PE01V00001R100 Replacement Kits |

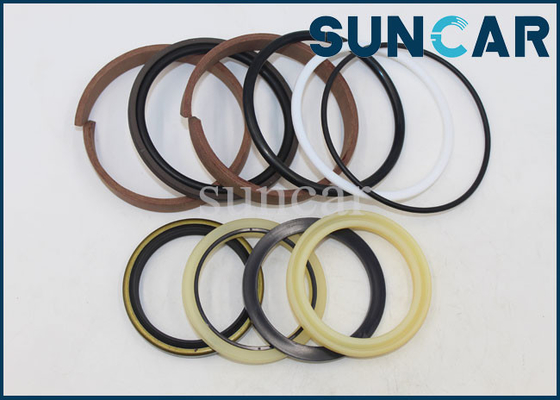

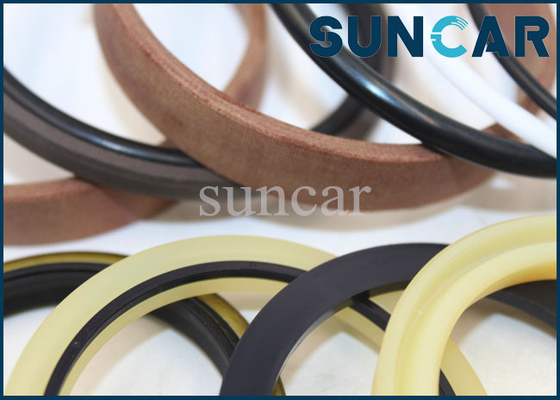

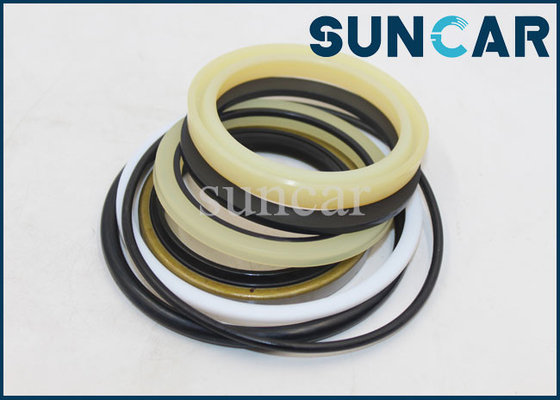

PE01V00001R100 Boom Cylinder Seal Kit CX14 Case Excavator Hydraulic Replacement Kits
Product Name | Case Boom Cylinder Seal Kit |
Part Number | PE01V00001R100 |
Model | CASE CX14 |
Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Payment Terms | Western Union, Paypal, T/T, Transfer |
CertifiC.A.Tion | ISO9001 |
Warranty | Unavailable |
Customized | OEM & ODM are welcomed |
C.A.Tegory Group | Hydraulic cylinder seal kit |
Condition | New, genuine new |
Sample | Available |
Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
Feature | High Sealing performance/ wear resistance |
AppliC.A.Tion | Boom |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Other Related Part Number:
PY01V00037R300 | PS01V00004R400 | PE01V00002R100 | PX01V00033R300 |
PH01V00027R300 | PS01V00005R300 | PE01V00003R100 | PY01V00030R300 |
PH01V00034R300 | PS01V00005R400 | PE01V00004R100 | PY01V00034R300 |
PY01V00040R300 | PY01V00053R300 | PE01V00005R100 | PH01V00016R300 |
PH01V00031R300 | PY01V00052R300 | PV01V00039R300 | YJ01V00009R300 |
PH01V00006R100 | PY01V00054R300 | PV01V00037R300 | PH01V00014R300 |
PY01V00036R300 | PY01V00043R400 | PV01V00038R300 | PH01V00018R300 |
PS01V00001R300 | PH01V00037R400 | PM01V00044R300 | PU01V00013R100 |
PS01V00001R400 | PY01V00047R400 | PW01V00043R300 | PF01V00006R300 |
PS01V00002R300 | PY01V00040R400 | PW01V00051R300 | PE01V00003R100 |
PS01V00002R400 | PH01V00031R400 | PW01V00046R300 | PE01V00004R100 |
PS01V00003R300 | PH01V00006R100P | PW01V00048R300 | PX01V00045R300 |
PS01V00003R400 | PY01V00050R300 | PX01V00030R300 | PX01V00048R300 |

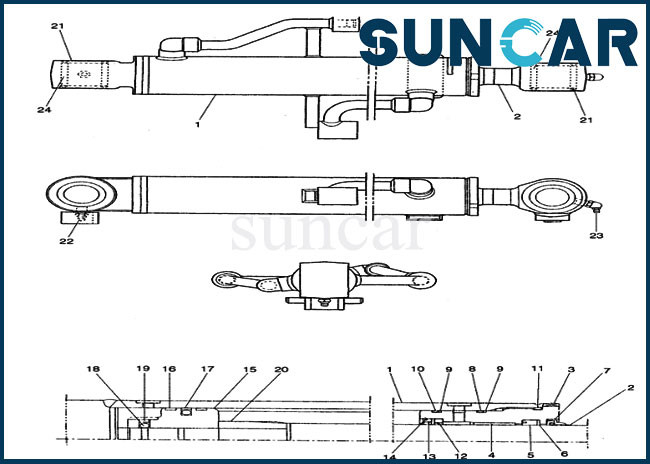

Related Parts:
Pos | Part No. | QTY | Parts Name |
. . | PE01V00001F1 | [1] | CYLINDER ASSY. |
1 | PE01V00001S001 | [1] | TUBE |
2 | PE01V00001S002 | [1] | PISTON ROD |
3 | PU01V00007S003 | [1] | GLAND |
4 | 2438U359S4 | [1] | BUSHING |
5 | PM01V00009S005 | [1] | BACK-UP RING |
6 | PU01V00013S006 | [1] | BACK-UP RING |
7 | PU01V00013S007 | [1] | WIPER |
8 | PM01V00009S007 | [1] | O-RING |
9 | PM01V00009S008 | [2] | RING, SNAP |
10 | 2436U1027S62 | [1] | O-RING |
11 | PM01V00009S009 | [1] | O-RING |
12 | PU01V00013S012 | [1] | BACK-UP RING |
13 | PU01V00013S013 | [1] | SPACER |
14 | PU01V00013S014 | [1] | STOP PLUG |
15 | PU01V00013S015 | [1] | PISTON |
16 | PU01V00013S016 | [2] | RING |
17 | PM01V00009S012 | [1] | RING |
18 | 2438U988S19 | [1] | BALL |
19 | 2438U988S18 | [1] | SET SCREW |
20 | PU01V00007S020 | [1] | BEARING |
21 | PM01V00009S019 | [4] | GASKET |
22 | ZG91S02000 | [1] | LUBE NIPPLE |
23 | 2438U1119S19 | [1] | LUBE NIPPLE |
24 | PE01V00002S101 | [2] | BUSHING |
. . | PE01V00001R100 | [1] | SEAL KIT |
Product Image:
