Name: Swing Cylinder Seal Kit 72275471 Case Repair Kit For CX16B Mini Crawler Excavator
Brand: Guangzhou Suncar Seals Co., Ltd.
SKU: 72275471 CASE CX16B
Availability: InStock

Brand Name:	SUNCAR
Model Number:	72275471 CASE CX16B
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Product Name:

Case Swing Cylinder Seal Kit

Part Number:

72275471

Size:

Standard Size

Material:

PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ

AppliC.A.Tion:

Swing

Sample:

Available

Supply Ability:

3000 set per month

Highlight:

Swing Cylinder Seal Kit

72275471 Case Repair Kit

CASE Seal Kit

Product Description

Swing Cylinder Seal Kit 72275471 Case Repair Kit For CX16B Mini Crawler Excavator

Product Name	Case Swing Cylinder Seal Kit
Part Number	72275471
Model	CASE CX16B
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic cylinder seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High Sealing performance/ wear resistance
AppliC.A.Tion	Swing

The role of the seal:

Each of the dynamic seals confine a hydraulic cylinder, which contains a specific perform that contribute towards the system’s performance:
Rod seal: Acts a pressure barrier and helps the operational fluid inside of the cylinder to regulate the fluid film extending with the connecting rod’s surface. This is essential in inhibiting the corrosion of the rod and the lubriC.A.Tion of the wiper seal.
Piston seal: Acts as a barrier to the pressure and prevents the fluid from passing the piston. Necessary for maintaining the position when at rest or for the cylinder’s dominant motion.
Buffer seal: The rod seal is protected against fluid pressure peaks that can lead to fluctuating the system pressure with the help of buffer seals.
Wiper seal: It is designed to prevent external contaminants from coming inside the assembly of the cylinder.
(Rod and piston) functions: Prevents contact of metal-to-metal between parts, leading to keeping the piston and connecting rod accurately centered within the assembly of the cylinder. Helps in improving performance of the piston and rod waterproofing system.

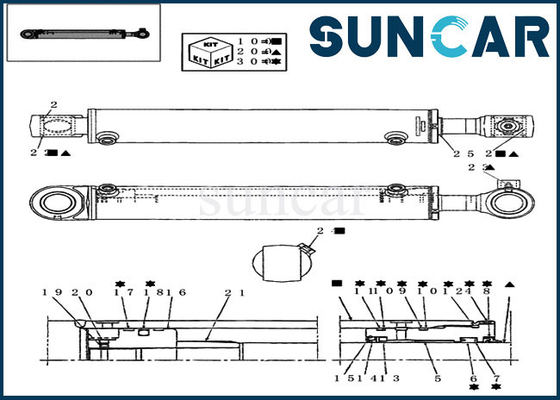

Related Parts:

Pos	Part No.	QTY	Parts Name
. .	72275076	[1]	CYLINDER
2	72275678	[2]	BUSHING
4	72275679	[1]	JACK HEAD
5	72961204	[1]	BUSHING
6	72275671	[1]	SEAL
7	72961197	[1]	RING
8	72957716	[1]	SEALING RING
9	72957831	[1]	O-RING
10	72961481	[1]	RING
11	72960987	[1]	O-RING
12	72955427	[1]	O-RING
13	72961298	[1]	RING
14	72961299	[1]	SPACER
15	72961300	[1]	STOP
16	72961315	[1]	PISTON
17	72275682	[2]	RING
18	72957672	[1]	RING
19	72952036	[1]	BALL
20	72275677	[1]	ADJUSTMENT SCREW,Hex
21	72275683	[1]	GUIDE BUSHING
22	72961203	[4]	SEAL
23	72950289	[1]	LUBE NIPPLE
24	72275684	[2]	PLUG
25	72275685	[1]	PLUG
100	72275686	[1]	REPAIR KIT
200	72275687	[1]	REPAIR KIT
300	72275471	[1]	REPAIR KIT

Product Show:

PY01V00037R300	PS01V00004R400	PE01V00002R100	PX01V00033R300
PH01V00027R300	PS01V00005R300	PE01V00003R100	PY01V00030R300
PH01V00034R300	PS01V00005R400	PE01V00004R100	PY01V00034R300
PY01V00040R300	PY01V00053R300	PE01V00005R100	PH01V00016R300
PH01V00031R300	PY01V00052R300	PV01V00039R300	YJ01V00009R300
PH01V00006R100	PY01V00054R300	PV01V00037R300	PH01V00014R300
PY01V00036R300	PY01V00043R400	PV01V00038R300	PH01V00018R300
PS01V00001R300	PH01V00037R400	PM01V00044R300	PU01V00013R100
PS01V00001R400	PY01V00047R400	PW01V00043R300	PF01V00006R300
PS01V00002R300	PY01V00040R400	PW01V00051R300	PE01V00003R100
PS01V00002R400	PH01V00031R400	PW01V00046R300	PE01V00004R100

Product Image:

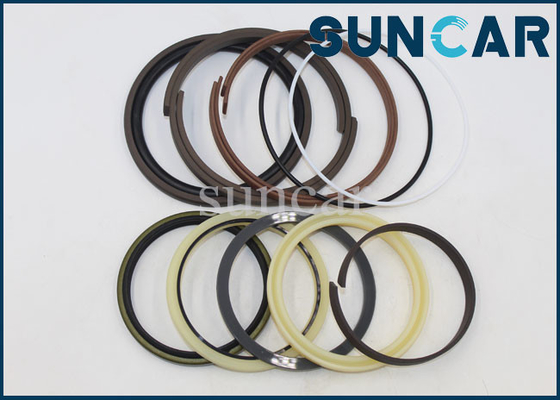

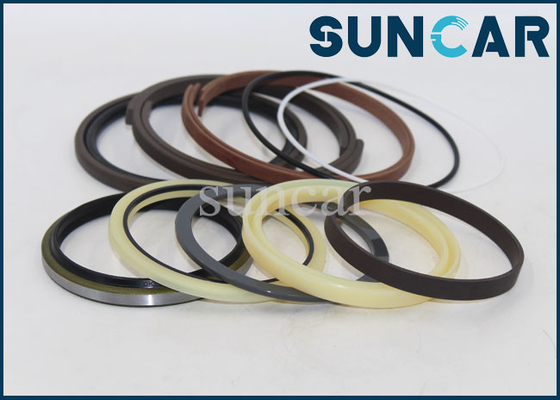

Swing Cylinder Seal Kit 72275471 Case Repair Kit For CX16B Mini Crawler Excavator 1
