Dipper Cylinder Repair Seal Kit XKCD-03072 XKCD03072 For Case CX57C Hydraulic Oil Seal Kit
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | XKCD-03072 CASE CX57C |
CertifiC.A.Tion | ISO9001 |
Minimum Order Quantity | Trial order acceptable |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, Paypal, T/T, Transfer |
Supply Ability | 1000 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPart Number | XKCD-03072, XKCD03072 | AppliC.A.Tion | Dipper |
---|---|---|---|
Sample | Available | Feature | High Sealing Performance/ Wear Resistance |
Warranty | Unavailable | Shipping Mode | By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.) |
High Light | CASE Seal Kit,Dipper Cylinder Repair Seal Kit,XKCD-03072 Hydraulic Oil Seal Kit |
Dipper Cylinder Repair Seal Kit XKCD-03072 XKCD03072 For Case CX57C Hydraulic Oil Seal Kit
Product Name | Case Dipper Cylinder Repair Seal Kit |
Part Number | XKCD-03072, XKCD03072 |
Model | CASE CX57C |
Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Payment Terms | Western Union, Paypal, T/T, Transfer |
CertifiC.A.Tion | ISO9001 |
Warranty | Unavailable |
Customized | OEM & ODM are welcomed |
C.A.Tegory Group | Hydraulic cylinder seal kit |
Condition | New, genuine new |
Sample | Available |
Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
Feature | High Sealing performance/ wear resistance |
AppliC.A.Tion | Dipper |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.

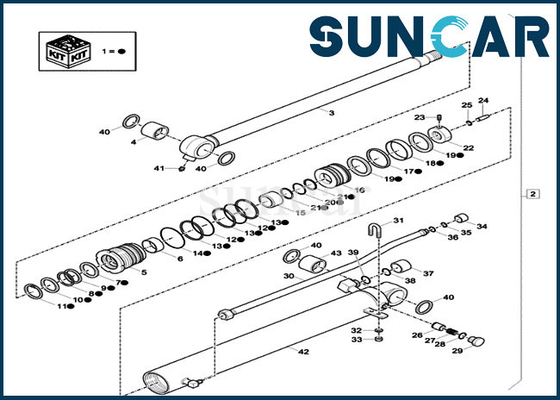

Related Parts:
Pos. | Part No. | QTY | Parts Name |
1 | XKCD-03072 | [1] | SEAL KIT |
2 | 31M9-50123CG | [1] | HYDRAULIC CYLINDER |
3 | XKCD-00964 | [1] | ROD |
4 | XKCD-02314 | [1] | BUSHING |
5 | XKCD-03069 | [1] | COVER |
6 | XKCD-00966 | [1] | BUSHING |
7 | XKCD-03070 | [1] | SEAL |
8 | XKCD-03071 | [1] | SEAL KIT |
9 | XKCD-00969 | [1] | BACK-UP RING |
10 | XKCD-02510 | [1] | ROD WIPER |
11 | XKCD-00971 | [1] | RING |
12 | XKCD-00972 | [2] | O-RING |
13 | XKCD-00973 | [3] | BACK-UP RING |
14 | XKCD-00974 | [1] | O-RING |
15 | XKCD-00975 | [1] | RING |
16 | XKCD-00976 | [1] | PISTON |
17 | XKCD-03918 | [1] | SEAL |
18 | XKCD-00978 | [1] | WEAR RING |
19 | XKCD-00979 | [2] | RING |
20 | XKCD-00980 | [1] | O-RING |
21 | XKCD-00981 | [2] | BACK-UP RING |
22 | XKCD-00982 | [1] | NUT |
23 | XKCD-00561 | [1] | SET SCREW |
24 | XKCD-02330 | [1] | PLUNGER |
25 | XKCD-01261 | [1] | RING |
26 | XKCD-00983 | [1] | VALVE |
27 | XKCD-00984 | [1] | SPRING |
28 | XKCD-00453 | [1] | SEAL |
29 | XKCD-00986 | [1] | PLUG |
30 | XKCD-00987 | [1] | PIPE |
31 | XKCD-00988 | [2] | U-BOLT |
32 | XKCD-00989 | [2] | WASHER |
33 | XKCD-00990 | [2] | NUT |
34 | XKCD-01116 | [1] | CAP |
35 | XKCD-00992 | [1] | O-RING |
36 | XKCD-00993 | [1] | O-RING |
37 | XKCD-01541 | [1] | CAP |
38 | XKCD-00995 | [1] | O-RING |
39 | XKCD-00996 | [1] | O-RING |
40 | XKCD-00997 | [4] | SEAL |
41 | XKCD-01024 | [1] | NIPPLE |
42 | XKCD-00962 | [1] | TUBE |
43 | XKCD-02314 | [1] | BUSHING |

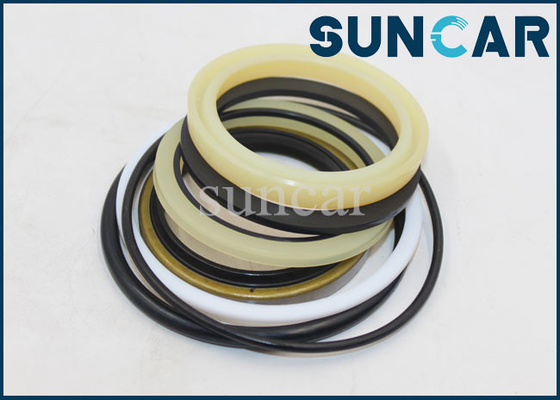

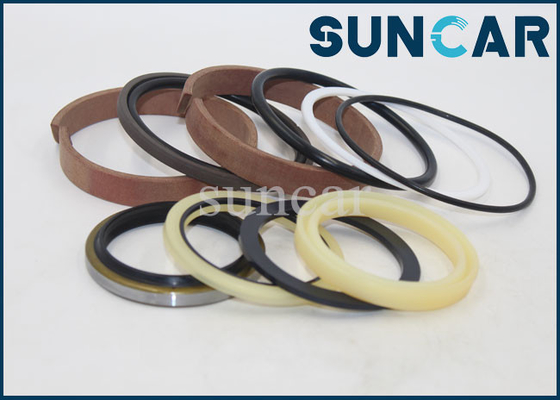

Product Show:
