VS Type Seals NBR FKM Water Guard Seals V-Ring Rotary Shaft Seal Ring

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number VS - ID
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 3000 set per month
Product Details
Size 5 ~ 200 Mm Temperature NBR: -40℃~+100℃, FKM: -20℃~+150℃
Pressure Max 0.03MPa Speed Max 20m/s
Media Water, Lubricating Greases Material NBR, FKM
High Light

Hydraulic Oil Seal

,

VS Type V-Ring

,

Rotary Shaft Seal Ring

Leave a Message
Product Description



VS Type Seals NBR FKM Water Guard Seals V-Ring Rotary Shaft Seal Ring



Product Name VS V-Ring Seals
Size 5 ~ 200 mm
Type VS

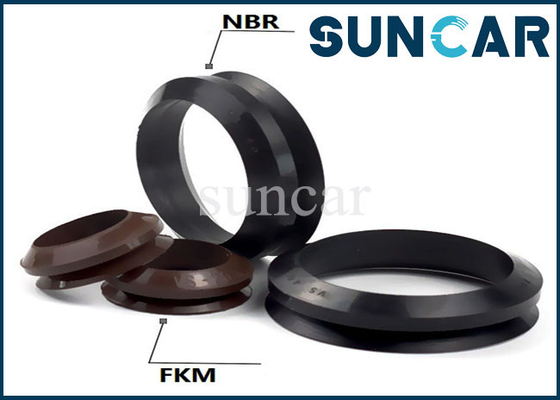

Material NBR, FKM
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Temperature NBR: -40℃~+100℃, FKM: -20℃~+150℃
Condition New, genuine new
Sample Available
Pressure Max 0.03MPa
Speed Max 20m/s
Media Water, Lubricating greases



Product Description:

* V-ring seals are axial shaft seals, available in a variety of sizes and suitable for a variety of applications.

* Seal with an axially acting, wear-resistant sealing lip.

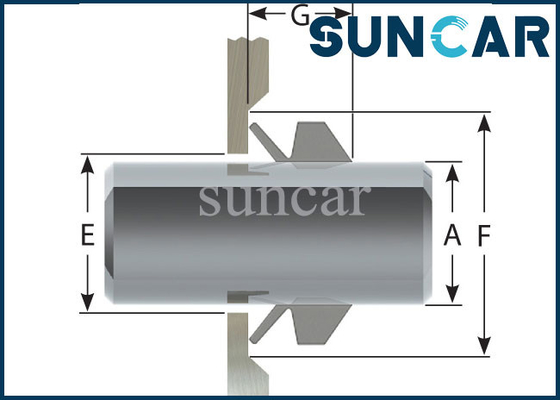

* VS has a standard low cross section, tapered back face and wide body, providing a firm hold on the shaft.

  • Advantages:

* Especially low frictional forces

* High axial working capacity

* Easy fitting

  • Application:

* Water guards are used in roller bearings for the retention of grease and to repel dust, scale, splash water, roller oil and similar media. Commonly used in agricultural and automotive.



Size Of VS Type Seals V-Ring Rotary Shaft Seal Ring:

4*8*3.9/5.2 20*28*7.9/10.5 49*59*9.5/13 99*113*13.1/18
4*8*3.9/5.2 20*28*7.9/10.5 49*59*9.5/13 99*113*13.1/18
5*9*3.9/5.2 22*30*7.9/10.5 54*64*9.5/13 108*122*13.1/18
5*9*3.9/5.2 22*30*7.9/10.5 54*64*9.5/13 108*122*13.1/18
6*10*3.9/5.2 25*33*7.9/10.5 58*68*9.5/13 117*131*13.1/18
6*10*3.9/5.2 25*33*7.9/10.5 58*68*9.5/13 117*131*13.1/18
7*11*3.9/5.2 27*35*7.9/10.5 63*75*11.3/15.5 126*140*13.1/18
7*11*3.9/5.2 27*35*7.9/10.5 63*75*11.3/15.5 126*140*13.1/18
9*15*5.6/7.7 29*37*7.9/10.5 67*79*11.3/15.5 135*149*13.1/18
9*15*5.6/7.7 29*37*7.9/10.5 67*79*11.3/15.5 135*149*13.1/18
10.5*16.5*5.6/7.7 31*39*7.9/10.5 72*84*11.3/15.5 144*160*15/20.5
10.5*16.5*5.6/7.7 31*39*7.9/10.5 72*84*11.3/15.5 144*160*15/20.5
12.5*18.5*5.6/7.7 34*42*7.9/10.5 76*88*11.3/15.5 153*169*15/20.5
12.5*18.5*5.6/7.7 34*42*7.9/10.5 76*88*11.3/15.5 153*169*15/20.5
14*20*5.6/7.7 36*46*9.5/13 81*93*11.3/15.5 162*178*15/20.5
14*20*5.6/7.7 36*46*9.5/13 81*93*11.3/15.5 162*178*15/20.5
16*22*5.6/7.7 40*50*9.5/13 85*97*11.3/15.5 171*187*15/20.5
16*22*5.6/7.7 40*50*9.5/13 85*97*11.3/15.5 171*187*15/20.5
18*26*7.9/10.5 45*55*9.5/13 90*102*11.3/15.5 180*196*15/20.5
18*26*7.9/10.5 45*55*9.5/13 90*102*11.3/15.5 180*196*15/20.5



Product Show:

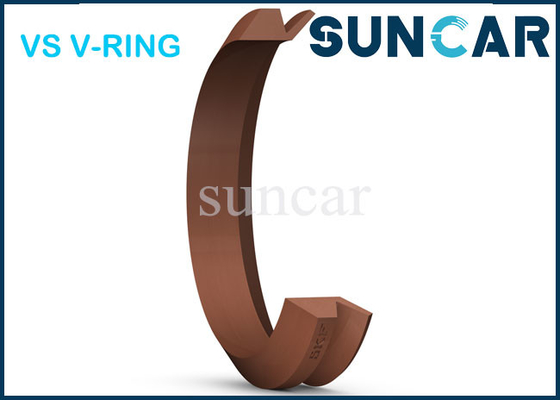

VS Type Seals NBR FKM Water Guard Seals V-Ring Rotary Shaft Seal Ring 0

VS Type Seals NBR FKM Water Guard Seals V-Ring Rotary Shaft Seal Ring 1
