VA V-Ring Seals NBR FKM Rotary Shaft Seal Ring Rubber V Type Seal

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number VA-ID
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 3000 set per month
Product Details
Product Name VA V-Ring Seals Temperature NBR: -40℃~+100℃, FKM: -20℃~+150℃
Pressure Max 0.03MPa Speed Max 20m/s
Media Water, Lubricating Greases Material NBR, FKM
High Light

Hydraulic Oil Seal

,

VA V-Ring

,

Seal Ring

Leave a Message
Product Description



VA V-Ring Seals NBR FKM Rotary Shaft Seal Ring Rubber V Type Seal



Product Name VA V-Ring Seals
Model Number VA-ID
Type V Type VA Seal
Material NBR, FKM
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Temperature NBR: -40℃~+100℃, FKM: -20℃~+150℃
Condition New, genuine new
Sample Available
Pressure Max 0.03MPa
Speed Max 20m/s
Media Water, Lubricating greases



Product Description:

  • The VA seal ring is attached to the shaft and rotates with the shaft. In addition, the tapered sealing lip prevents angular offset. The role of the VS type seal ring is to prevent the intrusion of external dirt and the leakage of internal grease. The intermediate connection part can ensure that the sealing lip produces a slight pressing force on the sealed surface to achieve a durable and effective sealing.



Advantage:

(1) Pure rubber elastomer material without metal parts.

(2) Reduced design work, no installation processing requirements.

(3) Elimination of shaft mating surface processing and surface accuracy, hardness requirements, the shaft surface does not have to be hardened.

(4) Easy and reliable installation and removal.

(5) The surface contact pressure is small, so the friction force is small, the friction loss and the friction heat are small, and the service life is long.

(6) Both sealed and dustproof.



Size Of VA V-RING Seal:

2.5*5.5*3 40*50*9 180*196*14.5 865*895*25
2.5*5.5*3 40*50*9 180*196*14.5 865*895*25
3.2*7.2*3.7 45*55*9 180*210*25 910*940*25
3.2*7.2*3.7 45*55*9 180*210*25 910*940*25
4*8*3.7 49*59*9 198*228*25 1000*1030*25
4*8*3.7 49*59*9 198*228*25 1000*1030*25
5*9*3.7 54*64*9 225*255*25 1045*1075*25
5*9*3.7 54*64*9 225*255*25 1045*1075*25
6*10*3.7 58*68*9 247*277*25 1090*1120*25
6*10*3.7 58*68*9 247*277*25 1090*1120*25
7*11*3.7 63*75*11 270*300*25 1135*1165*25
7*11*3.7 63*75*11 270*300*25 1135*1165*25
9*15*5.5 67*79*11 292*322*25 1180*1210*25
9*15*5.5 67*79*11 292*322*25 1180*1210*25
10.5*16.5*5.5 72*84*11 315*345*25 1225*1255*25
10.5*16.5*5.5 72*84*11 315*345*25 1225*1255*25
11.7*17.5*5.5 76*88*11 337*367*25 1270*1300*25
11.7*17.5*5.5 76*88*11 337*367*25 1270*1300*25
12.5*18.5*5.5 81*93*11 360*390*25 1315*1345*25
12.5*18.5*5.5 81*93*11 360*390*25 1315*1345*25
14*20*5.5 85*97*11 405*435*25 1360*1390*25
14*20*5.5 85*97*11 405*435*25 1360*1390*25
16*22*5.5 90*102*11 450*480*25 1405*1435*25
16*22*5.5 90*102*11 450*480*25 1405*1435*25
18*26*7.5 99*113*12.8 495*525*25 1450*1480*25
18*26*7.5 99*113*12.8 495*525*25 1450*1480*25
20*28*7.5 108*122*12.8 540*570*25 1495*1525*25
20*28*7.5 108*122*12.8 540*570*25 1495*1525*25
22*30*7.5 117*131*12.8 600*630*25 1540*1570*25
22*30*7.5 117*131*12.8 600*630*25 1540*1570*25
25*33*7.5 126*140*12.8 630*660*25 1585*1615*25
25*33*7.5 126*140*12.8 630*660*25 1585*1615*25
27*35*7.5 135*149*12.8 670*700*25 1630*1660*25
27*35*7.5 135*149*12.8 670*700*25 1630*1660*25
29*37*7.5 144*160*14.5 705*735*25 1675*1705*25
29*37*7.5 144*160*14.5 705*735*25 1675*1705*25
31*39*7.5 153*169*14.5 745*775*25 1720*1750*25
31*39*7.5 153*169*14.5 745*775*25 1720*1750*25
34*72*7.5 162*178*14.5 785*815*25 1765*1795*25
34*42*7.5 162*178*14.5 785*815*25 1765*1795*25
36*46*9 171*187*14.5 825*855*25 1810*1840*25
36*46*9 171*187*14.5 825*855*25 1810*1840*25



Product Show:

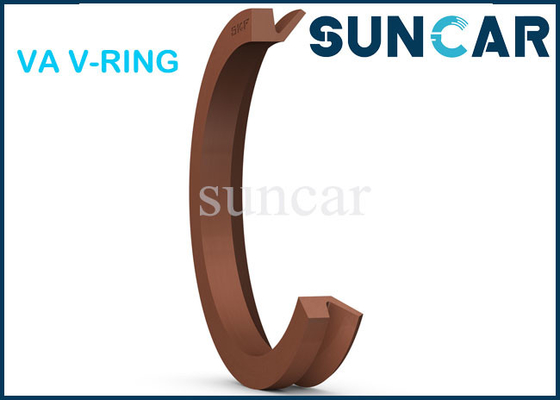

VA V-Ring Seals NBR FKM Rotary Shaft Seal Ring Rubber V Type Seal 0

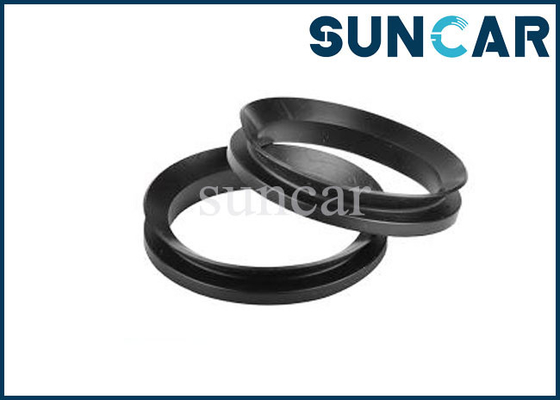

VA V-Ring Seals NBR FKM Rotary Shaft Seal Ring Rubber V Type Seal 1
