V-seal VL V-Ring Rotary Shaft Seal Ring NBR FKM Hydraulic Oil Seal

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number VL -ID
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 3000 set per month
Product Details
Product Name VL V-Ring Seals Temperature NBR: -40℃~+100℃, FKM: -20℃~+150℃
Pressure Max 0.03MPa Speed 0-30m/s
Media Water, Oil, Grease, Dust, Etc. Material NBR, FKM
High Light

Seal Ring

,

VL V-Ring

,

Rotary Shaft Seal Ring

Leave a Message
Product Description



V-seal VL V-Ring Rotary Shaft Seal Ring NBR FKM Hydraulic Oil Seal



Product Name VL V-Ring Seals
Model Number VL -ID
Type VL Seal
Material NBR, FKM
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Temperature NBR: -40℃~+100℃, FKM: -20℃~+150℃
Condition New, genuine new
Sample Available
Pressure Max 0.03MPa
Speed 0-30m/s
Media Water, oil, grease, dust, etc.



Product Description:

  • V-rings seal axially against a counter-face. This type of seal has proved to be reliable and effective against dust, dirt, water and oil splash and other media.
  • V-ring shaft seals provide effective protection against dry and wet contamination. The V-ring also reduces wear and extends the service life of the oil seal and bearings. The V-ring also performs well in dry running applications. Because it is all rubber and very elastic, it can be stretched over flanges or other components for easy installation with very little dis-assembly.

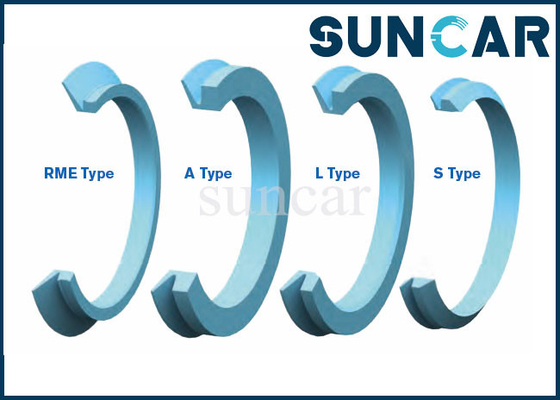

  • Type A V-rings with bevel back serves as a pressure less, axial rod seal with a very short mounting length, which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction. Available in the widest range of sizes from .110″ (2.7mm) shaft to 79.530″ (2020mm) nitrile and fluoroelastomer. Ideal for protecting gearboxes, electric motors and drives.
  • Type S V-rings with bevel back serves as a pressure-less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. Available in sizes from 180″ (4.5mm) shaft to 8.270″ (210mm). Commonly used in agricultural and automotive applications.

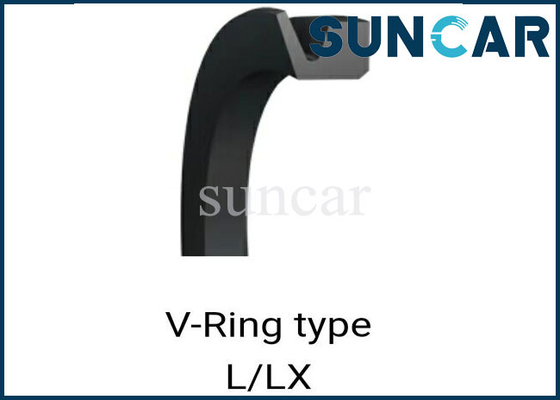

  • Type L V-rings with straight back serves as a pressure-less axial rod seal with a very small mounting length, which is clamped on the shaft. The flexible sealing lip seals a counterface at a right angle to the shaft preventing dirt, dust and splash to enter the construction.

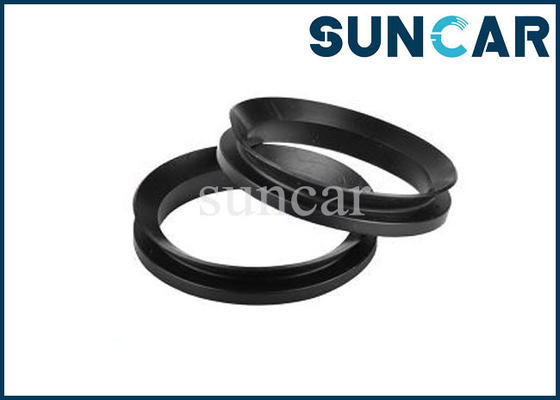

Product Show:

V-seal VL V-Ring Rotary Shaft Seal Ring NBR FKM Hydraulic Oil Seal 0

V-seal VL V-Ring Rotary Shaft Seal Ring NBR FKM Hydraulic Oil Seal 1



Size Of V-seal VL V-Ring Rotary Shaft Seal Ring:

117*130.21*10.41 162*175.21*10.41 270*283.21*10.41 382*395.21*10.41
117*130.21*10.41 171*184.21*10.41 270*283.21*10.41 382*395.21*10.41
126*139.21*10.41 171*184.21*10.41 292*305.21*10.41 405*418.21*10.41
126*139.21*10.41 182*195.21*10.41 292*305.21*10.41 405*418.21*10.41
135*148.21*10.41 182*195.21*10.41 315*328.21*10.41 450*463.21*10.41
135*148.21*10.41 198*211.21*10.41 315*328.21*10.41 450*463.21*10.41
144*157.21*10.41 198*211.21*10.41 337*350.21*10.41 495*508.21*10.41
144*157.21*10.41 225*238.21*10.41 337*350.21*10.41 495*508.21*10.41
153*166.21*10.41 225*238.21*10.41 360*373.21*10.41 540*553.21*10.41
153*166.21*10.41 247*260.21*10.41 360*373.21*10.41 540*553.21*10.41
162*175.21*10.41 247*260.21*10.41
