Rubber VE V-Ring Sealing Hydraulic Cylinder Piston Rod V Type Seal

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number VE -ID
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P, Paypal
Supply Ability 3000 set per month
Product Details
Product Name VE V-Ring Sealing Temperature NBR: -40℃~+100℃, FKM: -20℃~+150℃
Pressure Max 0.03MPa Speed 0-30m/s
Media Water, Oil, Grease, Dust, Etc. Material NBR, FKM
High Light

Piston Rod V Type Seal

,

Rubber VE V-Ring Sealing

,

Seal Ring

Leave a Message
Product Description



Rubber VE V-Ring Sealing Hydraulic Cylinder Piston Rod V Type Seal



Product Name VE V-Ring Sealing
Model Number VE -ID
Type V Type seal
Material NBR, FKM
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Temperature NBR: -40℃~+100℃, FKM: -20℃~+150℃
Condition New, genuine new
Sample Available
Pressure Max 0.03MPa
Speed 0-30m/s
Media Water, oil, grease, dust, etc.



Hydraulic Seals Element:

  • A sealing element is a mechanism used to prevent working mediums from leakage(internal and external leakage) and outside impurities (air,dust and water,etc) from entering the hydraulic elements and systems.
  • The sealing element is an important component of hydraulic equipment,the quality of seals and sealing devices can influence the performance,reliability and service lifetime of hydraulic element and hydraulic systems,and it is one of the key conditions that a hydraulic system can work normally.
  • Usually,the loss incurred by a failure sealing element is up to thousands of times of the value of the sealing element itself.
  • The piston rod seal is one of the main pressure elements inside the hydraulic cylinder, oneway pressure, the pressure is bigger, direct contact with hydraulic oil.
  • Piston rod seal is installed in the hydraulic cylinder end cover ,the inside of the dust seal, which is to prevent the hydraulic oil leakage. Requires, better holding performance under stationary state and higher pressure capability during movement, good sealing performance, small friction coefficient,strong ability to resist extrusion, etc.
  • The piston rod seal is mainly used in general hydraulic systems, machine tools, mining machinery, metallurgical machinery, standard hydraulic cylinders, general machinery, and other equipment.



Size Of  Rubber VE V-Ring Sealing:

ID 439 ID 565 ID 805 ID 1139
ID 439 ID 565 ID 805 ID 1157
ID 444 ID 570 ID 814 ID 1157
ID 444 ID 570 ID 814 ID 1176
ID 448 ID 575 ID 824 ID 1176
ID 448 ID 575 ID 824 ID 1195
ID 453 ID 582 ID 833 ID 1195
ID 453 ID 582 ID 833 ID 1218
ID 458 ID 592 ID 843 ID 1218
ID 458 ID 592 ID 843 ID 1240
ID 463 ID 602 ID 853 ID 1240
ID 463 ID 602 ID 853 ID 1259
ID 468 ID 612 ID 871 ID 1259
ID 468 ID 612 ID 871 ID 1281
ID 473 ID 621 ID 880 ID 1281
ID 473 ID 621 ID 880 ID 1305
ID 478 ID 631 ID 890 ID 1305
ID 478 ID 631 ID 890 ID 1328
ID 483 ID 650 ID 900 ID 1328
ID 483 ID 650 ID 900 ID 1350
ID 488 ID 660 ID 911 ID 1350
ID 488 ID 660 ID 911 ID 1374
ID 493 ID 670 ID 921 ID 1374
ID 493 ID 670 ID 921 ID 1397
ID 497 ID 680 ID 932 ID 1397
ID 497 ID 680 ID 932 ID 1419
ID 502 ID 689 ID 942 ID 1419
ID 502 ID 689 ID 942 ID 1443
ID 507 ID 699 ID 953 ID 1443
ID 507 ID 699 ID 953 ID 1467
ID 512 ID 709 ID 963 ID 1467
ID 512 ID 709 ID 963 ID 1495
ID 517 ID 718 ID 973 ID 1495
ID 517 ID 718 ID 973 ID 1524
ID 521 ID 728 ID 990 ID 1524
ID 521 ID 728 ID 990 ID 1559
ID 526 ID 735 ID 1008 ID 1559
ID 526 ID 735 ID 1008 ID 1596
ID 531 ID 743 ID 1027 ID 1596
ID 531 ID 743 ID 1027 ID 1632
ID 536 ID 751 ID 1045 ID 1632
ID 536 ID 751 ID 1045 ID 1671
ID 541 ID 759 ID 1065 ID 1671
ID 541 ID 759 ID 1065 ID 1714
ID 546 ID 768 ID 1084 ID 1714
ID 546 ID 768 ID 1084 ID 1753
ID 550 ID 777 ID 1103 ID 1753
ID 550 ID 777 ID 1103 ID 1794
ID 555 ID 786 ID 1121 ID 1794
ID 555 ID 786 ID 1121 ID 1844
ID 560 ID 796 ID 1139 ID 1844
ID 560 ID 796



Product  Show:

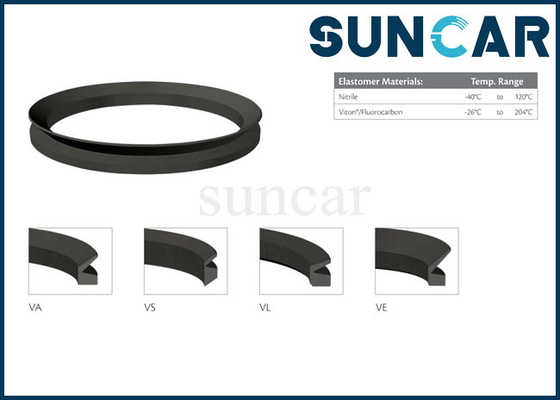

Rubber VE V-Ring Sealing Hydraulic Cylinder Piston Rod V Type Seal 0

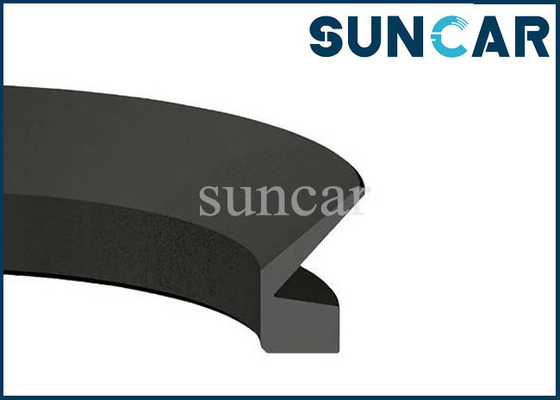

Rubber VE V-Ring Sealing Hydraulic Cylinder Piston Rod V Type Seal 1
