8605263 Bucket Seal Kit CASE 721D Model Cylinder Repair Sealing Kit Loader Machinery Seal
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | 8605263 CASE 721D |
CertifiC.A.Tion | ISO9001 |
Minimum Order Quantity | 100 PCS |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
Supply Ability | 1000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPart Number | 8605263 | Sample | Available |
---|---|---|---|
Rod | 3 | Bore | 5-3/4 |
Cylinder No. | 8605291 | AppliC.A.Tion | Loader Bucket |
High Light | 8605263 Bucket Seal Kit,CASE Seal Kit,Cylinder Repair Sealing Kit |
8605263 Bucket Seal Kit CASE 721D Model Cylinder Repair Sealing Kit Loader Machinery Seal
Product Name | Case Bucket Seal Kit |
Part Number | 8605263 |
Model | CASE 721D |
Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Payment Terms | Western Union, Paypal, T/T, Transfer |
CertifiC.A.Tion | ISO9001 |
Warranty | Unavailable |
Customized | OEM & ODM are welcomed |
C.A.Tegory Group | Hydraulic cylinder seal kit |
Condition | New, genuine new |
Sample | Available |
Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
Feature | High sealing performance/ wear resistance |
Rod | 3 |
Bore | 5-3/4 |
Cylinder No. | 8605291 |
AppliC.A.Tion | Loader bucket |
Product Description:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
- There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
- Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
- Arm cylinder is the top one, and it's usually be called as top cylinder;
- Bucket cylinder is the one that connects and controls the bucket.
Related Parts:

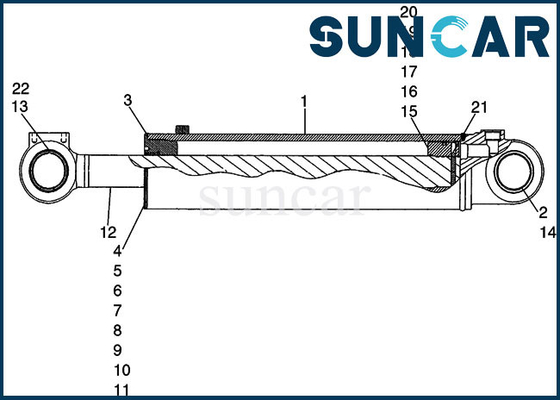

Pos. | Part No. | QTY | Parts Name |
. . | REF | [1] | INSTRUCTION |
. . | 8605291 | [1] | BUCKET CYLINDER |
. . | 87318786R | [1] | REMAN-HYD CYLINDER |
. . | 87318786C | [1] | CORE-HYD CYLINDER |
1 | 447832A1 | [1] | TUBE |
2 | 87625612 | [2] | BUSHING |
3 | 276-2446 | [1] | SELF-TAP SCREW |
. . | 446335A1 | [1] | GLAND |
4 | 446336A1 | [1] | GLAND |
5 | D95148 | [1] | WIPER SEAL |
. . | 1542881C1 | [1] | SEAL KIT |
6 | NSS | [1] | NOT SOLD SEPARAT |
7 | NSS | [1] | NOT SOLD SEPARAT |
8 | 336042A1 | [1] | BUSHING |
9 | 238-5254 | [1] | O-RING |
10 | 446179A1 | [1] | SEALING RING |
11 | 238-5253 | [1] | O-RING |
12 | 87417334 | [1] | PISTON ROD |
13 | 87417464 | [2] | BUSHING |
14 | 365523A1 | [2] | WIPER SEAL |
. . | 446337A1 | [1] | PISTON |
15 | 446338A1 | [1] | PISTON |
16 | 446339A1 | [1] | SEAL |
17 | 446340A1 | [1] | SEALING RING |
18 | 238-6234 | [1] | O-RING |
19 | G32122 | [1] | BACK-UP RING |
20 | 446196A1 | [1] | SEALING RING |
21 | 356588A1 | [1] | DOWEL |
. . | 8605263 | [1] | SEAL KIT |
22 | L128725 | [2] | SEAL |
Our Mission:
- Our company is leading seal kit maker specially for hydraulic cylinder seal product.
- Our product range is:
* Whole hydraulic seal for construction machinery and industrial used.
* Repair seal kit(for Doosan, Hyundai, SUNCARSUNCARSUNCARVO.L.VO, Komatsu, Hitachi, Kobelco, C.A.T...etc)
* Hydraulic breaker seal
* Hydraulic breaker seal kit
* Floating seal
* Machined seal(made by SUNCAR for special size by special material) etc.
- SUNCAR seals made a remarkable growth of quality and quality control, the quality already have reached or surpassed the global major leading seal maker quality with very reasonable cost. Our motto is to provide to our costumer most reliable, most superior, most reasonable sealing solution to satisfy customer requirement.

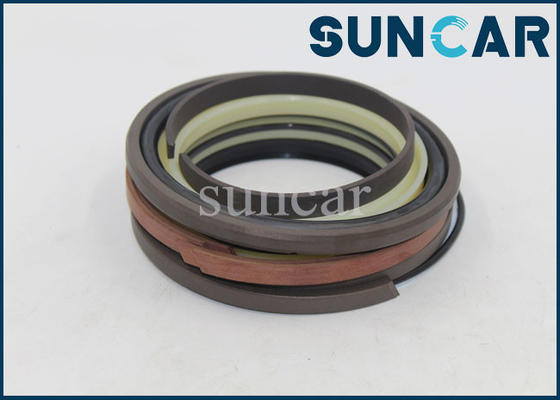

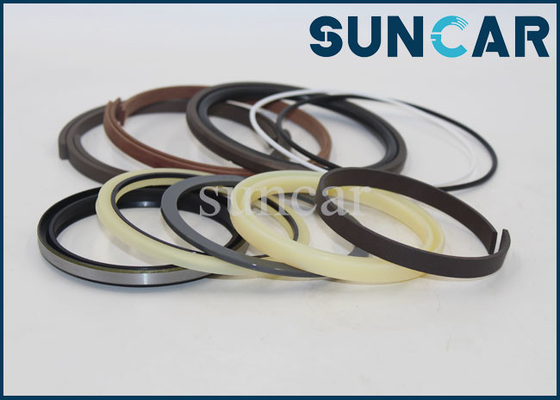

Product Image:
