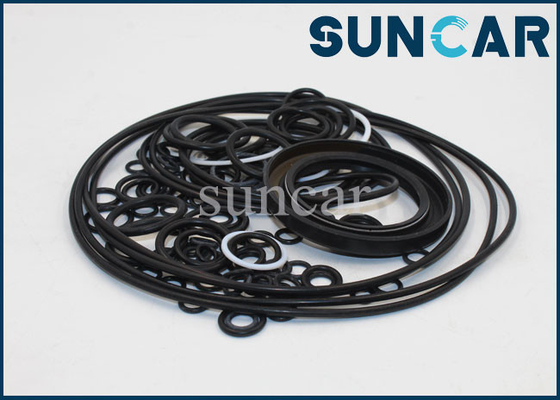

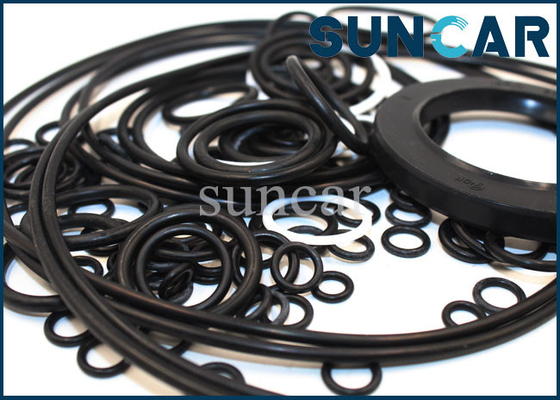

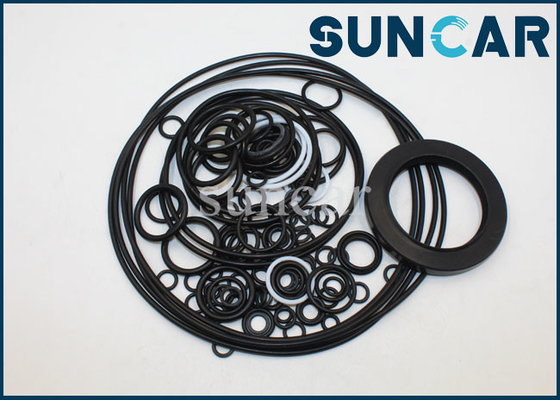

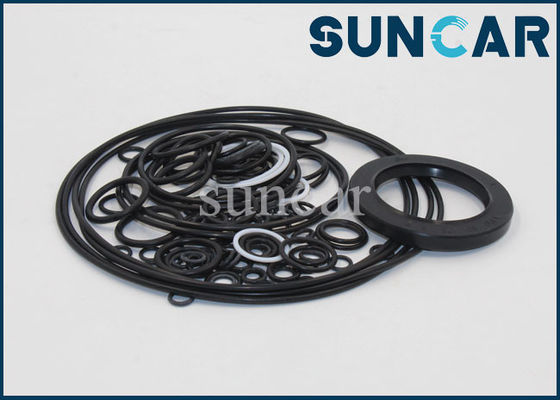

Doosan Main Pump Repair Kit 2401-9233KT BODY REGU Seal Kit For SOLAR 290LC-V SOLAR 330LC-V Excavator

Place of Origin	CHINA
Brand Name	SUNCAR
Certification	ISO9001
Model Number	2401-9233KT DOOSAN SOLAR 290LC-V, SOLAR 290LL, SOLAR 330LC-V
Minimum Order Quantity	Trial order acceptable
Price	Negotiable
Packaging Details	PP bag inside,carton box outside （as your request）
Delivery Time	5-7 work days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000sets Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Main Pump Repair Kit	Availability	In Stock
Category	Hydraulic Pump Seal Kit	Part Number	2401-9233KT, 24019233KT
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ	Application	Machinery Repair Shops, Construction Works
High Light	Hydraulic Pump Seal Kit , Main Pump Sealing Kit , 2401-9233KT BODY REGU Seal Kit

Leave a Message

Product Description

Doosan Main Pump Repair Kit 2401-9233KT BODY REGU Seal Kit For SOLAR 290LC-V SOLAR 330LC-V Excavator

Product Name	Main Pump Repair Kit
Part Number	2401-9233KT, 24019233KT
Model	DOOSAN SOLAR 290LC-V, SOLAR 290LL, SOLAR 330LC-V
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
Certification	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
Category Group	Main pump seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High sealing performance/ wear resistance
Application	Doosan main pump

Basic Requirements For Sealing Materials:

The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:

1. Have certain mechanical properties, such as tensile strength, elongation, etc.;

2. Appropriate elasticity and hardness, small compression set;

3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;

4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;

5. Good oxygen resistance and aging resistance, durable;

6. Abrasion resistance, no corrosion to metal;

7. Easy to shape and process, low price.

Related Parts:

Pos.	Part No.	QTY	Parts Name
*.	2401-9233KT	[1]	SEAL KIT;BODY+REG.
-.	2401-9233A	[1]	MAIN PUMP
-.	716243	[1]	PUMP BODY ASS'Y
-.	704527-PH	[1]	CYLINDER ASS'Y(RH)
-.	704529-PH	[1]	CYLINDER ASS'Y(LH)
-.	704528A	[2]	PISTON ASS'Y
-.	717010	[2]	SWASH PLATE ASS'Y
-.	717007	[2]	TILTING PIN ASS'Y
-.	2401-9233	[1]	MAIN PUMP
111	113682A	[1]	SHAFT;DRIVING(FRONT)
113	120415	[1]	SHAFT;DRIVING(REAR)
114	113710	[1]	COUPLING;SPLINE
123	212283	[2]	BEARING;ROLLER
124	212285	[2]	BEARING;NEEDLE
127	113683	[4]	SPACER;BEARING
141	128047B	[1]	BLOCK;CYLINDER
141	128047B	[1]	BLOCK;CYLINDER
151	113697A	[18]	PISTON
152	113698A	[18]	SHOE
153	113692	[2]	PLATE;PUSH
156	113693	[2]	BUSH;SPHERICAL
157	113695	[18]	SPRING;CYLINDER
158	113694	[2]	SPACER
211	113691	[2]	PLATE;SHOE
212	113690	[1]	PLATE;SWASH
214	113625	[1]	BUSH;TILTING
251	113689	[2]	SUPPROT
261	113681	[1]	COVER;SEAL(F)
271	113696	[2]	CASING;PUMP
310	707451	[1]	VALVE BLOCK ASS'Y
312	113701A	[1]	BLOCK;VALVE
313	113700	[1]	PLATE;VALVE
314	113711	[1]	PLATE;VALVE
325	120592	[1]	CASING;VALVE
401	113714	[8]	BOLT;SOCKET M20X2.5X235
406	200848	[4]	BOLT;SOCKET M8X1.25X30
407	200838	[3]	BOLT;SOCKET M6X1.0X65
468	108847	[3]	PLUG;VP
469	108848	[2]	PLUG PF1/8
490	211665	[23]	EXPANDER
531	113685	[1]	PIN;TILTING
532	113687	[2]	PISTON;SERVO
534	113684	[2]	STOPPER(L)
535	113688	[2]	STOPPER(S)
539	704550A	[1]	CHECK 1 ASS'Y
540	704544A	[1]	CHECK 2 ASS'Y
541	113706	[4]	SEAT
542	113704	[2]	SPACER
543	113705	[2]	STOPPER 1
544	113703	[2]	STOPPER 2
545	200166	[4]	BALL;STEEL
548	113380	[1]	PIN;FEEDBACK
702	201662	[2]	O-RING 1BG40
710	201631	[2]	O-RING 1BG105
717	212281	[2]	O-RING
719	212284	[2]	O-RING
724	201765	[16]	O-RING 1BP8
725	201689	[2]	O-RING 1BP11
726	S8000145	[3]	O-RING 1BP14
728	201721	[3]	O-RING 1BP24
732	201716	[2]	O-RING 1BP21
774	212232	[1]	SEAL;OIL
789	200091	[2]	RING;BACK-UP
79	707847	[1]	VALVE;ELECTRO PROPORTIONAL
792	200071	[2]	RING;BACK-UP
808	102048	[2]	NUT M20
824	212282	[2]	RING;SNAP
885	113715	[2]	PIN
886	200678	[4]	PIN;SPRING
901	212286	[2]	BOLT;EYE
953	212280	[2]	SCREW;SET
954	113702	[2]	SCREW;ADJUST
