Wear Resistant Floating Oil Seal NBR Material O-ring Seals

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number Floating Seal
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 1000 pcs per month
Product Details
Product Standard Size Inner Diameter 50 Mm ~ 865 Mm Seal Service Life 4,500 Hours
Pressure Resistance 1.0 ~1.7 Mpa Speed 3 M / Sec
Sample Available Condition New, Genuine New
High Light

Hydraulic Oil Seal

,

Floating Seal

,

Seal Ring

Leave a Message
Product Description



O-ring Floating Oil Seal



Product Description:

Floating seals are seals used in harsh environments such as undercarriage equipment for construction machinery and agricultural machinery. A seal product consisting of a special metal ring that is resistant to wear and an O-ring / packing made of rubber. By sliding the metal seal surface at the bearing, lubricating oil inside the equipment and intrusion of muddy water, earth and sand from the outside, etc. To prevent. A pair of the same shape is combined, and when the O-ring packing is deformed, the metal seal part is moved to the center of the groove and floats with respect to the shaft, so it is called a floating seal.



Product Parameters:

Product Name Floating Seal
Seal Surface Metal Material Cast bearing steel Hardness HRC 65 ~ 72
Product Standard Size Inner diameter 50 mm ~ 865 mm
Outside Standard Size Up to an inner diameter of 1,500 mm
Seal Service life 4,500 hours
Seal Metal Surface Roughness Ra 0.1 or less (contact surface only)
Metal Guarantee Flatness 0.015 mm Max (mean: 0.003 mm ~ 0.004 mm)
Pressure Resistance 1.0 ~1.7 Mpa
Heat Resistance 20 ℃ ~ + 90 ℃ (for NBR) Low temperature and high temperature are possible depending on the material of the attached O-ring
Speed 3 m / sec
Attached O-ring Manufactured with in-house equipment (some outsourced products)
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Condition New, genuine new
Sample Available

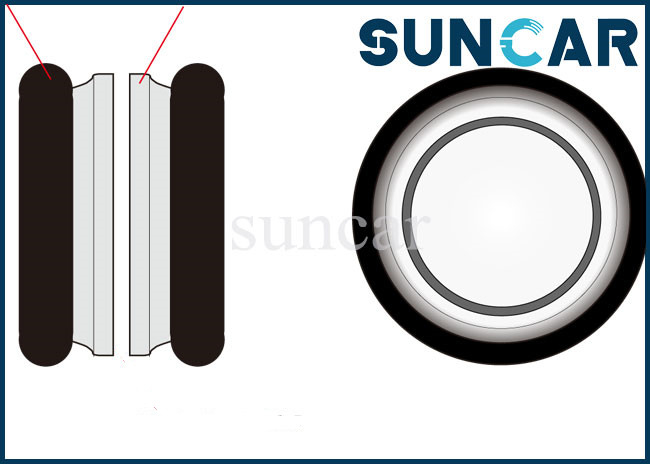

Wear Resistant Floating Oil Seal NBR Material O-ring Seals 0

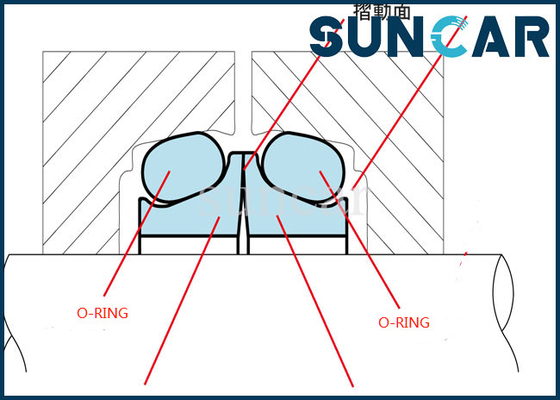

Floating Seal Structure:

  • There are two types of floating seals, one is a general type that uses an O-ring, and the other is a special type that uses a rubber product with a diamond-shaped cross section instead of the O-ring. Both types consist of two metal rings with the sealing surfaces polished to each other.
  • A pair of these two metal rings are incorporated into separate housings so that the sealing surfaces are in contact with each other, and the O-rings combined with the outer peripheral surface serve to position the entire seal in the center of the housing and perform the sealing function. ..
  • The housing shape is usually machined on an NC lathe.



Usage:

◇ Construction machinery (undercarriage of vehicle machinery such as power shovels and bulldozers)

◇ Agricultural machinery (undercarriage, attachment parts such as halo and rotary)

◇ Conveyor device

◇ Reducer

◇ Concrete mixer

◇ Mortar mixer

◇ Large special vehicle

◇ Forestry machinery

◇ Tunnel excavator (shield machine)

◇ Mining machinery



Floating Seal Size:

Wear Resistant Floating Oil Seal NBR Material O-ring Seals 1



22*31*20 101*120*29 174*190*25.4 300*325*38
30.5*42.5*17.5 102*118*27 176*195*28 300*325*38
34*45*14 103*122*32 177*200*30 300*330*40
38*50*20.6 103*122.5*32 178*197.4*21.4 301*328*38
38*51*20.4 104*117*22 178*199*32 304*334*38
39*50*14 104*121*22 178*200*38 309*337*40
40*52*20 104*122.5*22.5 A:178*200/210.6*19 318*340*38
43*58*24 104*125*28 182*210*38 318*341*38
45*58*21 107*125*24 182*210*46 318*346*38
45*59*26.8 109*132*31 186*203*32 318*346*40
46*59*20 109*132*32 186*203*25.4 319*346.5*46
46*60*24 110*127*32 188*218*38 320*348*40
48*58*14.4 110*128*32 188*220*40 335*368/373*40
48*62*25 111*128*22 189*205*28.5 340*368*40
48*62*26 113*131.5*29.4 190*215*36 340*368*40.8
51*65*23 114*137*31 190*216*36 340*370*40
51*65.6*26.8 115*137*31 191*210*29 350*375*38
54*68*24 116*138*32 192*215*33 355*375*38
55.5*70*22 117*138*32 A:192*215/220.8*16.5 356*381*38
56*70*26 117*140*28 200*228.5*38 366*394*38
57.5*74*25 117*140*29 201*222.3*26.5 366*394*40
57.5*75*25 118.5*139.5*28 205*227*30 366*394*46
58*75*27 119*140*28 208.7*222.8*26 366*394*48
60*74*20.6 120*139*32 209*234*42 370*398*38
61*73*17.6 120*140*32 210*240*41 370*400*40
63*80.5*26 120*141*32 217*244*37 380.5*405*40
63.5*79*25 120*142*38 218*240*37 388*415*38
63.5*82.5*32 121*140*30 220*239.5*32 388*416*38
64*78*25 124*141*22 220*241.4*25 388*417*38
66.5*83*31.5 125*136.5*32 220*240*26 420*450*42
67*80*20 126*146*32 220*245*36 424*454*42
67.5*86.5*32 126.5*139*26.8 220*246*41 428.5*454*37
68*89*24 127*141*25.4 223*246*36 429*457*38
69*84*24 127*141*29 223.5*251.5*38 430*459.2*38
69*89*24 127*146*32 223.5*251.5*46 448*483*20/43
70*84*20 130*150*32 2250*252*38 450*477*44
70*87*21 130*151*33 A:225*253/258*18.5 450*480*50
70*89*24 130*152*32 225.5*253*40.8 455*483*44
70*90*28 130*152*38.5 227.7*260.5*41 457*492*38
70*90*29 135.5*154.5*28 230*260*36 465*495*43.6
71*84*20 137*153*30 231*259*36 465*497.2*43.6
72*91.4*36.4 140*155*25 231.6*259.6*38 470*500*50
72.5*92*35.6 140*160*33 235*258*34 472*500*50
73*92*32 143*157*25.4 235*260*36 500*527*43.6
73.5*88.5*20.4 143*157*27 235*265*42 505.5*533.4*44
74*86.5*22.5 143*160*27 238*261*32 507*547*60
74.6*93.3*29 146*168*34 239*268*40 528*570*42
75*94*29 146*168*38 240*262.8*38 530*560*50
75*94.5*32 146*172*38 240*267*42 538*566.8*43.6
75*97*26 146*175*38 240.5*268*38 538*580*31/65
77*94*29 147*167*28 245*274*42 555*590*42
77.5*87.6*13.6 148*170*31 A:209*234/243.2*21 559*590*50
79.5*92.5*20 150*167*28 247*270*40 576*608*43.6
80*100*30 150*171*32 250*276*44 581.5*608*43.6
81*98*28 A:150*172*40 250*270*30 591*623*50
82.5*102*35.6 152*171.5*32 A:250*270*10 596*628*50
83*102*28 153*171.5*28 252*280*38 660*695*53
85*99*20 154*168*27 254*280*36 667*700*43.6
88*108*24 154*168*25.4 260*288*40 667*700*45
88.75*108*29.4 154*169*22 A:209*234/242.6*21 667*700*50
90*105*26 154*170*21 261.5*288.5*40 710*750*50
90*109*32 154*173.5*32 265*292*38 718*750*50
90.4*109.5*35.6 154*178*34 265*292.8*38 730*768*50
90.5*109.5*32 A:154*174/178.5*16 265*292.8*46 770*826*80
91*110*32 157*177*38 265*294*38 780*836*80
92*109*22 159.5*180*32 272*300*40 817*865*46.6
94*106.5*23 160*180*32 275*303*38 825*865.3*48
95*114*32 160*194*38 280*310*40 830*886*80
96.5*106.6*13.6 163*191*38 282*314*40 832*865*43.6
98.5*119*29 163*191*46 282.9*310.8*38 832*865*46.6
98.5*120*29 164*189*30 A:250*277/284.6*22 902*941*60
99*120*28 165*181*27 A:250*277/284.6*22 920*976*80
100*112.4*32 165*194*38 295*328*40 1030*1085*80
100*118*31 172*194*32 298*328*40.8 1044*1104*80
100*119*32 172.5*190*25.4 300*328*40 1175*1236*80
B:166*184.5*10 B:160*180*11 B:182.6*210*11.2 1372*1425*80
B:201*230*13.2 B:222*254.7*11 B:216*245*10.5 B:250*270*15
B:216*260*13.5 B:247*284*13 B:248*290*13



Part Number Of Floating Seal:

4176379 ES 100-98-201 4110358 GNL-R5573
58645-01500 76.90H-01 GNL5750 5M1176
GNL 5200 76.97H-08A3 GNL 5740 ES 100-182-201
E85-140-03005 10Y-40-10006 GNL 4850 8P1848, 9W6674
GNL 5210 201-30-73410 GNL 5680 207-27-00010
4122070 4153731 GNL 1800 ES 100-192-202
GNL 4700 20Y-30-00101 GNL 4840 GNL5420
GNL 5240 76.90H-08A2 GNL 5700 GNL 3344
110-30-00045 GNL 8000 GNL 4815 GNL 3319
ES 100-45-201 GNL 0485 GNL 4910 GNL 4830
110-30-00085 GNL 4825 GNL 5730 GNL 3870
GNL 4310 GNL5500 GNL 3840 76.90H-81
GNL 4200 GNL 5442 1M8748 GNL 5820
110-30-14260 195-30-16242 4153732 GNL 5110
760S045FS 10Y-18-00007 76.90H08A4 GNL 5650
4122070 195-30-00035 9W7228 GNL 5880
GNL 4340 130-27-00020 4507221 ES 100-239-202
8E5609 16Y-18-00008 GNL 5450 ES 100-220-204
76.97H-32 150-27-00015 GNL 0445 207-27-00010
GNL0495 71400940 ES 100-154-203 141-27-00025
4128201 GNL 5815 4K6049 76.90H-109
GNL 0440 GNL 4710 5K1078 76.90H-25
111-40-01004 GNL 5549 4110364 4114753
GNL 4320 76.97H-52 76.97H-17 76.90H-41
10Y-40-03003 9W7209 180-27-00020 5M8647
140-30-00040 4128202 76.90H-55 8P1252
4060225 GNL 5800 9W667 130-27-00010
9W7216 76.90H-09A2 76.90H-61A4 ES 100-225-201
76.90H-01A1 GNL 5360 76.90H-65A1 10Y-18-00017
20Y-30-00070 GNL 5460 76.90H-65A2 76.90H-62
76.90H-53 207-30-00101 76.90H-65A5 GNL 4955
2M2858 3S0303 76.90H-65 GNL 3860
GNL 5630 GNL 0450 76.90H-74 14X-27-00100
GNL 5220 76.90H-022 GNL 4975 5M1177
GNL 5840 GNL 4220 76.90H-89 76.90H-40
GNL 5590 5P7146 76.90H-146 GNL 0415
GNL 4895 1P7249 76.90H-82 GNL 5720
GNL 3767 170-27-00010 76.90H-83 141-27-00010
7G0519 198-30-16612 76.90H-83A2 9W6691
GNL 5480 5P9121 76.90H-76 9G5323
76.97H-05 170-27-00011 76.90H-90 4514259
GNL 5850 GNL 5690 76.90H-75 ES 100-250-201
R 33607 5K5285 76.90H-75A2 4138544
141-30-36284 76.90H-12A2 GNL 3875 GZ5810
141-30-00610 5K5288 76.90H-75A3 566-33-00010
4176824 ヤンマーYB-20 GNL 0430 14Y-18-00016
1M8747 76.97H-14 76.90H-86 5M7294
GNL 3750 76.97H-13 76.90H-80A1 9W6689
76.90H45 9W6645 76.90H-154 ES 100-265-201
154-30-12271 GNL 5540 76.90H-127 6P3595
150-30-00035 76.97H-15 76.90HEL-127A1 5P0991
GNL 4900 100-27-00030 76.90H-127A1 GNL 3518
GNL 4330 GNL 5595 76.90HEL-127A2 GNL 5845
GNL 5535 76.90H-16A4 76.90H-80 GNL 3776
GNL 5825 9W7211 76.90H-141 76.90H-27
GNL 5230 GNL 0490 76.90H-155 GNL 3779
GNL 4930 GNL 4810 76.90H-106A2 150-27-00029
76.90H-07 GNL 0425 76.90H-106A4 16Y-18-00034
GNL 3770 175-27-32711 76.90H-156 150-27-00025
GNL3710 GNL 4350 76.90H-147 ES 100-300-201
20Y-30-00040 GNL 0435 GNL 0460 9W7201
9P9663 GNL 3120 GNL 3820 4200413
76.90H-05A2 GNL 5620 GNL 5830 GNL 5835
22B-30-16200 GNL 0475 4066695 GZ0420
4153468 OK5100 GNL 5860 76.90H-28
ES 100-90-202 4285046 76.90H-60A3 GNL 3621
20Y-30-00041 9W6667 76.90H-61 76.90H-28A6
GNL 3503 GNL 4970 76.90H-70 CR3618
GNL 3742 GNL 5870 GNL 4965 170-27-00020
22Y-30-16211 GNL 0470 GNL 3980 170-27-12513
1M8746 GNL 4360 GNL 5140 76.90H-30
4643157 GNL 5534 287-33-00010 76.90H-30A1
20Y-30-00100 GNL 5545 GNL 5895 GNL 3800
GNL 5770 7M0481 76.90H-70A1 76.90H-60A2
GNL 5600 8P1857 GNL 5760 9W7204
5P7143 9W6669 GNL 0455 76.97H-21
205-30-00050 9W7331 GNL 3810 4513173
76.97H-39 76.90H-124 9W7207 GNL-5573
75-30-36273 76.90H-47 6S3285 GNL 5865
170-30-00110 GNL 5525 9W7220 22Y-40-15005
