L-shaped Type Floating Seal

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number L-shaped Floating Seal
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 1000 pcs per month
Product Details
Product Standard Size Inner Diameter 50 Mm ~ 865 Mm Seal Service Life 4,500 Hours
Pressure Resistance 1.0 ~1.7 Mpa Speed 3 M / Sec
Sample Available Condition New, Genuine New
High Light

Hydraulic Oil Seal

,

Seal Ring

,

Floating Seal

Leave a Message
Product Description



L-shaped Type Floating Oil Seal



Product Description:

Floating seals are seals used in harsh environments such as undercarriage equipment for construction machinery and agricultural machinery. A seal product consisting of a special metal ring that is resistant to wear and an O-ring / packing made of rubber. By sliding the metal seal surface at the bearing, lubricating oil inside the equipment and intrusion of muddy water, earth and sand from the outside, etc. To prevent. A pair of the same shape is combined, and when the O-ring packing is deformed, the metal seal part is moved to the center of the groove and floats with respect to the shaft, so it is called a floating seal.



Product Parameters:

Product Name L-shaped Floating Seal
Seal Surface Metal Material Cast bearing steel Hardness HRC 65 ~ 72
Product Standard Size Inner diameter 50 mm ~ 865 mm
Outside Standard Size Up to an inner diameter of 1,500 mm
Seal Service life 4,500 hours
Seal Metal Surface Roughness Ra 0.1 or less (contact surface only)
Metal Guarantee Flatness 0.015 mm Max (mean: 0.003 mm ~ 0.004 mm)
Pressure Resistance 1.0 ~1.7 Mpa
Heat Resistance 20 ℃ ~ + 90 ℃ (for NBR) Low temperature and high temperature are possible depending on the material of the attached O-ring
Speed 3 m / sec
Attached O-ring Manufactured with in-house equipment (some outsourced products)
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Condition New, genuine new
Sample Available
Related Part Number

CR 86850, CR 93115, CR 95620, CR 171025, CR 108710,

CR 137570, CR 124020, 921157.0007, A1205G2581

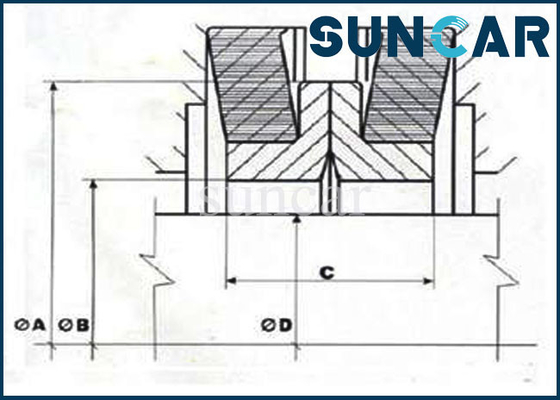

Floating Seal Structure:

  • There are two types of floating seals, one is a general type that uses an O-ring, and the other is a special type that uses a rubber product with a diamond-shaped cross section instead of the O-ring. Both types consist of two metal rings with the sealing surfaces polished to each other.
  • A pair of these two metal rings are incorporated into separate housings so that the sealing surfaces are in contact with each other, and the O-rings combined with the outer peripheral surface serve to position the entire seal in the center of the housing and perform the sealing function. ..
  • The housing shape is usually machined on an NC lathe.



Usage:

◇ Construction machinery (undercarriage of vehicle machinery such as power shovels and bulldozers)

◇ Agricultural machinery (undercarriage, attachment parts such as halo and rotary)

◇ Conveyor device

◇ Reducer

◇ Concrete mixer

◇ Mortar mixer

◇ Large special vehicle

◇ Forestry machinery

◇ Tunnel excavator (shield machine)

◇ Mining machinery



Basic Requirements For Sealing Materials:

  • The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:

1. Have certain mechanical properties, such as tensile strength, elongation, etc.;

2. Appropriate elasticity and hardness, small compression set;

3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;

4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;

5. Good oxygen resistance and aging resistance, durable;

6. Abrasion resistance, no corrosion to metal;

7. Easy to shape and process, low price.



Size Of L-shaped Floating Seal:

46*59*19 87.5*109*18 174.5*197*22 283*305*42
53.5*67*16.8 88*104*17 194*222*32 285*317*38
54*70*20.4 90*115*32 214.5*242.5*39 320*352*40
58.5*80*19 93*120*24 226*246*40 321*352*38
60*76*20 99*123*19 226*256*40 355*392*39.2
73*90*21.6 102.5*118.8*20.4 227.8*260.6*41 442*470*40
74*93*20 112*136*26 241*273*36 500*534*42
76*90*17 143*165*28 247*277*42 535*580*45
87*111*19 155*180*34 248*270*41 563*596*46

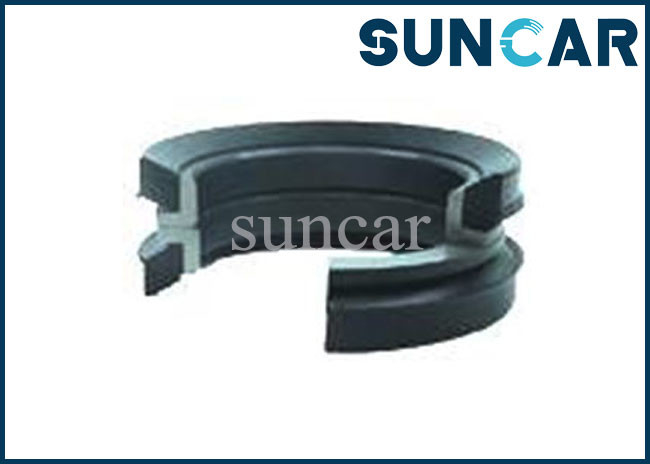

Product Show:

L-shaped Type Floating Seal 0
