Hydraulic Cylinder Seal Kit

31Y1-28790 Arm Cylinder Seal Kit Service Kit For R210LC-9 R210NLC-9 Hyundai HCE Machinery Parts

All Category

Piston Seals And Piston Rod Seals

Main Valve Seal Kit

Miss. Alina

Alina@suncarseals.com

86-14749308310

Contact Now

31Y1-28790 Arm Cylinder Seal Kit Service Kit For R210LC-9 R210NLC-9 Hyundai HCE Machinery Parts

Brand Name:	SUNCAR
Model Number:	31Y1-28790 Hyundai R210LC-9, R210LC-9BC, R210LC-9BH, R210NLC-9, R220LC-9S(BRAZIL), R220LC-9S, R220LC-9SH, R220LC-9A, R220NLC-9A, R235LCR-9, R235LCR-9A, RB220LC-9S...
MOQ:	Trial order acceptable
Price:	Negotiation
Packaging Details:	PP bag inside, carton box outside
Payment Terms:	Western Union, L/C, T/T, , D/A, D/P, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA(MAINLAND)

Product Name:

Arm Cylinder Seal Kit

Part Number:

31Y1-28790

Cylinder No.:

31Q6-50400

Preservation Notice:

Closed, Dry And Avoid The Sun

100 MM

Bore:

140 MM

Supply Ability:

1000 set per week

Highlight:

HYUNDAI Seal Kit

Arm Cylinder Seal Kit

31Y1-28790 Excavator Service Kit

Product Description

31Y1-28790 Arm Cylinder Seal Kit Service Kit For R210LC-9 R210NLC-9 Hyundai HCE Machinery Parts

Product Name	Arm Cylinder Seal Kit
Part Number	31Y1-28790
Model	HYUNDAI 9-Series Crawler Excavator R210LC-9, R210LC-9BC, R210LC-9BH, R210NLC-9, R220LC-9S(BRAZIL), R220LC-9S, R220LC-9SH, R220LC-9A, R220NLC-9A, R235LCR-9, R235LCR-9A, RB220LC-9S; 9-Series Wheel Excavator R210W-9, R210W-9A, R210W9AMH, R210W9-MH, R210W-9S; F-Series Crawler Excavator HX220L, HX220NL, HX235L; F-Series Wheel Excavator HW210
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic cylinder seal kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High sealing performance/ wear resistance
AppliC.A.Tion	Arm
Rod	100 MM
Bore	140 MM
Cylinder No.	31Q6-50400

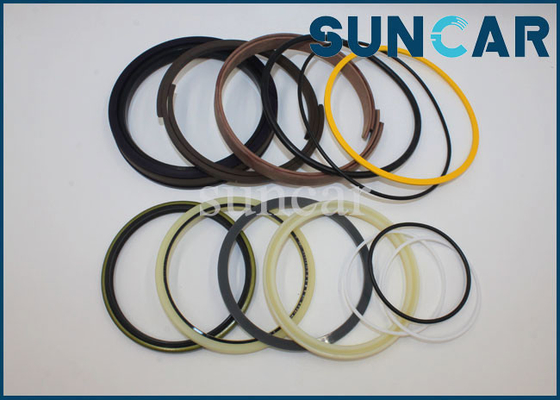

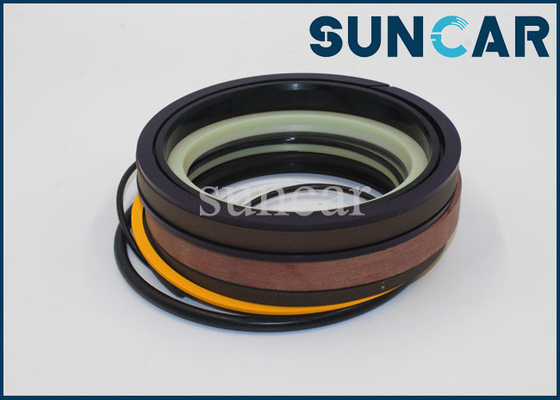

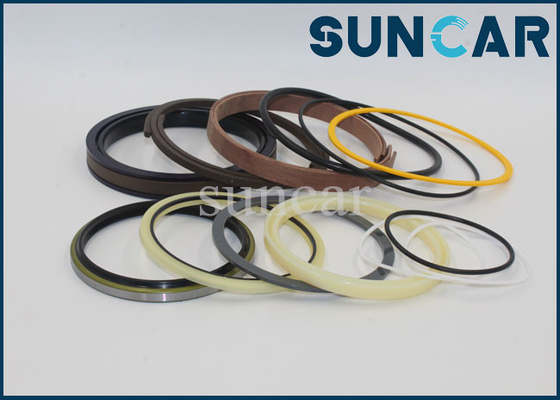

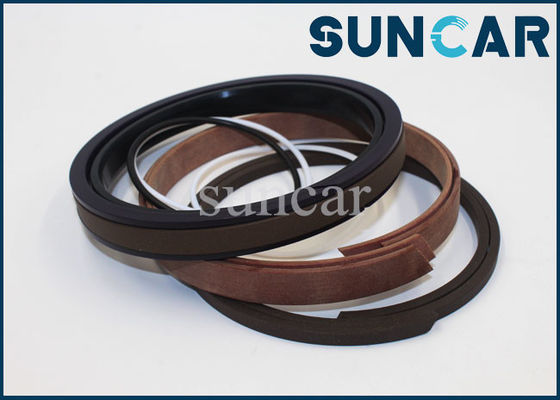

Product Show:

Product Description:

Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
Arm cylinder is the top one, and it's usually be called as top cylinder;
Bucket cylinder is the one that connects and controls the bucket.

Related Parts:

Pos.	Part No	Product Name	Qty
*.	31Q6-50131	ARM CYLINDER ASSY	[1]
*.	31Q6-56100	ARM CYLINDER ASSY	[1]
*-1.	31Y1-28630	ARM CYL SUB ASSY	[1]
*-1.	31Y1-28631	ARM CYL SUB ASSY	[1]
*-1.	31Y1-36980	ARM CYL SUB ASSY	[1]
1	31Y1-28640	TUBE ASSY	[1]
1	31Y1-36990	TUBE ASSY	[1]
2	31Y1-28700	ROD ASSY	[1]
2	31Y1-37040	ROD ASSY	[1]
N2-3.	@	SPEAR-CUSHION	[1]
3	31Y1-28740	GLAND	[1]
3	31Y1-28741	GLAND	[1]
4	S732-100040	BUSHING-DD2	[1]
5	Y191-107000	RING-SNAP	[1]
K6.	Y220-100013	SEAL-ROD	[1]
K7.	Y180-100020	RING-BACK UP	[1]
K8.	Y240-100012	RING-BUFFER	[1]
K9.	Y110-100011	WIPER-DUST	[1]
10	Y190-114000	RING-SNAP	[1]
K11.	S631-130004	O-RING	[1]
K12.	31YC-CP130	RING-BACK UP	[1]
13	31YC-26015	RING-CUSHION	[1]
13	31YC-28030	RING-CUSHION	[1]
14	31Y1-28770	PISTON	[1]
14	31Y1-28771	PISTON	[1]
K15.	Y420-140000	SEAL-PISTON	[1]
K15.	Y420-140002	SEAL-PISTON	[1]
K16.	Y310-140103	RING-WEAR	[2]
K17.	Y440-140202	RING-DUST	[2]
K18.	S632-075004	O-RING	[1]
K19.	S642-075003	RING-BACK UP	[2]
20	31YC-68050	NUT-LOCK	[1]
21	S114-100164	SCREW-SET	[1]
K22.	S632-140004	O-RING	[1]
23	S109-180904	BOLT-SOCKET	[14]
24	61Q6-97230	BUSHING-PIN	[2]
24	61Q6-97231	BUSHING	[2]
24	61QH-73030	BUSHING-PIN	[2]
24	61Q6-97220	BUSHING-PIN	[2]
24	61Q6-97221	BUSHING-PIN	[2]
24	61QH-73020	BUSHING-PIN	[2]
25	Y020-080000	SEAL-DUST,DLI,KPU	[4]
26	31YC-2A070	VALVE-CHECK	[1]
27	31YC-99071	SPRING-COIL	[1]
K28.	S631-014004	O-RING	[1]
29	P220-110103	PLUG-HEX	[1]
30	31Y1-29170	BAND ASSY-R	[1]
30	31Y1-29171	BAND ASSY-R	[1]
30-1.	31Y1-29180	BAND SUB ASSY	[1]
30-2.	31Y1-29190	BAND SUB ASSY	[1]
30-3.	S015-120452	BOLT-HEX	[2]
30-3.	S015-120456	BOLT-HEX	[2]
30-4.	S411-120002	WASHER-SPRING	[2]
30-4.	S411-120006	WASHER-SPRING	[2]
30-5.	S071-023430	U-BOLT	[1]
30-5.	S070-053446	U-BOLT	[1]
30-6.	S201-101002	NUT-HEX	[2]
30-6.	S201-101006	NUT-HEX	[2]
30-7.	S411-100002	WASHER-SPRING	[2]
30-7.	S411-100006	WASHER-SPRING	[2]
31	31Y1-29200	BAND ASSY-B	[1]
31	31Y1-29201	BAND ASSY-B	[1]
31-1.	31Y1-29210	BAND SUB ASSY	[1]
31-2.	31Y1-29190	BAND SUB ASSY	[1]
31-3.	S015-120452	BOLT-HEX	[2]
31-3.	S015-120456	BOLT-HEX	[2]
31-4.	S411-120002	WASHER-SPRING	[2]
31-4.	S411-120006	WASHER-SPRING	[2]
31-5.	S071-023430	U-BOLT	[1]
31-5.	S070-053446	U-BOLT	[1]
31-6.	S201-101002	NUT-HEX	[2]
31-6.	S201-101006	NUT-HEX	[2]
31-7.	S411-100002	WASHER-SPRING	[2]
31-7.	S411-100006	WASHER-SPRING	[2]
32	31Y1-29220	PIPE ASSY-R	[1]
32	31Y1-37070	PIPE ASSY-R	[1]
K33.	Y171-024004	O-RING	[1]
34	S107-120554	BOLT-SOCKET	[4]
34	S107-120556	BOLT-SOCKET	[4]
K.	31Y1-28790	SEAL KIT	[1]

Welcome OEM/ODM order. Please click "ask a question", or call us if you have a parts need that you do not see listed here.
