707-99-77140 7079977140 Arm Cylinder Seal Kit Komatsu Fits PC300LL-7E0 PC350LL-7E0 PC390LL-10
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 707-99-77140 Komatsu PC300LL-7E0, PC350LL-7E0, PC390LL-10, PC600-6A, PC600-6KJ, PC600-6, PC600-6K, PC600-7, PC600-7K, PC600LC-6A , PC600LC-7, PC600LC-6K, PC600LC-6 , PC650-6A, PC650-6, PC650-7, PC650LC-6, PC650LC-6A, PC650LC-7 |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Acceptable trial order |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Payment Terms | T/T, Paypal, Transfer,Western Union |
| Supply Ability | 5000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Delivery Time | Within 3 Days After Payment Received(public Holiday Excluded) | Part Number | 707-99-77140, 7079977140 |
|---|---|---|---|
| Product Name | Arm Cylinder Repair Kit | Availability | In Stock |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship | Condition | 100% Brand New |
| High Light | KOMATSU Seal Kit,707-99-77140 Service Kit,Arm Cylinder Repair Kit |
||
Product Description
707-99-77140 7079977140 Arm Cylinder Seal Kit Komatsu Fits PC300LL-7E0 PC350LL-7E0 PC390LL-10
| Products Name | 707-99-77140 Arm Cylinder Seal Kit |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type | Komatsu Excavator Replacement Parts |
| Model Number |
Komatsu PC300LL-7E0, PC350LL-7E0, PC390LL-10, PC600-6A, PC600-6KJ, PC600-6, PC600-6K, PC600-7, PC600-7K, PC600LC-6A, PC600LC-7, PC600LC-6K, PC600LC-6, PC650-6A, PC650-6, PC650-7, PC650LC-6, PC650LC-6A, PC650LC-7 |
| Payment Terms | Western Union, Paypal, TT, Transfer |
| Supply Ability | 5000 Piece/Pieces per Month |
| MOQ | 1 SET(negotiation) |
| Feature | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name | Suncar/ OEM |
| CertifiC.A.Tion | ISO9001:2000 |
| Shipping Mode | By air, by sea ,by express (DHL, Fedex, UPS ,TNT etc.) |
| Size | Standard Size |

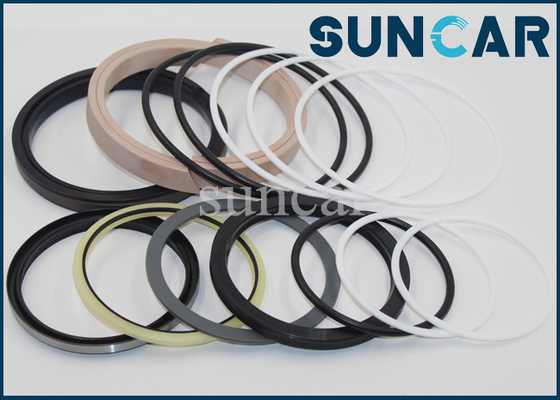

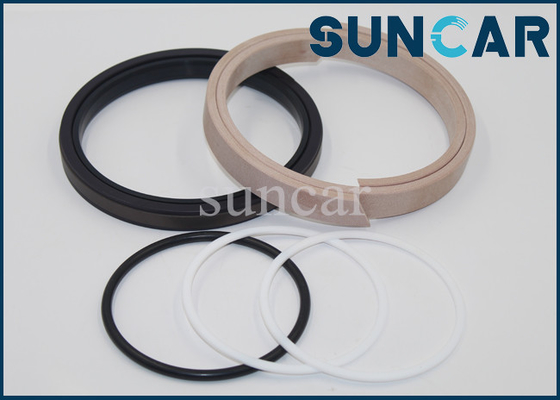

Product Show:

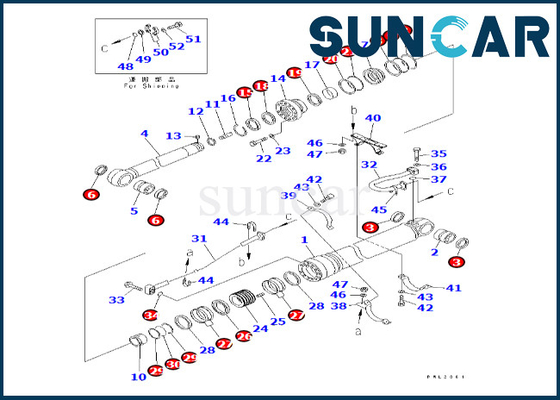

Related Part:
| POS. | Number | Name | Qty. |
| G-1 | 21M-63-X2121 | ARM CYLINDER GROUP | 1 |
| 21M-63-02121 | ARM CYLINDER ASSEMBLY | 1 | |
| 1 | 21M-63-62141 | • CYLINDER | 1 |
| 2 | 707-76-12150 | • BUSHING | 1 |
| 3 | 07145-00120 | • SEAL,DUST (KIT) | 2 |
| 4 | 21M-63-62121 | • ROD | 1 |
| 5 | 707-76-12520 | • BUSHING | 1 |
| 6 | 07145-00125 | • SEAL,DUST (KIT) | 2 |
| 7 | 707-71-32920 | • COLLAR | 1 |
| 8 | 707-35-92020 | • RING,BACK-UP (KIT) | 2 |
| 9 | 07000-15190 | • O-RING (KIT) | 1 |
| 10 | 707-71-61500 | • PLUNGER | 1 |
| 11 | 707-71-70310 | • PLUNGER | 1 |
| 12 | 04260-00952 | • BALL | 11 |
| 13 | 707-71-91230 | • CAP | 1 |
| 14 | 707-27-20960 | • HEAD | 1 |
| 15 | 198-63-93170 | • SEAL,DUST (KIT) | 1 |
| 16 | 07179-14160 | • RING,SNAP | 1 |
| 17 | 707-52-91170 | • BUSHING | 1 |
| 18 | 707-51-14080 | • PACKING,ROD (KIT) | 1 |
| 19 | 707-51-14630 | • RING,BUFFER (KIT) | 1 |
| 20 | 707-35-92020 | • RING,BACK-UP (KIT) | 1 |
| 21 | 07000-15190 | • O-RING (KIT) | 1 |
| 22 | 01011-82705 | • BOLT | 12 |
| 23 | 01643-32780 | • WASHER | 12 |
| 24 | 707-36-20450 | • PISTON | 1 |
| 25 | 01310-01232 | • SCREW | 1 |
| 26 | 707-44-20180 | • RING,PISTON (KIT) | 1 |
| 27 | 707-39-20820 | • RING,WEAR (KIT) | 4 |
| 28 | 707-44-20910 | • RING | 2 |
| 29 | 07001-05130 | • RING,BACK-UP (KIT) | 2 |
| 30 | 07000-15130 | • O-RING (KIT) | 1 |
| 31 | 21M-63-62172 | TUBE | 1 |
| 32 | 21M-63-62182 | TUBE | 1 |
| 33 | 01435-01055 | BOLT | 4 |
| 34 | 07000-13035 | O-RING (KIT) | 1 |
| 35 | 01010-81450 | BOLT | 4 |
| 36 | 01643-31445 | WASHER | 4 |
| 37 | 07000-13048 | O-RING | 1 |
| 38 | 707-88-21180 | BRACKET | 1 |
| 39 | 707-88-96110 | BAND | 1 |
| 40 | 21M-63-62192 | BRACKET | 1 |
| 41 | 707-88-96110 | BAND | 1 |
| 42 | 01010-81240 | BOLT | 8 |
| 43 | 01643-51232 | WASHER | 8 |
| 44 | 07283-23442 | CLIP | 2 |
| 45 | 07283-34346 | CLIP | 1 |
| 46 | 01643-31032 | WASHER | 6 |
| 47 | 01599-01011 | NUT | 6 |
| 48 | 07000-13038 | O-RING | 2 |
| 49 | 07378-11210 | HEAD | 2 |
Precautions:
1. Select the appropriate seal material and hydraulic oil, as well as the adaptability to the working temperature and the compatibility of the oil.
2. The geometric position accuracy (concentricity) of the sliding parts relative to the seal is high, the material is good (such as hard chrome plating) and the surface roughness is fine, which can prolong the service life.
(1) For oil seals used in hydraulic pumps and motor journals, it is not only required that the roughness of the sliding surface be within Ra of 0.25m, but also that the surface should be plated with hard chrome, and the oil seal lip should be properly adjusted according to the specific situation during specific use. The radial spring force makes it moderately tight, and a mounting sleeve or a thin gasket should be used to protect the sealing ring during installation to prevent the lip from rolling and twisting, causing the spring to slip out.
(2) The inner surface of the hydraulic cylinder is usually processed by rolling, which not only improves the surface roughness, but also makes the surface hardened by cold work, which is beneficial to prolong the service life of the sealing ring. In addition, the pressure used, the length and type of the sliding surface also have a great influence on the service life. Therefore, the "regular inspection" time should be decided according to these conditions.
(3) The sealing surface is required to be well lubriC.A.Ted to prevent dirt from invading. The use of fluids that meet the specified cleanliness levels and the correct installation method are also necessary conditions.
