| Brand Name: | SUNCAR |
| Model Number: | 20T-63-76105 Komatsu PC40-1 PC40-2 |
| MOQ: | Acceptable trial order |
| Price: | Negotiation |
| Packaging Details: | PP bag inside, carton box outside |
| Payment Terms: | T/T, Paypal, Transfer,Western Union |
Bucket Cylinder Repair Kit 20T6376105 20T-63-76105 Bucket Cylinder Seal Kit For PC40-1 PC40-2 Komatsu
| Products Name | 20T-63-76105 Bucket Cylinder Repair Kit |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type | Komatsu Excavator Replacement Parts |
| Model Number | Komatsu PC40-1 PC40-2 |
| Payment Terms | Western Union, Paypal, TT, Transfer |
| Supply Ability | 4000 Piece/Pieces per Month |
| MOQ | 1 SET(negotiation) |
| Feature | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name | Suncar/ OEM |
| CertifiC.A.Tion | ISO9001:2000 |
| Shipping Mode | By air, by sea ,by express (DHL, Fedex, UPS ,TNT etc.) |
| Size | Standard Size |

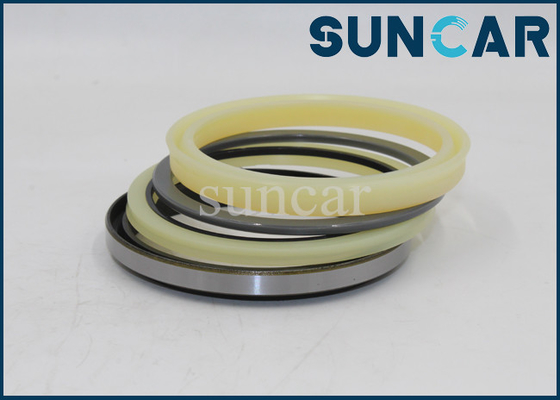

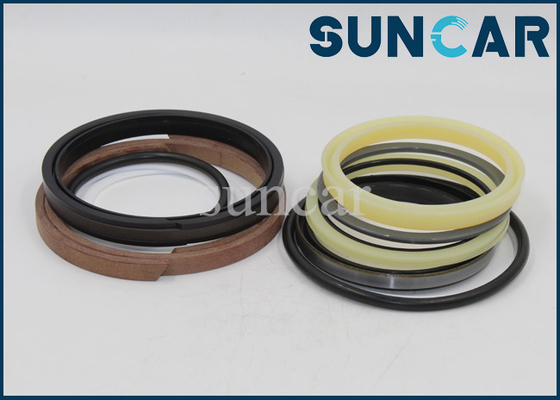

Product Show:

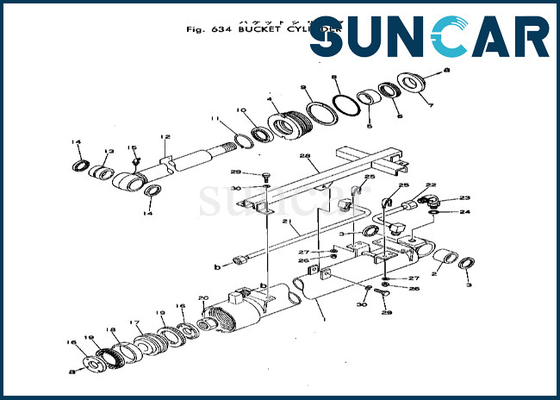

Related Part:
| POS. | Number | Name | Qty. |
| 20T-63-76105 | CYLINDER ASSEMBLY | 1 | |
| 1 | 20T-63-76143 | • CYLINDER | 1 |
| 2 | 07143-10405 | • BUSHING | 1 |
| 3 | 07145-00045 | • SEAL,DUST | 2 |
| 4 | 707-29-90500 | • HEAD,CYLINDER | 1 |
| 5 | 07177-05530 | • BUSHING | 1 |
| 6 | 707-51-55110 | • PACKING,ROD | 1 |
| 7 | 707-57-55530 | • RETAINER | 1 |
| 8 | 07000-12105 | • O-RING | 1 |
| 9 | 101-63-81230 | • RING,BACK-UP | 1 |
| 10 | 707-56-55510 | • SEAL,DUST | 1 |
| 11 | 07179-00077 | • RING,SNAP | 1 |
| 12 | 20T-63-76120 | • ROD,PISTON | 1 |
| 13 | 07144-10405 | • BUSHING | 1 |
| 14 | 07145-00045 | • SEAL,DUST | 2 |
| 15 | 07020-00675 | • FITTING,GREASE | 1 |
| 16 | 707-40-90310 | • RETAINER | 2 |
| 17 | 201-63-26170 | • PISTON | 1 |
| 18 | 07155-00925 | • RING,WEAR | 1 |
| 19 | 707-42-90012 | • PACKING,PISTON | 2 |
| 20 | 07165-13638 | • NUT | 1 |
| 21 | 20T-63-76180 | • TUBE | 1 |
| 22 | 20--63-76190 | • TUBE | 1 |
| 23 | 07235-10315 | • ELBOW | 1 |
| 24 | 07002-12034 | • O-RING | 1 |
| 25 | 07283-21529 | • CLIP | 2 |
| 26 | 01598-00809 | • NUT | 4 |
| 27 | 01643-30823 | • WASHER | 4 |
| 28 | 20T-62-13450 | • COVER | 1 |
| 29 | 01010-31025 | • BOLT | 6 |
| 30 | 01602-01030 | • WASHER,SPRING | 6 |
Product Description:
Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
Arm cylinder is the top one, and it's usually be called as top cylinder;
Bucket cylinder is the one that connects and controls the bucket.
Storage Precautions:
When storing seals, please pay attention to the following items:
Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
Do not place the seal near the motor or where ozone is generated.
Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.
|
|
