07012-10075 0701210075 High-quality Oil Seal For CS360SD-2 2CS360-1 D40A-1 Komatsu
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | 07012-10075 Komatsu CS360SD-2, 2CS360-1, D40A-1, D68ESS-12, D70LE-12, D65PX-12, D65PX-12, D85ESS-2A, D85ESS-2, D85E-SS, D85ESS-2, D50A-18, 1D50P-17, D50P-16, D50P-15, D50A-16, D50A-17, D41PF-6, D41PF-6K, D41P-6, D41P-6K, D41E6T, D41E-6, D41E-6K, D40PL-1, D |
Minimum Order Quantity | Acceptable trial order |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | T/T, Paypal, Transfer,Western Union |
Supply Ability | 4000 set per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPart Numberf | 07012-10075, 0701210075 | Product Name | Oil Sea |
---|---|---|---|
Payment Terms | Western Union, Paypal, TT, Transfer | Feature | Oil & High Pressure & High Temperature Resistant |
CertifiC.A.Tion | ISO9001:2000 | Shipping Mode | By Air, By Sea ,by Express (DHL, Fedex, UPS ,TNT Etc.) |
High Light | KOMATSU Oil Seal,07012-10075 Oil Seal,07012-10075 Oil Seal |
07012-10075 0701210075 High-quality Oil Seal Komatsu For CS360SD-2 2CS360-1 D40A-1
Product Name | 07012-10075 0701210075 Oil Seal |
Model Number |
Komatsu CRAWLER STABILIZERS CS360SD-2, CS360-1, BULLDOZERS D40A-1, D68ESS-12, D70LE-12, D65PX-12, D65PX-12, D85ESS-2A, D85ESS-2, D85E-SS, D85ESS-2, D50A-18, 1D50P-17, D50P-16, D50P-15, D50A-16, D50A-17, D41PF-6, D41PF-6K, D41P-6, D41P-6K, D41E6T, D41E-6, D41E-6K, D40PL-1, D61E-12, D61EX-12, D53S-16, D50S-15, D50PL-17, D50P-18, D50PL-16, D65P-12, D65EX-12, D65E-12, D61PX-12, DUMP TRUCKS HD205-3, HD200D-3, HD200-2, HD180-4, WHEEL STABILIZERS GS360-1, GS360-2, GRADERS GD405A-1, GD623A-1, GD625A-1, 3GD611A-1 ROAD CUTTERS GC380-1, GC380F-1, |
Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
Brand | SUNCAR/OEM |
MOQ | Negotiation |
Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
Delivery Time | Within 3 days after payment received(public holiday excluded) |
Availability | In Stock |
Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
AppliC.A.Tion | Komatsu Wheel Loader |
Condition | 100% Brand New |
After-sales Service | Online support |
Related parts | Boom Cylinder Seal Kit, Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
Supply Ability | 4000 Piece/Pieces per Month |

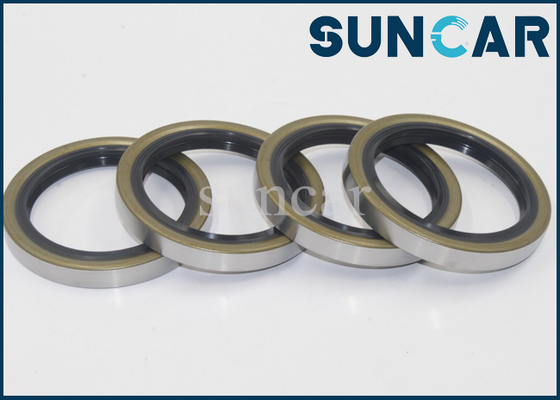

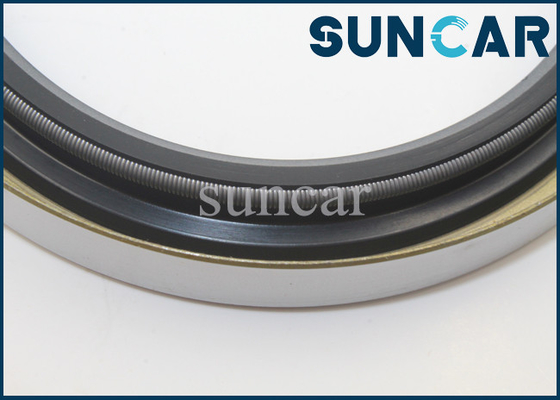

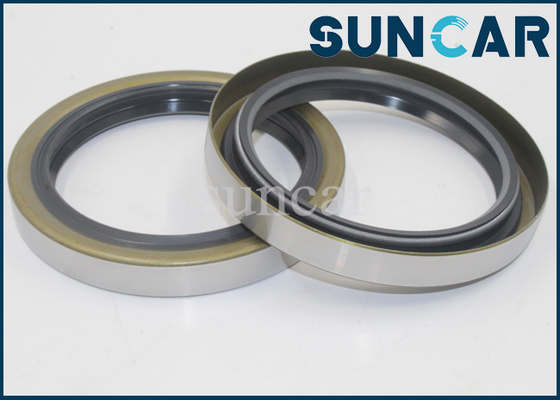

Product Show:
Precautions:
1. Select the appropriate seal material and hydraulic oil, as well as the adaptability to the working temperature and the compatibility of the oil.
2. The geometric position accuracy (concentricity) of the sliding parts relative to the seal is high, the material is good (such as hard chrome plating) and the surface roughness is fine, which can prolong the service life.
(1) For oil seals used in hydraulic pumps and motor journals, it is not only required that the roughness of the sliding surface be within Ra of 0.25m, but also that the surface should be plated with hard chrome, and the oil seal lip should be properly adjusted according to the specific situation during specific use. The radial spring force makes it moderately tight, and a mounting sleeve or a thin gasket should be used to protect the sealing ring during installation to prevent the lip from rolling and twisting, causing the spring to slip out.
(2) The inner surface of the hydraulic cylinder is usually processed by rolling, which not only improves the surface roughness, but also makes the surface hardened by cold work, which is beneficial to prolong the service life of the sealing ring. In addition, the pressure used, the length and type of the sliding surface also have a great influence on the service life. Therefore, the "regular inspection" time should be decided according to these conditions.
(3) The sealing surface is required to be well lubriC.A.Ted to prevent dirt from invading. The use of fluids that meet the specified cleanliness levels and the correct installation method are also necessary conditions.
Related Part:
POS. | Number | Name | Qty. |
1 | 262-19-11323 | SHAFT | 1 |
2 | 232-14-61120 | COVER | 1 |
3 | 07012-10075 | SEAL,OIL | 1 |
4 | 232-14-61130 | GASKET | 1 |
5 | 01010-51230 | BOLT | 4 |
6 | 01602-21236 | WASHER,SPRING | 4 |
7 | 263-19-11170 | COUPLING | 1 |
8 | 262-19-11610 | HOLDER | 1 |
9 | 07000-15048 | O-RING | 1 |
10 | 01010-51240 | BOLT | 2 |
11 | 262-19-11620 | PLATE | 1 |
12 | 06040-06311 | BEARING | 1 |
13 | 262-19-11330 | GEAR | 1 |
14 | 262-19-11340 | SPACER | 1 |
15 | 06040-06309 | BEARING | 1 |
16 | 01530-04212 | NUT | 1 |
17 | 01658-24223 | WASHER | 1 |
18 | 263-19-11130 | FLANGE | 1 |
19 | 262-19-11230 | GASKET | 1 |
20 | 01010-51035 | BOLT | 4 |
21 | 01602-21030 | WASHER,SPRING | 4 |
22 | 263-19-11150 | COUPLING | 1 |
23 | 04025-00332 | PIN,SPRING | 1 |
24 | 263-19-11160 | GASKET | 1 |
25 | 01010-50830 | BOLT | 2 |
26 | 01602-20825 | WASHER,SPRING | 2 |
27 | 263-19-11180 | GEAR | 1 |
28 | 06040-06214 | BEARING | 2 |
29 | 262-19-11291 | COVER | 1 |
30 | 262-19-11281 | GASKET | 1 |
31 | 01010-51030 | BOLT | 6 |
32 | 01602-21030 | WASHER,SPRING | 6 |
33 | 263-60-11120 | PUMP ASSEMBLY,HYDRAULIC | 1 |
