Brand Name: | SUNCAR |
Model Number: | 208-63-62100 2086362100 Komatsu PC400-3, PC400LC-3 |
MOQ: | Acceptable trial order |
Price: | Negotiation |
Packaging Details: | PP bag inside, carton box outside |
Payment Terms: | T/T, Paypal, Transfer,Western Union |
Komatsu Arm Cylinder Service Kit 208-63-62100 2086362100 Arm Cylinder Seal Kit For PC400-3 PC400LC-3
Products Name | 208-63-62100 2086362100 Arm Cylinder Service Kit |
Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
Model Number | Komatsu PC400-3, PC400LC-3 |
Sample | Available |
Payment Terms | Western Union, Paypal, TT, Transfer |
Supply Ability | 5000 Piece/Pieces per Month |
MOQ | 1 SET(negotiation) |
Feature | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
Brand Name | Suncar/ OEM |
CertifiC.A.Tion | ISO9001:2000 |
Shipping Mode | By air, by sea ,by express (DHL, Fedex, UPS ,TNT etc.) |
Size | Standard Size |

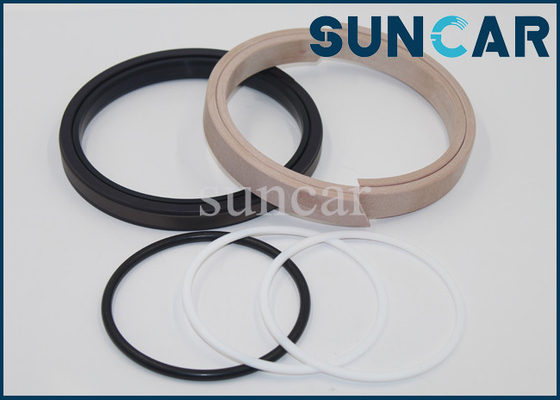

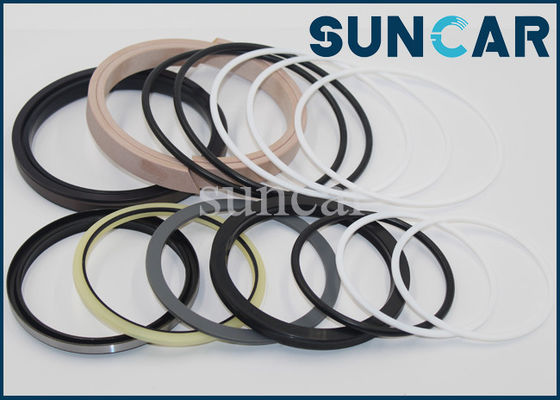

Product Show:
Related Part:

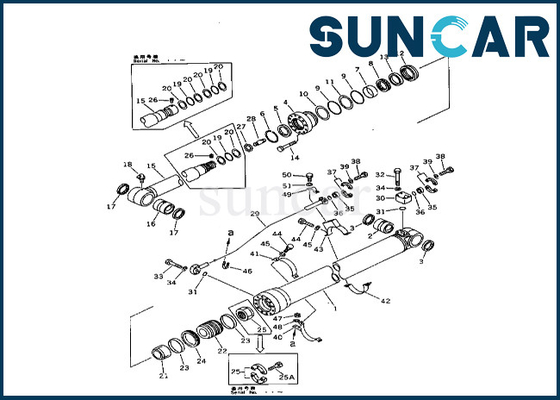

POS. | Number | Name | Qty. |
208-63-62100 | ARM CYLINDER ASSEMBLY | 1 | |
1 | 208-63-62140 | • CYLINDER | 1 |
2 | 707-76-11130 | • BUSHING | 1 |
3 | 07145-00110 | • SEAL,DUST | 2 |
4 | 707-28-18370 | • HEAD,CYLINDER | 1 |
5 | 195-63-93170 | • SEAL,DUST | 1 |
6 | 707-75-12010 | • RING,SNAP | 1 |
7 | 07177-01240 | • BUSHING | 1 |
8 | 707-51-12110 | • PACKING,ROD | 1 |
9 | 07000-15175 | • O-RING | 2 |
10 | 707-35-91850 | • RING,BACK-UP | 1 |
11 | 07001-05175 | • RING,BACK-UP | 1 |
12 | 707-71-31250 | • COLLAR | 1 |
13 | 707-71-11250 | • RING | 1 |
14 | 01010-52475 | • BOLT | 12 |
15 | 208-63-62122 | • ROD,PISTON | 1 |
208-63-62121 | • ROD,PISTON | 1 | |
208-63-62120 | • ROD,PISTON | 1 | |
16 | 707-76-11130 | • BUSHING | 1 |
17 | 07145-00110 | • SEAL,DUST | 2 |
18 | 07020-00900 | • FITTING,GREASE | 1 |
19 | 07000-12100 | • O-RING | 2 |
07000-12095 | • O-RING | 1 | |
20 | 707-35-52940 | • RING,BACK-UP | 4 |
07001-02095 | • RING,BACK-UP | 2 | |
21 | 707-71-51550 | • PLUNGER | 1 |
707-71-51250 | • PLUNGER | 1 | |
22 | 707-36-18250 | • PISTON | 1 |
707-36-18220 | • PISTON | 1 | |
23 | 707-39-18820 | • RING,WEAR | 2 |
07156-01822 | • RING,WEAR | 2 | |
24 | 707-44-18180 | • RING,PISTON | 1 |
707-44-18080 | • RING,PISTON | 1 | |
25 | 707-40-18870 | • SPACER | 2 |
19M-63-52271 | • NUT | 1 | |
25A | 01252-31455 | • BOLT | 6 |
26 | 707-71-91040 | • SCREW | 1 |
209-63-66290 | • SCREW | 1 | |
27 | 04260-00952 | • BALL | 11 |
28 | 707-71-50351 | • PLUNGER | 1 |
29 | 208-63-62170 | • TUBE | 1 |
30 | 20D-62-17860 | • ELBOW | 1 |
31 | 07000-13035 | • O-RING | 2 |
32 | 01010-51070 | • BOLT | 4 |
33 | 01010-51060 | • BOLT | 4 |
34 | 01602-21030 | • WASHER,SPRING | 8 |
35 | 07378-11000 | • HEAD | 2 |
36 | 07000-13032 | • O-RING | 2 |
37 | 07371-31049 | • FLANGE,SPLIT | 4 |
38 | 07372-21035 | • BOLT | 8 |
07372-21030 | • BOLT | 8 | |
39 | 01643-51032 | • WASHER | 8 |
01602-21030 | • WASHER,SPRING | 8 | |
40 | 707-88-99850 | • BAND | 1 |
41 | 707-88-99600 | • BAND | 1 |
42 | 707-88-99840 | • BAND | 1 |
43 | 707-88-99830 | • BAND | 1 |
44 | 01010-51240 | • BOLT | 4 |
45 | 01602-21236 | • WASHER,SPRING | 4 |
46 | 07283-23442 | • CLIP | 2 |
47 | 01599-01011 | • NUT | 2 |
48 | 01643-31032 | • WASHER | 2 |
49 | 07282-03411 | • CLAMP | 1 |
50 | 01010-51025 | • BOLT | 2 |
51 | 01602-21030 | • WASHER,SPRING | 2 |
FAQ:
1. What should I do if I only know the excavator model but cannot provide the excavator number and model?
A: If possible, you can send us pictures of old products, nameplates or sizes for reference.
2. How to pay for the order?
A: We can receive payment by T/T, Western Union, Paypal, bank transfer.
3. When will I receive the order after placing the order?
A: After confirming your payment, we will send the goods within 3 days; if there is no stock, we will inform you before placing the order.
4. What should I do if there is a problem with the product?
A: First of all, I have confidence in the quality of our products, if you really find something wrong, please provide us with pictures and we will check.
5. What is your main product?
A: We specialize in the production of O-rings, reciproC.A.Ting rings, oil seals, piston seals, piston rod seals, and other hydraulic seals as well as hydraulic seal kits, such as boom/ arm/ bucket cylinder seal kits, center joint seal kits, hydraulic pump seals Kits, travel motor seal kits, swing motor seal kits, transmission seal kits, control valve seal kits, oil seals, floating seals, etc.
Company brief:
Guangzhou Suncar Construction Machinery Co., LTD., founded in 2014, is a foreign trade company specializing in the wholesale and retail of construction machinery seals. Its current business covers many regions at home and abroad.Over the years, we have focused on the innovation and development of manufacturing technology, and have a highly automated production and processing base, providing excavators, bulldozers and other equipment with high-quality sealing parts and accessories, one-stop solution to the maintenance problems of construction machinery.
Loose card always adhere to the "quality to build the core competitiveness, innovation to change the world" business philosophy, vigorously explore overseas markets, develop the science and solid brand strategy planning, on the basis of quality, each type of product made the instruction manual production technology, from raw material selection to each link of manufacturing and processing have strict standards, multilayer testing verifiC.A.Tion, to ensure product quality and performance in accordance with using the standard, size, model can accurately fit the corresponding mechanical equipment, machinery spare parts "made in China" quality feeling and the internationalization of the brand image.
