31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 31Y1-04031 HYUNDAI R130LC-3, R140LC-7 |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Acceptable trial order |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability | 600 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part No. | 31Y1-04031, 31Y104031 | Product Name | Blade Cylinder Service Kit |
|---|---|---|---|
| Rod | 70 MM | Bore | 100 MM |
| Sample | Available | Warranty | Unavailable |
| High Light | HYUNDAI Seal Kit,31Y1-04031 Repair Seal Kit,Blade Cylinder Service Kit |
||
Product Description

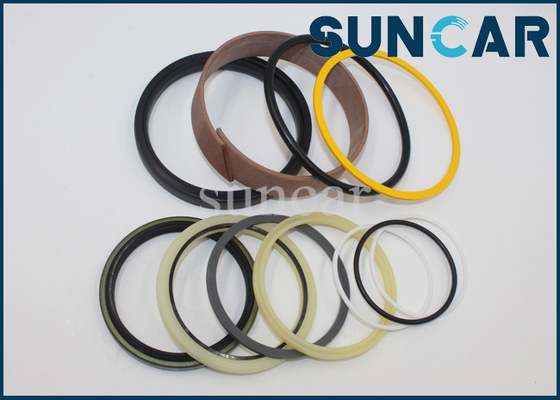

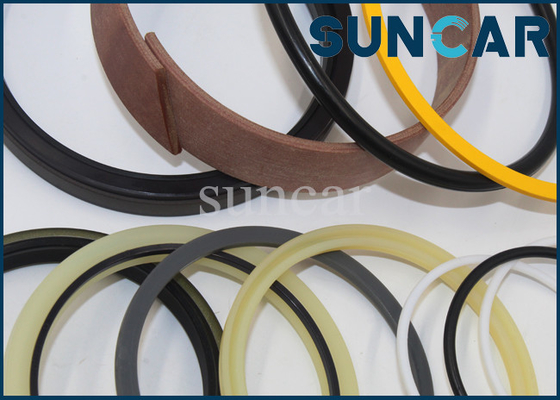

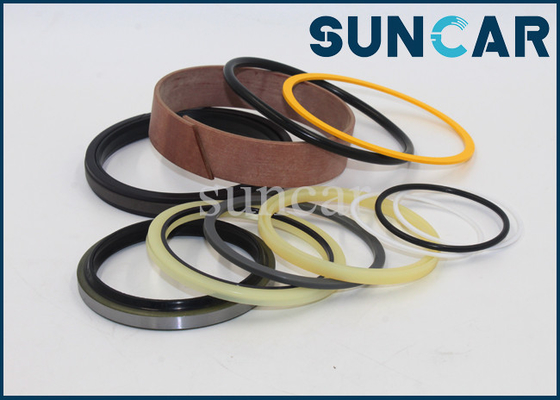

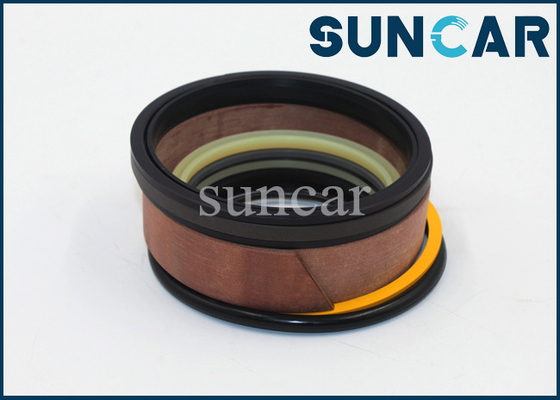

31Y1-04031 31Y104031 Blade Cylinder Service Kit Excavator Hyundai R130LC-3 R140LC-7 Repair Seal Kit
| Product Name | Blade Cylinder Service Kit |
| Part Number | 31Y1-04031, 31Y104031 |
| Model | HYUNDAI R130LC-3, R140LC-7 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Blade |
| Rod | 70 MM |
| Bore | 100 MM |
| Cylinder No. |
R140LCD-7 Blade LH Cylinder# 31E6-70020 R140LCD-7 Blade RH Cylinder# 31E6-70010 |
Related Parts:
| Pos. | Part No | Product Name | QTY |
| *. | 31E6-70020 | DOZER CYLINDER-LH | [1] |
| *. | 31N4-70210 | DOZER BLADE CYL-LH | [1] |
| *. | 31E6-70010 | DOZER CYLINDER-RH | [1] |
| *. | 31N4-70220 | DOZER BLADE CYL-RH | [1] |
| *-1. | 31E6-75020 | DOZER CYL SUB ASSY-LH | [1] |
| *-1. | 31E6-75010 | DOZER CYL SUB ASSY-RH | [1] |
| 1 | 31Y1-03870 | TUBE ASSY-LH | [1] |
| 1 | 31Y1-03880 | TUBE ASSY-RH | [1] |
| 2 | 31Y1-03930 | ROD ASSY | [1] |
| 3 | 31Y1-03960 | GLAND | [1] |
| 3 | 31Y1-03961 | GLAND | [1] |
| 4 | S731-070040 | BUSHING-DU | [1] |
| K5. | Y260-070000 | SEAL-STEP | [1] |
| K5. | Y240-070011 | RING-BUFFER | [1] |
| K6. | Y200-070011 | SEAL-ROD | [1] |
| K7. | Y180-070020 | RING-BACK UP | [1] |
| K8. | Y110-070011 | WIPER-DUST | [1] |
| 9 | Y190-084000 | RING-SNAP | [1] |
| K10. | S631-090004 | O-RING | [1] |
| K11. | S641-090003 | RING-BACK UP | [1] |
| 12 | 31Y1-03970 | PISTON | [1] |
| K13. | S632-055004 | O-RING | [1] |
| K14. | S642-055003 | RING-BACK UP | [2] |
| K15. | Y420-100000 | SEAL-PISTON | [1] |
| K16. | Y310-100400 | RING-WEAR | [1] |
| 17 | S113-080104 | SCREW-SET | [1] |
| 18 | Y890-015011 | BALL-STEEL | [1] |
| 19 | S109-160554 | BOLT-SOCKET | [8] |
| 29 | 31YC-12080 | BUSHING-PIN | [2] |
| 30 | Y000-070200 | SEAL-DUST | [4] |
| 20 | 31Y1-03980 | BAND ASSY | [1] |
| 20-1. | 31Y1-03990 | BAND SUB ASSY | [1] |
| 20-2. | S011-100352 | BOLT-HEX | [2] |
| 20-3. | S411-100002 | WASHER-SPRING | [4] |
| 20-4. | 31YC-37010 | CLAMP-PIPE | [1] |
| 20-5. | S011-100502 | BOLT-HEX | [2] |
| 26 | 31Y1-04010 | PIPE ASSY-RH | [1] |
| 26 | 31Y1-25000 | PIPE ASSY-RH | [1] |
| 26 | 31Y1-04000 | PIPE ASSY-LH | [1] |
| 26 | 31Y1-24990 | PIPE ASSY-LH | [1] |
| 27 | 31YC-49060 | PORT-FLANGE | [1] |
| 27 | 31YC-49200 | PORT-FLANGE | [1] |
| 28 | S107-080404 | BOLT-SOCKET | [8] |
| K31. | Y171-015004 | O-RING | [2] |
| K. | 31Y1-04031 | SEAL KIT | [1] |
| K. | 31Y1-04032 | SEAL KIT | [1] |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
- Have certain mechanical properties, such as tensile strength, elongation, etc.;
- Appropriate elasticity and hardness, small compression set;
- High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
- It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
- Good oxygen resistance and aging resistance, durable;
- Abrasion resistance, no corrosion to metal;
- Easy to shape and process, low price.
Advantages:
- Quality stability.
- Professional R&D team.
- We have all specifiC.A.Tions of our products and can meet customers’ product diversity needs.
- We prefer to accept your lower MOQ in order to relieve your purchasing stress.
- Our markets are widely distributed to North Europe, East Europe, West Europe, North America, South America, East Asia, Southeast Asia, Middle East, Africa, Australia, etc. and enjoy good reputation.
