31Y1-15040 31Y115040 Cylinder Service Kit Excavator Seal Repair Kit Fits Hyundai R290LC-7 R290LC7H R305LC-7

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Model Number 31Y1-15040 HYUNDAI R290LC-7, R290LC7H, R305LC-7
CertifiC.A.Tion ISO9001
Minimum Order Quantity Acceptable trial order
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P
Supply Ability 1500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Arm Cylinder Service Kit Part No. 31Y1-15040, 31Y115040
Warranty Unavailable Cylinder No. 31N8-50130
Rod 110 MM Bore 150 MM
High Light

HYUNDAI Seal Kit

,

31Y1-15040 Cylinder Service Kit

,

Excavator Seal Repair Kit

Leave a Message
Product Description



31Y1-15040 31Y115040 Cylinder Service Kit Excavator Seal Repair Kit Fits Hyundai R290LC-7 R290LC7H R305LC-7



Product Name Arm Cylinder Service Kit
Part Number 31Y1-15040, 31Y115040
Model Hyundai Crawler Excavator R290LC-7, R290LC7H, R305LC-7
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
C.A.Tegory Group Hydraulic cylinder seal kit, excavator service kits
Condition New, genuine new
Sample Available
Applicable Industries Building material shops, machinery repair shops, retail, construction work...
Feature High sealing performance/ wear resistance
AppliC.A.Tion Arm
Rod 110 MM
Bore 150 MM
Cylinder No. 31N8-50130



Order Process:

1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)

2. Quoting our competitive price for you

3. Place an order after approving the quotation or products

4. We will send Proforma Invoice or sales confirmation

5. You prepay by T/T or L/C or Western Union through bank

6. We will starting to produce after we get your kind payment

7. Packing

8. Shipping the goods to your(our)forwarder

9. Sending all doc for your custom clearance

10. Time to reorder



Basic Requirements For Sealing Materials:

  • The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
  • Have certain mechanical properties, such as tensile strength, elongation, etc.;
  • Appropriate elasticity and hardness, small compression set;
  • High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
  • It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
  • Good oxygen resistance and aging resistance, durable;
  • Abrasion resistance, no corrosion to metal;
  • Easy to shape and process, low price.



Related Parts:

Pos. Part No QTY Product Name
*. 31N8-50130 [1] ARM CYLINDER
*. 31N8-52130 [1] ARM CYLINDER ASSY
*-1. 31Y1-14900 [1] ARM CYLINDER SUB
1 31Y1-14910 [1] TUBE ASSY
2 31Y1-14960 [1] ROD ASSY
N20. @ [1] SPEAR-CUSHION
N21. @ [1] VALVE-CHECK
N22. @ [1] SPRING-COIL
N23. @ [1] RING-STOP
N3. 31Y1-14990 [1] GLAND
4 S732-110045 [1] BUSHING-DD2
5 Y191-117000 [1] RING-SNAP
K6. Y220-110011 [1] SEAL-ROD
K7. Y180-110020 [1] RING-BACK UP
K8. Y240-110013 [1] RING-BUFFER
K9. Y110-110011 [1] WIPER-DUST
10 Y190-126000 [1] RING-SNAP
K11. S631-140004 [1] O-RING
K12. S641-140003 [1] RING-BACK UP
13 31YC-23050 [1] RING-CUSHION
14 31Y1-15000 [1] PISTON
K15. S632-095004 [1] O-RING
K16. S642-095003 [2] RING-BACK UP
K17. Y420-150000 [1] SEAL-PISTON
K18. Y310-150003 [2] RING-WEAR
K19. Y440-150002 [2] RING-DUST
24 31YC-66080 [1] WASHER-LOCK
24 31YC-66081 [1] WASHER-LOCK
25 31YC-61142 [1] NUT-LOCK
25 31YC-61143 [1] NUT-LOCK
26 S109-200904 [12] BOLT-SOCKET
33 31YC-11161 [2] BUSHING-PIN
34 Y000-090000 [4] SEAL-DUST
27 31Y1-15010 [2] BAND ASSY
27 31Y1-15010 [1] BAND ASSY
27-1. 31Y1-15050 [1] BAND SUB ASSY
27-2. 31YC-31420 [1] BAND
27-3. S015-120452 [2] BOLT-HEX
27-4. S411-120002 [2] WASHER-SPRING
27-5. 31YC-37040 [1] CLAMP-PIPE
27-6. S015-120402 [2] BOLT-HEX
27-7. S411-120002 [2] WASHER-SPRING
28 31Y1-15020 [1] PIPE ASSY-R
29 31Y1-15030 [1] PIPE ASSY-B
K30. Y171-024004 [2] O-RING
31 S107-120554 [4] BOLT-SOCKET
32 S107-100554 [4] BOLT-SOCKET
35 31Y1-21920 [1] BAND ASSY-B
35-1. 31Y1-21930 [1] BAND SUB ASSEMBLY
35-2. 31YC-32240 [1] BAND
35-3. S015-120452 [1] BOLT-HEX
35-4. S411-120002 [1] WASHER-SPRING
35-5. S071-023430 [2] U-BOLT
35-6. S201-101002 [4] NUT-HEX
35-7. S411-100002 [4] WASHER-SPRING
K. 31Y1-15040 [1] SEAL KIT
K. 31Y1-18250 [1] SEAL KIT
N. @ [AR] NOT SUPPLIED PARTS



Product Show:

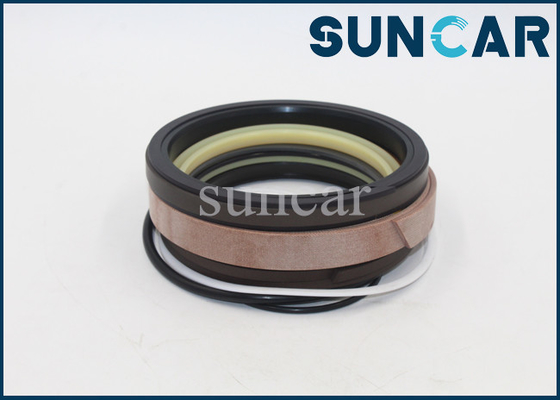

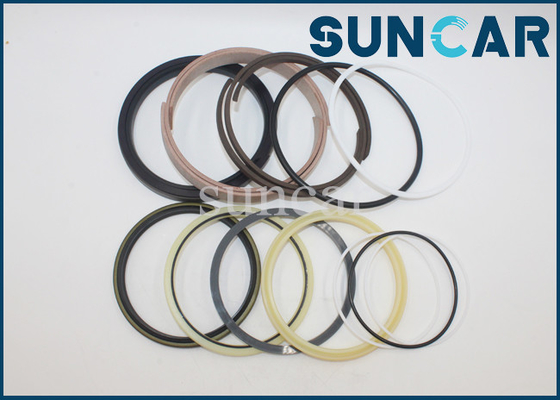

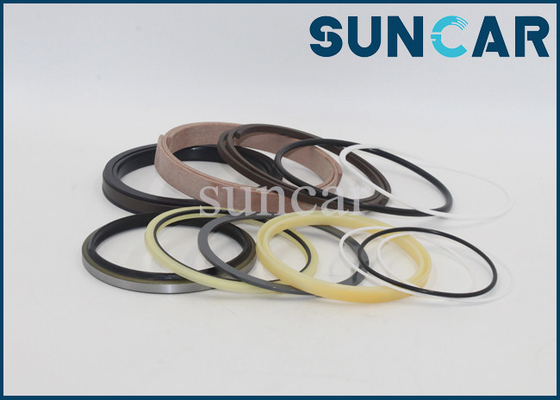

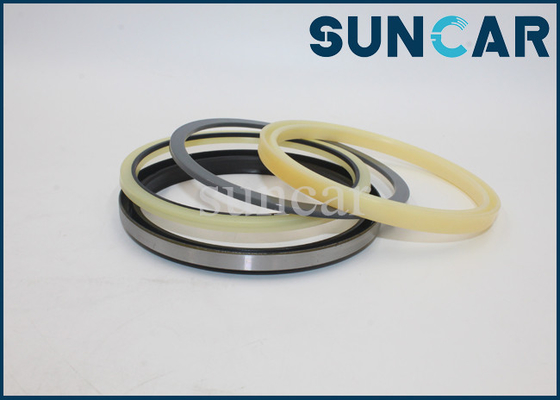

31Y1-15040 31Y115040 Cylinder Service Kit Excavator Seal Repair Kit Fits Hyundai R290LC-7 R290LC7H R305LC-7 0

31Y1-15040 31Y115040 Cylinder Service Kit Excavator Seal Repair Kit Fits Hyundai R290LC-7 R290LC7H R305LC-7 1
