Arm Sealing Kit Hydraulic Cylinder 31Y1-15045 Seal Kits For Models R290LC-7 R290LC7H R305LC-7 Hyundai
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 31Y1-15045 HYUNDAI R290LC-7, R290LC7H, R305LC-7 |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Acceptable trial order |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability | 1500 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Arm Cylinder Seal Kit | Part No. | 31Y1-15045, 31Y115045 |
|---|---|---|---|
| Cylinder No. | 31N8-50135 | Warranty | Unavailable |
| Rod | 110 MM | Bore | 150 MM |
| High Light | HYUNDAI Seal Kit,31Y1-15045 Excavator Seal Kits,Arm Sealing Kit Hydraulic Cylinder |
||
Product Description
Arm Sealing Kit Hydraulic Cylinder 31Y1-15045 Seal Kits For Models R290LC-7 R290LC7H R305LC-7 Hyundai
| Product Name | Arm Cylinder Seal Kit |
| Part Number | 31Y1-15045, 31Y115045 |
| Model | Hyundai Crawler Excavator R290LC-7, R290LC7H, R305LC-7 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
| Rod | 110 MM |
| Bore | 150 MM |
| Cylinder No. | 31N8-50135 |

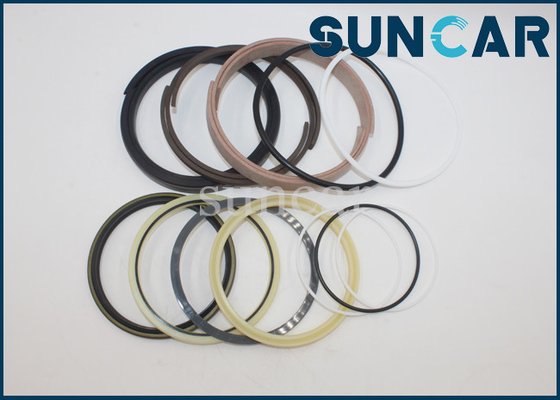

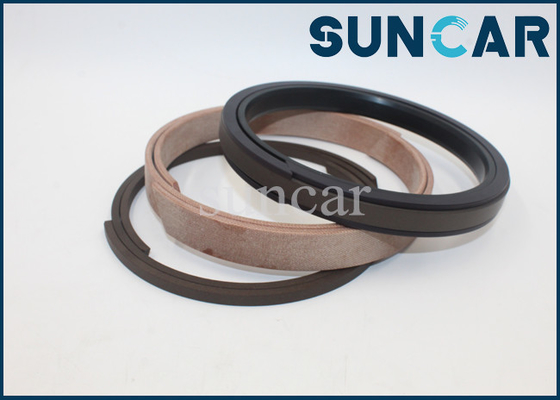

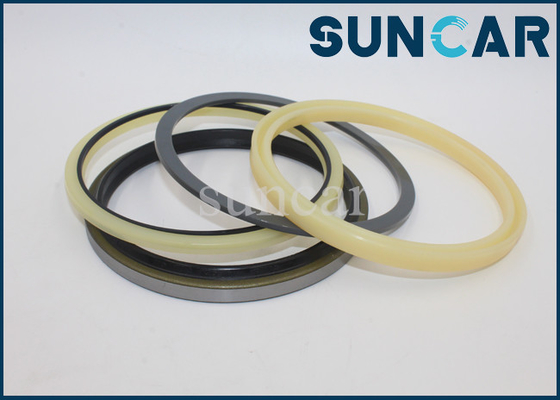

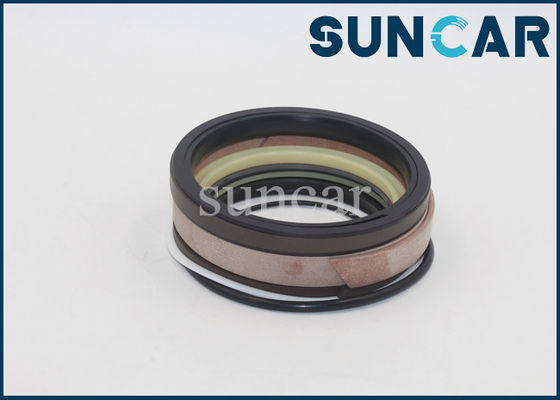

Product Show:
Seal ClassifiC.A.Tion:
- According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31N8-50135 | [1] | ARM CYLINDER |
| *. | 31N8-52135 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-14905 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-14915 | [1] | TUBE ASSY |
| 2 | 31Y1-14965 | [1] | ROD ASSY |
| N3. | 31Y1-14995 | [1] | GLAND |
| 4 | S732-110045 | [1] | BUSHING-DD2 |
| 5 | Y191-117000 | [1] | RING-SNAP |
| K6. | Y220-110011 | [1] | SEAL-ROD |
| K7. | Y180-110020 | [1] | RING-BACK UP |
| K8. | Y240-110013 | [1] | RING-BUFFER |
| K9. | Y110-110011 | [1] | WIPER-DUST |
| 10 | Y190-126000 | [1] | RING-SNAP |
| K11. | S631-140004 | [1] | O-RING |
| K12. | 31YC-BP140 | [1] | RING-BACK UP |
| 13 | 31YC-26100 | [1] | RING-CUSHION |
| 14 | 31Y1-15005 | [1] | PISTON |
| K15. | Y420-150000 | [1] | SEAL-PISTON |
| K16. | Y310-150003 | [2] | RING-WEAR |
| K17. | Y440-150002 | [2] | RING-DUST |
| K18. | S632-085004 | [1] | O-RING |
| K19. | S642-085003 | [2] | RING-BACK UP |
| 20 | 31YC-64070 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| 22 | S109-200904 | [12] | BOLT-SOCKET |
| 23 | 31YC-11161 | [2] | BUSHING-PIN |
| 24 | Y000-090000 | [4] | SEAL-DUST |
| 25 | 31YC-2A070 | [1] | VALVE-CHECK |
| 26 | 31YC-99071 | [1] | SPRING-COIL |
| K27. | S631-014004 | [1] | O-RING |
| 28 | P220-110103 | [1] | PLUG-HEX |
| 29 | 31Y1-15015 | [1] | BAND ASSY-R |
| 29-1. | 31Y1-15050 | [1] | BAND SUB ASSY |
| 29-2. | 31YC-31420 | [1] | BAND |
| 29-3. | S015-120452 | [2] | BOLT-HEX |
| 29-4. | S411-120002 | [2] | WASHER-SPRING |
| 29-5. | 31YC-37040 | [1] | CLAMP-PIPE |
| 29-6. | S015-120402 | [2] | BOLT-HEX |
| 29-7. | S411-120002 | [2] | WASHER-SPRING |
| 30 | 31Y1-21925 | [1] | BAND ASSY-B |
| 30-1. | 31Y1-21930 | [1] | BAND SUB ASSEMBLY |
| 30-2. | 31YC-32240 | [1] | BAND |
| 30-3. | S015-120452 | [1] | BOLT-HEX |
| 30-4. | S411-120002 | [1] | WASHER-SPRING |
| 30-5. | S071-023430 | [2] | U-BOLT |
| 30-6. | S201-101002 | [4] | NUT-HEX |
| 30-7. | S411-100002 | [4] | WASHER-SPRING |
| 31 | 31Y1-15025 | [1] | PIPE ASSY-R |
| 32 | 31Y1-15035 | [1] | PIPE ASSY-B |
| K33. | Y171-024004 | [2] | O-RING |
| 34 | S107-120554 | [8] | BOLT-SOCKET |
| K. | 31Y1-15045 | [1] | SEAL KIT |
| K. | 31Y1-18255 | [1] | SEAL KIT |
Contact us:
- We have more than 10 years experience in excavator parts, in addition to the items listed on the website, we also have a variety of excavator spare parts to choose from, if you have any questions or comments, feel free to contact us, we Will get back to you within 24 hours, thanks!
- Please make sure you order the correct parts for your excavator, if you have any questions about the parts you ordered, please provide us with the details, then we can verify the parts to avoid any wrong parts and returns.
